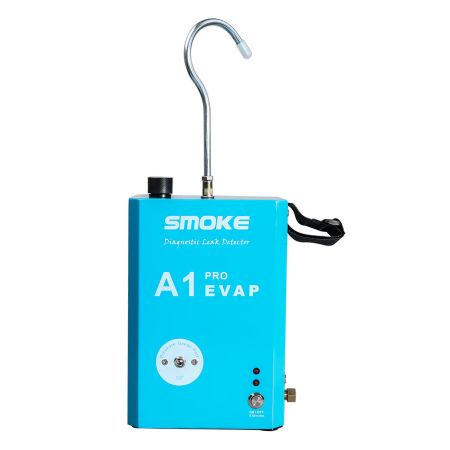

Smoke A1 Pro EVAP Diagnostic Leak Detector

Descriptions of Smoke A1 Pro EVAP Diagnostic Leak Detector

SMOKE A1 Pro EVAP is designed for quick detecting the leakage of pipe systems on Motorcycle / Cars / SUVs / Truck, such as air intake system, EVAP system, exhaust system, manifold, coolant tank, sealing, and fuel pipe, etc, but not suitable for components sensitive to smoke, pneumatic central lock system, lamp housing and cabin.

Smoke A1 Pro EVAP Diagnostic Leak Detector

Top 8 Reasons to Get Diagnostic Leak Detector

1. Your Scan Tools Can Only Do Half of the Work

Your scan tools help you acquire the knowledge about which sensor had got the sampled data out of range. But your scan tools won’t tell you the cause/reason of the fault, and where to find it. A Diagnostic Leak Detector will tell you where the problem is, which caused the sensors to get wrong data.

2. Over 60% of the DTCs Are Pressure Related

Sensors sample voltage, temperature and pressure, of all the DTCs that possibility generated, over 60% are pressure related,

regardless it’s an air pressure DTC, or an oil pressure DTC. With a Diagnostic Leak Detector, these DTCs are much easier to erase.

3. Increase Income Per Service

By finding more hidden problems in a vehicle and proving it to the vehicle owner necessity of extra service, a Diagnostic Leak Detector will help increase your income per service.

4. Help Reduce Labor Cost

A Diagnostic Leak Detector helps technicians to locate problems currently in short time, avoid possibility of wrong diagnosis of the vehicle.

5. Enhance Capability of More Service Calls

By reducing your service time cost, a Diagnostic Leak Detector makes your workshop capable of more service calls.

6. Ease the Pain of Finding Leaks

The vehicle driven in the workshop with engine running hot, which put technicians in a bad working condition, with a Diagnostic Leak Detector, technician don’t have to touch the hot surface, reduce possibility of getting hurt in work.

7. More Professional in Facing Customers

Customers may feel sorry for you if you jump onto and off the car to find problems. A Diagnostic Leak Detector will make technician’s work more professional with convincing result.

8. Small Investment, Big Turnout

A Diagnostic Leak Detector is affordable for all level of workshops, and the equipment will pay for itself back by a few jobs.

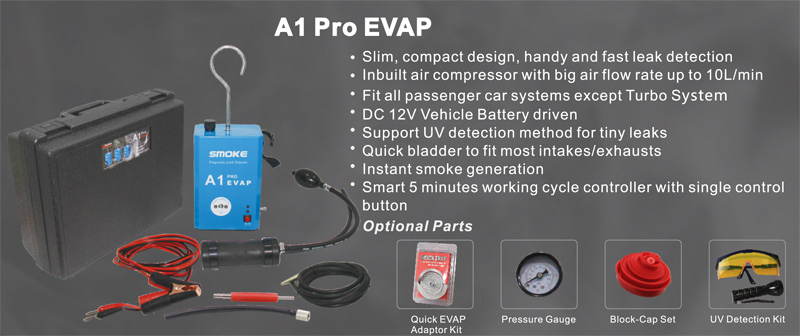

Compact Design, A1 Pro Series are the smallest Diagnostic Leak Detector in the world

Instant smoke generation

Super easy in operation, only a Start/Stop button.

Smartly controlled 5 minutes working cycle

Scientifically defined pressure output for leak check on EVAP system

Fit all passenger car systems except Turbo system

Quick Bladder that fits every intake and exhaust

DC 12V vehicle battery driven

Inbuilt air compressor

Optional Pressure Gauge

Support UV detection method for tiny leaks as small as 0.01mm

Specifications:

Pressure: 9 Psi

Chemical Refill: 15ml

Smoke Flow: 10L/Min

Std. Pack: Main Unit, Intake Bladder, Plastic Carry Box

Power Supply: DC 12V VehicleBattery

Unit Dim:L10cmx W13cmx H21.5cm(without hanger)

Air Source: Inbuilt Air Compressor

Delivery Dim: L34.5cmx W27cmx H14cm

Optional Accessories:

Block-off Cap x 1 set

Pressure Gauge x 1pc

H.D.Bladder (8cm/3.2”–20cm/7.9”) x 1pc

UV Detection Kit x 1pc

Package Including:

1x Plastic Casing

1x Main Unit

1x Intake Bladder

1x Power Cords

1x Smoke Tube

1x EVAP Adaptor

1x Schneider valve Removal Tool

1x Hook

1x Manual
