All-Sun Automotive Cable Wire Short Open Digital Finder Car Repair Tool Tester Tracer Diagnose Tone Line Finderall-sun EM415pro

All-Sun EM415pro Automotive cable wire short open di-gital finder car repair tool tester tracer diagnose tone line finder

All-Sun EM415pro Specificastion:

Brand Name: All sun
Power Type: Battery-Powered
DIY Supplies: Electrical
With LCD Screen Or Not: Yes
Model Number: EM415pro
is_customized: Yes

All-Sun EM415pro Description:

This instrument is designed to identify and trace wires or ca-bles without damaging the insulation. You can also use it in
checking for short circuit and loacting open circuit and so on.There are a Sender and a Receiver included in the instrum-ent.

All-Sun EM415pro Introduction

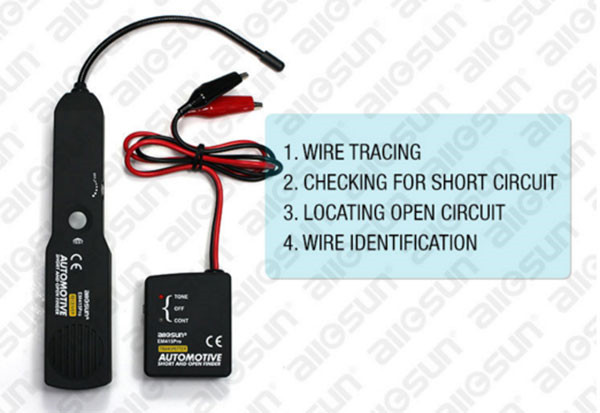

EM415pro OPEN & short dc circuit tester
This instrument is designed to identify and trace wires or cables without
damaging the insulation.You can also use it in checking for short circuit and locating open circuit and so on.
There are sender and a Re-ceiver included in the instrument.

All-Sun EM415pro Function:

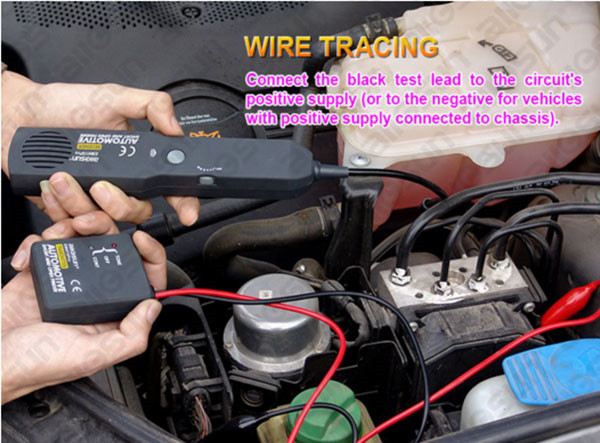

Tracing of wires is made possible even inside bundles, conduits, b-ehind panels, under carpets, upholstery, etc
Easy to use: simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector,
in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot
42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems
Operates on DC voltages from 6 to 42 volts
Internally protected against power surges and overloads
7" flexible probe allows reaching wires in congested places
Transmitter and Receiver LEDs show open or short circuit conditions
Adjustable sensitivity for all tracing situations
No wire piercing required, non-contact technology!

HOW TO USE THE PROBE?

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depe-
nding on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions. However,
for the best possible range the Receiver's probe tip (black cap) sh-ould be positioned perpendicular (at 90o) to the wire being traced
and either above or below it.





Package List:

1pc x EM415pro Automotive Short and Open Finder (Within a carry bag)
1pc x Instruction Manual
