Home › Products › Automotive diagnostic tools › VAG Dash CAN V5.14

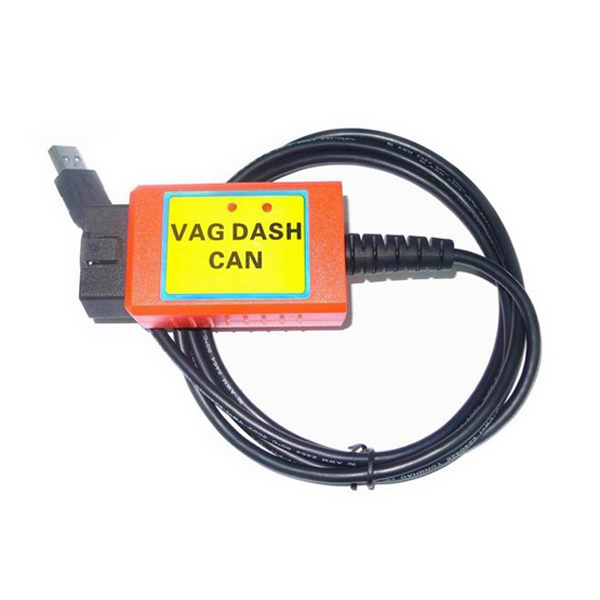

Large Image :VAG Dash CAN V5.14
VAG Dash CAN V5.14
VAG Dash CAN V5.14 can used on BOSCH EDC15,BOSCH EDC16,ME7.* /MED 9.5,ME7 CHANNELS,lbest offers VAG Dash CAN V5.14,if you need VAG Dash CAN V5.14,pls contact us.
VAG Dash CAN V5.14
VW / SEAT / SKODA
Please press the button as the picture show in order to read out the VDO instrument clusters of the last generation.
An example is the Golf Mark V from 2003 up to 06.2006.
Some SEAT and SKODA models are equipped with clusters of that type until MY 2009.
PASSAT
Please press this button in order to read out Passat B6.
In those cars you cannot get immobiliser information from the instrument clusters, since the immobiliser unit is part of the convenience module.
AUDI A3
Please press this button in order to read out AUDI A3 instrument clusters of the brand VDO.
AUDI A4
Please press this button in order to read out AUDI A4 instrument clusters BOSCH RB4.
PHAETON / TOUAREG
Please press this button in order to read out Phaeton and Touareg instrument clusters BOSCHRB4.
NEW BEETLE / AUDI TT
Please press this button in order to read out Magneti MarelliM73build into New Beetleand AUDI TT.
BOSCH EDC15
Diesel Control units are very often used since 1999. Those units cover up most of the diesel vehicles at VAG.
SEAT and SKODA equipped their cars some years longer with ecu´s of that kind.
BOSCH EDC16
Those Diesel Control units are built into cars since 2002. They are the most frequently use ECUs in Diesel Cars of the latest generation
ME7.* /MED 9.5
The engine ecu type BOSCH ME7.* was used in petrol cars such as Golf IV or Audi TT. You can read out following types of ecu´s: ME7.5, ME7.1, ME7.5.1, ME7.1.1.
The ecu ME7.1.1of the Golf V is not implemented yet
ME7CHANNELS
When you click on this button , you reach the EEprom adaption channels of the BOSCH ME7.* engine control unit.
Those are for example the SEL scaling and the idle speed offset.
IMMOBILISER BOXES
When you click on this button you can read out the login code from the single standing Immobiliser units. Whit boxes from Audi A4 with 12pin connector and boxes from LT. As well you can read out boxes from 1994-1998, but only when an adapted key is inserted into the lock.
Tags: VW , AUDI , Seat , skoda , immo box information reading tool , immo box information reader , immo , ECU reading tool , ECU programmer , eprom programmer , VAG DASH PROG , vagdashcan , vagdash can , vag com , VW diagnostic tool , Audi diagnostics , vag ecu programmer , VAG Dash CAN V5.14 ,
Wholesale Top quality Iprog+ Programmer BENZ ECOM DoIP Diagnostic and Programming Tool, DSP3 Odometer Correction Tool, VAS 5054A, GM Tech2, Scania VCI3, NEXIQ 2 USB Link, SBB VAG Pro, DP5 , SBB Key Programmer, wiTech MicroPod II, vocom 88890300, Renault CAN Clip. The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
