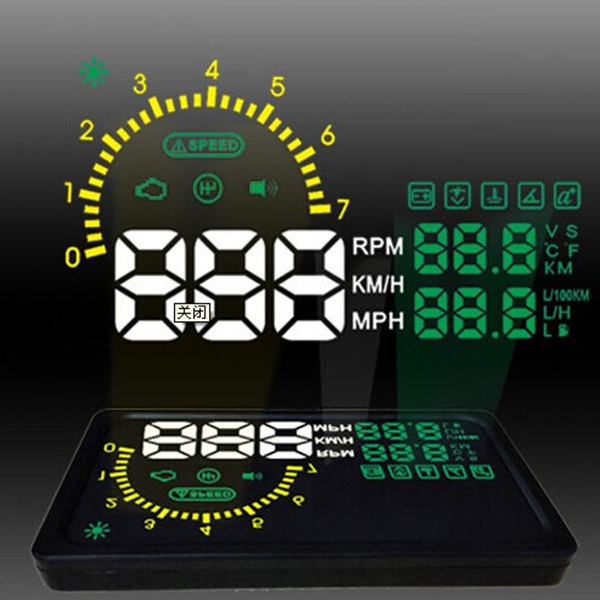

HUD is researched and developed for driving safety. Whether driving during the day, or driving at night and whether driving at high-speed,or driving at low speed, you do not have to look down at the instrument panel. HUD project the important car information (such as car speed, engine speed, water temperature, fuel consumption, etc.) onto the windshield. So when you are driving, you can easily control the car's vital information to reduce or avoid accidents or traffic accidents. At the same time, HUD can reduce your eye fatigue effectively so that you achieve the driving pleasure and driving safety perfect unity.

1. MPH鈹€Mile / hour

2. KM/H鈹€Kilometer/hour

3. RPM鈹€R /M, an engine speed

4. Parameter鈹€Including KM/H,RPM,MPH

5. Shifting reminding鈹€This Icon lights means you need to shift

6. Engine faulty鈹€This icon is on means the engine is faulty and needs to be immediately removed

7. USB interface鈹€OBDII cable connects to USB

8. Engine Speed鈹€This icon display engine speed, unit:*1000

9. Dial Switch鈹€Can be up, down, straight press

10. Photosensitive Icon鈹€It’s used to adjust the display brightness of HUD automatically

11. Speed Alarm鈹€When the car exceeds the speed limit, the icon flashes

12. Sound Icon鈹€This icon is lit, the sound switch is on

13. Parameter鈹€To display L / 100KM, L / H, the value of L

14. Parameter鈹€To display the value of V, S, 鈩? 鈩? KM

15. L 鈹€L shows the remaining oil, lights means you need to refueling the car

16. L/H鈹€Indicates fuel consumption per hour

17. L/100KM鈹€instantaneous fuel consumption per one hundred kilometers

18. KM鈹€This icon is on, you can know the car mileage

19. °C °F鈹€show the water temperature of the car or Fahrenheit respectively

20. [ ]鈹€These icons show the current display content of voltage, throttle, water

temperature, ignition timing, one hundred kilometers acceleration respectively

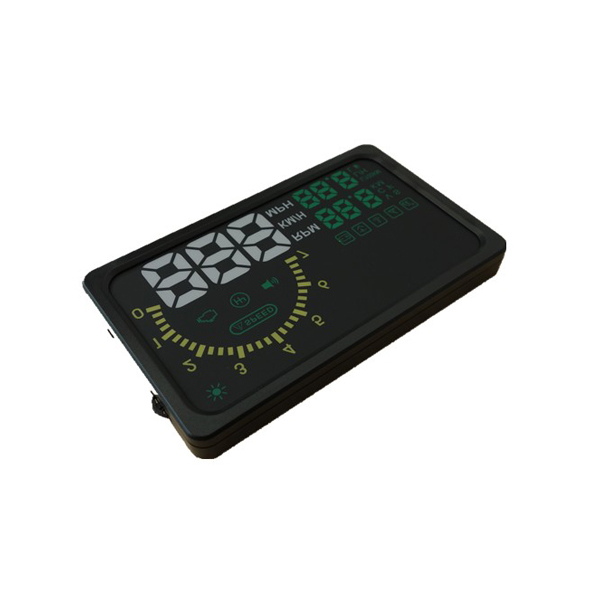

New 6" LED OBD-II HUD Head Up Display I5 Main Features:

1) Detecting car’s OBDII interface automatically and all car with OBD II or EUOBD are OK, plug and play;

2) Car speed, engine speed, water temperature, voltage / throttle position / Ignition angle / one-hundred-kilometer acceleration time, instant fuel consumption, average fuel consumption, mileage, fuel shortage reminding, engine faulty, shift reminding, etc. are displayed.

3) Normal display mode, high-speed display mode and automatic display mode are set by yourself;

4) Kilometers and miles are free to switch, which greatly facilitates the dashboard of British Standard;

5) 6 inches display area, easy to read

6) Switch on and off automatically, HUD start when car starting , HUD shutdown when the engine is turning off to protect the car battery effectively; at the same time, you can switch on and off HUD by Manually Shutdown to protect the battery safety.

7) Single-stage and four-stage overspeed alarm for driving safely.

8) Engine speed alarming so that you can shift timely to save fuel, also has a special significance for the novice;

9) Automatic and manual brightness adjustment mode, no dazzling;

1. Make sure if your car complies with OBD II (or EU OBD) interface standard;

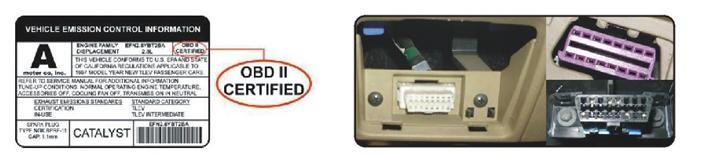

2. Open up the engine hood and look for the OBDII sticker. If there is a sticker of “OBDII CERTIFIED” (Figure 2), then you can use our HUD. You can also check if your car have a

diagnostic Interface(the vast majority of cars made in china after 2006 have the diagnostic Interface).

3. If your car has a diagnostic Interface of 16PIN(Figure 3), then plug the OBDII cable with the diagnostic Interface of 16PIN.

4. Put the non-slip mat on the relatively flat position of the car console. Then you put HUD on the non-slip mat and adjust HUD.

5. Reflective film can be attached to the front windshield above HUD so that you can read the parameters form the reflective film.

A. Firstly spray some water on the position of sticking the reflective film;

B. Remove the protective layer of the film, then attach to the corresponding position;

C. Adjust the location, then use a small scraper or a smooth object to scrape the surface of the film;

D. After a few minutes, the moisture will evaporate, then gently wipe off the water droplets and dust.

6. Power-on test

You switch on HUD and HUD shows the current car voltage. Then HUD searches the car computer system. If HUD displays data, such as car speed, engine speed etc, it indicates that the product has been installed successfully.

The value HUD displays is the value of car inside computer system. Since the value that the car dashboard displays is a little bit different from the value of car inside computer system , so you can enter the setup mode to fine-tune the display value of HUD to achieve exactly the same values that the dashboard displays.

1. Specific setup

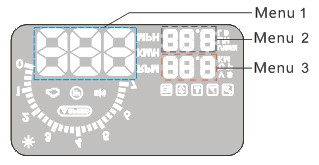

Firstly, you need to connect HUD to the car, then press the OK button for 3 seconds to enter the setting mode. You can press the OK button once, the value of Menu 3 increases by 1. The value of Menu 1 increases or decreases by 1 by dialing up or down the dial switch once, which achieves the same values of HUD as the value the car dashboard displays(Dial switch partially shown in Figure 4 and HUD setting interface shown in Figure 5)

1) Enter the setup interface, each parameter adjustment value show as follows Table 1:

After the above adjusted, please press the OK button of dial switch for three seconds ,then HUD is returned to the display interface or restart the HUD, display interface can also be returned.

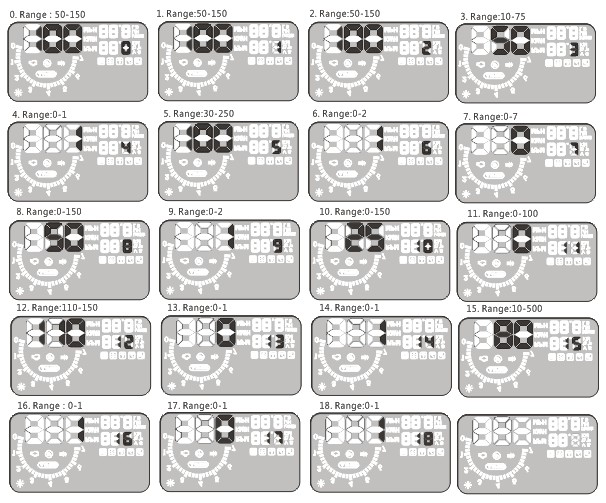

2)The specific setup interfaces are shown in Figure 6:

A. Firstly, enter the setup mode and find function area 11, set up the car's displacement values, which are 1,2,3,4 ..., 100, that means displacement value is 0.1L, 0.2L, 0.3L, 0.4L ..., 10.0L respectively.

B. Secondly, enter the setup mode and find function area 15 in above tablet 1, set up the reference fuel consumption value (i.e. one-hundred-kilometer standard fuel consumption value) (see the corresponding vehicle fuel consumption value that MIIT( Ministry of Industry and Information Technology) or car manufacturers announced.

Firstly, you start the car and turn off HUD. Then you press OK button and hold the dial switch for five seconds and turn on HUD at the same time. When HUD buzzer issues a "Beep" sound, all parameters resume the default values.

After HUD connects car, you don’t start the engine and put the car key into the ‘ON’ position. Then HUD shuts down automatically, you press up and hold the dial switch for five seconds. When HUD buzzer issues a "Beep" sound, HUD clears fault codes.

After connecting HUD, you start the car and HUD displays properly.

1.1 Then you press OK button of the dial switch continuously to display the contents of Menu 1 cyclically, such as MPH, KM/H, RPM.

1.2 HUD displays the contents of Menu 2 cyclically, such as V, throttle position, water temperature, ignition timing, 100 kilometers acceleration time (S), Mileage (KM) when you dial up the dial switch continuously.

1.3 HUD displays the contents of Menu 3 cyclically, such as L/100KM, L/H, L when you dial down the dial switch continuously. (Figure 7)

2. Rapid refueling

2.1 you can press up and hold the up button for 5 seconds, the value of remaining oil (L)

increases by 1 at Menu 2. Then you release the up button and continue to press up and hold the up button for 5 seconds, the value of remaining oil (L) increases by 1 again, and so on;

2.2 you can press down and hold the down button for 5 seconds, the value of remaining oil (L) decreases by 1 at Menu 2. Then you release the down button and continue to press down and hold the down button for 5 seconds, the value of remaining oil (L) is decreased by 1 again, and so on;

Note 1: When you increase or decrease the value of remaining oil(L), HUD displays properly at other Menus.

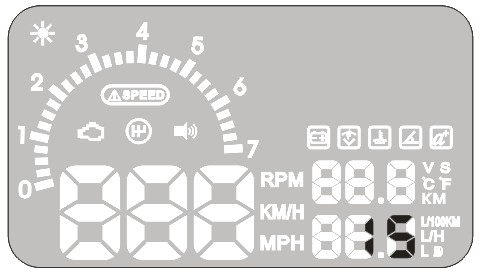

Note 2: This function is only valid when the value of the fuel switch is 0). For example, you refuels 15L, you can dial up the dial switch to display 15 at Menu 2. (Figure 8)

New 6" LED OBD-II HUD Head Up Display I5 Common Faults, causes and solutions

1pc x Host Machine of HUD

1pc x Reflecting Film

1pc x OBD2 Connecting Line

1pc x Instruction Manual

1pc x Non-Slip Mat
