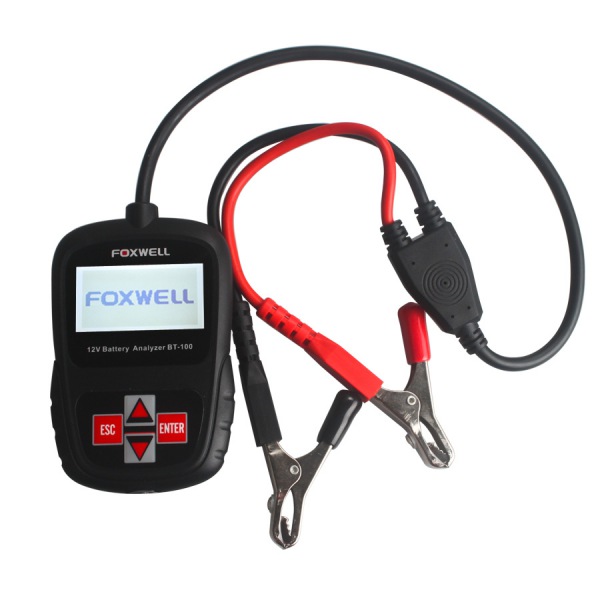

The latest BT100 12 Volt Battery Analyzer from Foxwell is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries as a low cost solution. It provides a quick, easy and affordable solution for technicians to check battery health and faults.

Multiple vehicle applications – passenger cars and light duty trucks

Tests batteries rated from 100 to 800CCA

Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel

Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE

Tests the batteries on the car directly - no need to remove the battery

Detects bad cells

Quick and accurate test result display in just 3 seconds

Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users

Automatic temperature compensation

Extremely easy to use with large backlight LCD display and menu-driven operation

Multilingual menu and test results – English, French, German, Italian, Polish, Portuguese, Russian, Spanish, and Dutch.

How to Change Language?

When the logo appears after turning on the machine, press the up key and then you can find the language menu.

Item	Range	Accuracy
Voltage measuring	6V to 18V	0.5%
Battery type	Flooded, AGM, GEL	N/A
Battery rating	100 - 800CCA	±(3%+10)CCA
Standard support	CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SEA	N/A
Operation Temperature	-20 to 60°C (-4 to 140°F)	N/A
Storage Temperature	-20 to 70°C (-4 to 158°F)	N/A

1pc x FOXWELL BT100 12V Car Battery Tester
