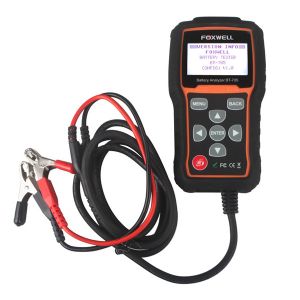

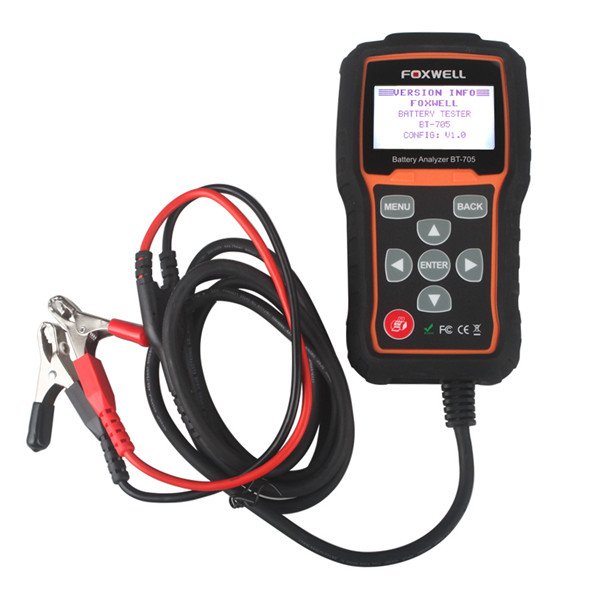

Foxwell BT-705 Battery Analyzer

Features and Benefits:

* Multiple vehicle applications –passenger cars and duty trucks
* Tests batteries from rated from 100 to 2000CCA
* Tests multiple battery types- regular flooded,AGM flat plate ,AGM spiral and gel
* Tests multiple rating systems-CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
* Tests the batteries on the car directly- no need to remove the battery
* Detects bad cells
* Quick and accurate test result display in just 3 seconds
* Tests 12&24 volt charging system
* Advanced starter /alternator test
* Quick starter analysis without disabling the ignition
* Does not emit light,heat or spark ,or discharge battery-keeps operation safe for all levels of users
* Automatic temperature compensation
* Ripple voltage test for easy and intuitive check of faults
* Extremely easy to use with large backlight LCD display and menu-driven operation
* Optional Bluetooth printer(You can not use your own printer,you should use the relevant printer which is provided by the factory)

Specifications

Display: Backlit, 128*64 pixels,graphic
Dimensions: 190*90*36mm (L*W*H)
Operating temperature: 0 to 60鈩?(32 to 140鈩?
Storage Temperature: -20 to 70鈩?(-4 to 158鈩?

Package including:

1pc×Battery Analyzer BT-705 Main Unit
1pc×User’s Guide
1pc× Carry Pouch
