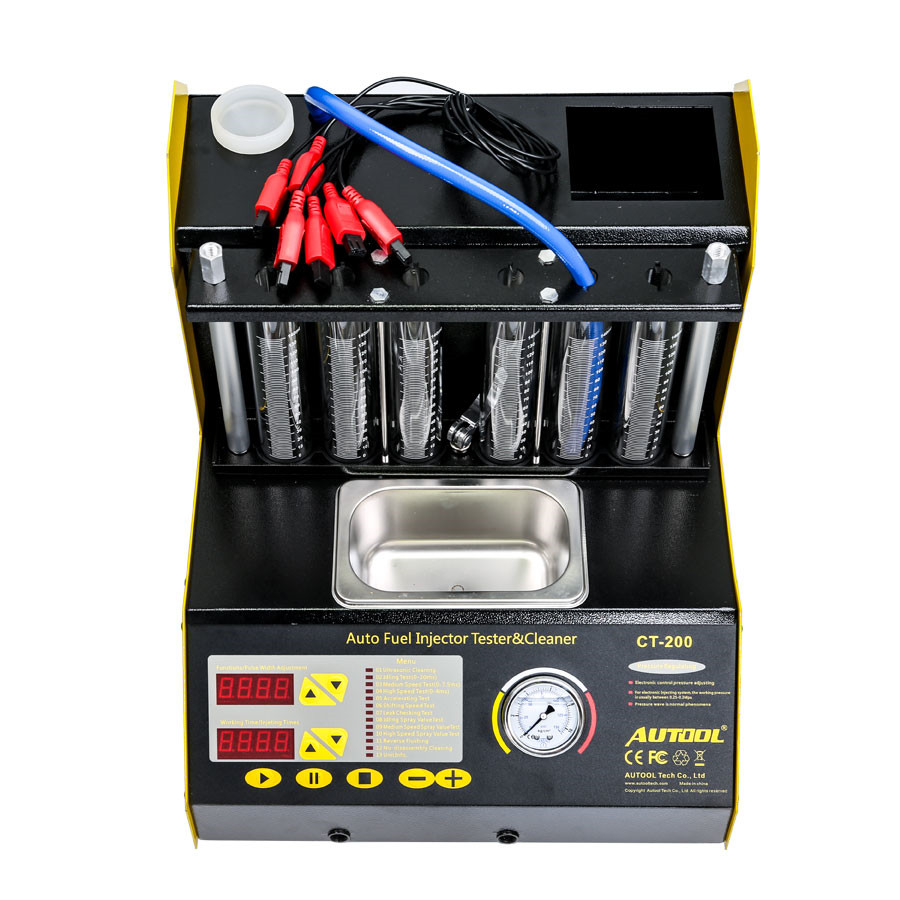

AUTOOL CT200 Ultrasonic Fuel Injector Cleaner

AUTOOL CT200 Ultrasonic Fuel Injector Cleaner Features:
1. LED display;
2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4. Equip with high quality SIEMENS pump, make it endurable;
5. Discharging fluid more quickly, add 2 value in front of machine.

AUTOOL CT200 Ultrasonic Fuel Injector Cleaner FUNCTIONS:

1. Ultrasonic cleaning, dismantle the carbide of the injector;
2. Injector test, stimulate engine running condition, test injector in different speed range, Check and test injectors’ injection situation:atomization/sprayin gangle/spraying mount/spraying uniformity;
3. Leakage and block test;
4. Uniquely designed various compound bonder for all kinds of side-inlet injectors;
5. With reverse flush function, to clean inside out, to improve clean efficiency;
6. With a set of adaptors to clean injectors without dismantling it from the engine;

AUTOOL CT200 Ultrasonic Fuel Injector Cleaner Working Condition:

Power supply: AC220V/AC110V±10%
Frequency: 50HZ±0.5
Humidity :< 85%
Environment Temperature: 10°C~40°C
Magnetic Field: <400A/m

AUTOOL CT200 Ultrasonic Fuel Injector Cleaner Specifications:

Fuel Tank Capacity: 2000 ml
Capacity of Measuring Cylinder: 125 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ

Package include:

1 x CT200 Unit
2 x Valve (for discharging fluid from machine tank)
6 x Adapter for fixing injector on machine
6 x linkage
6 x Blocker for block distributor
1 x Distributor Kits
1 x Impulse cable for providing power to open injector
1 x Manual(English)
