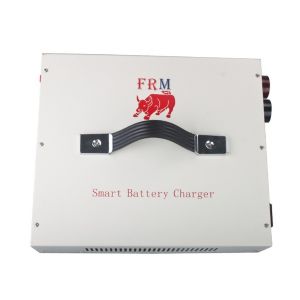

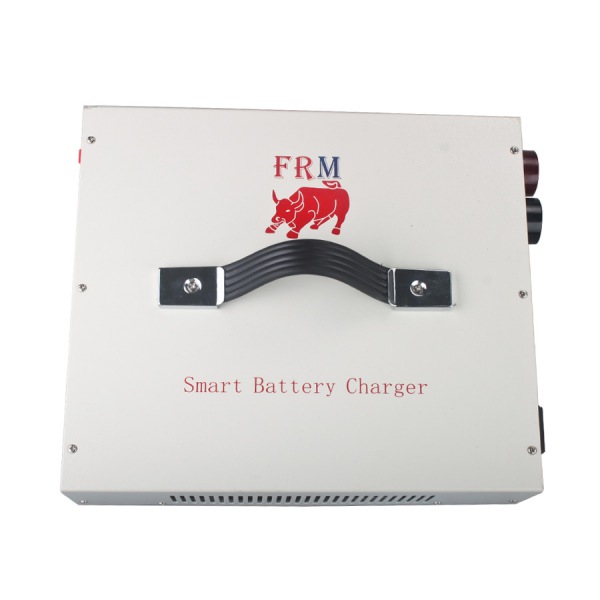

The car ECU is so easily to be damaged once the battery voltage is unstable while you doing the ECU programming. AUDI/VW/BENZ/BMW Automotive Programming Dedicated Power can be used to protect your ECU safety.

Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications ( It takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.)

AUDI/VW/BENZ/BMW Automotive Programming Dedicated Power can prevents equipment damage from voltage fluctuations and transient surge.

This is high quality Power adapter for ECU Programming, highly recommend.

1. Smart Car Program

2. High temperature alarm.

3. Charging dedicated power

4. Short circuit and reverse polarity protection

5. Intelligent charger for motor vehicles starter battery

6. Extensive protection functions and self-protection functions

7. Intelligent charger for motor vehicles starter battery

8. Input voltage 220V only, Output Voltage 14V 0-120A.

Applicable Models: Volvo, Porsche, land rover, Volkswagen, Audi, BMW and Mercedes - Benz, General Motors, Etc.

1. Efficiency: 85%

2. Power Factor: 0.95

3. Frequency range: 40-60HZ

4. Rated input voltage: 220 v (the default) to 110 v (optional)

Output Specification:

1. DC voltage: 14V

2. Rated current: 0-120A

3. Rated maximum power: 1800W

1. Over-voltage: 16V

2. Working temperature: -40 - +85

3. Safety: UL60950, TUV EN60950-1

4. Overload: 90-110% of rated output power

5. Withstand voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC

6. Insulation resistance: I/P-O/P锛孖/P-FG:100M Ohms銆?00VDC/25°/70%RH

7. EMC: Complies with EN55022, EN61000

Green LED over-voltage over-current alarm;

Red LED equipment high temperature alarm;

1set x AUDI/VW/BENZ/BMW Automotive Programming Dedicated Power
