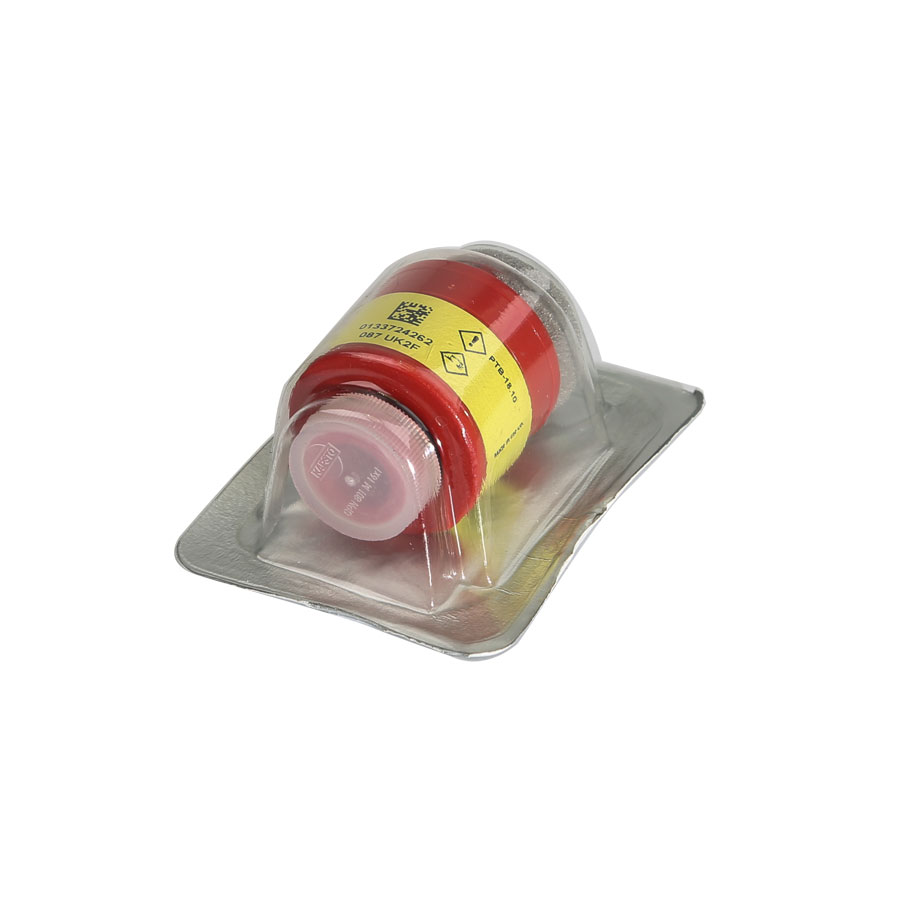

AO2 PTB-18.10 Oxygen Sensor O2 Sensor Gas Sensor AO2 CiTiceL with Molex Connector

Warranty: One Year

AO2 PTB-18.10 Key Features & Benefits:

Molex Connector
Linear Output from 0-100% Oxygen

AO2 PTB-18.10 Description:

AO2 PTB-18.10 oxygen sensor used on the oxygen index measure apparatus is a consumable. The chemical reaction has taken place after it contacted with the air. Generally speaking it is one year to use effective date. The packaging of the oxygen sensor must be hermetic, for it is full of nitrogen in the sealed plastics package. The best to keep the temperature 0 degrees - between 20 degrees.

AO2 PTB-18.10 Technical Specifications

MEASUREMENT:

Operating Principle: Partial Pressure Electrochemical
Measurement Range: 0-100% O2
Output:9 - 13 mV in Air
Response Time (T90 ):<5 s

ELECTRICAL:

On Board Temperature: <2% O2 equivalent
Compensation: variation from 0°C to 40°C
Connector:
3 Pin Molex header
(MOLEX 22-29-2031)
Recommended Mating Part:
Molex 3-Way Housing
(MOLEX 22-01-2035)
Molex Crimp Terminals
(MOLEX 08-45-0110)

ENVIRONMENTAL:

Typical Application: Vehicle Exhaust Analysis
Operating Temperature Range: -20°C to +50°C
Operating Pressure Range:0.5 - 2.0 Bar
Differential Pressure Range: 0 to 500 mBar max
Operating Humidity Range: 0 - 99% RH non-condensing
