Ford VCM IDS FOR FORD MAZDA JAGUAR LANDROVER

The Vehicle Communication Module (VCM) is a high performance, ruggedized, vehicle serial communications gateway. This device provides multiple vehicle serial communication interfaces to meet the requirements of all Ford Motor Company vehicles.

The Ford Integrated Diagnostic System (IDS) will be the only equipment that provides complete diagnostic coverage of current and future Ford, Lincoln and Mercury vehicles in North America.The IDS package replaces the Worldwide Diagnostic System (WDS).

The IDS application will perform the identical functions of the WDS and allows dealership technicians to diagnose and service Ford, Lincoln, Mazda, Mercury, Land Rover & Jaguar vehicles.

Diagnostic Functionalit
y** For incode calculate by using this tool, pleaes refer to INCODE => OUTCODE
Self Test
  Retrieve CMDTC's
  KOEO (Key-On-Engine-Off)
  KOER (Key-On-Engine-Running)
Data Logger
   Body
   Chassis
   Electrical
   Powertrain
   Pressure/Vacuum Tests
Network Test
Module Programming
   Programmable Module Installation
   Module Reprogramming   Programmable Parameters
Body Tools
   PATS Functions
   Remote Keyless Entry
   Factory Keyless Entry Code
   Restraints

Chassis Tools
   ABS Service Bleed
   IVD Initialization Sequence
    Ride Height Calibration
   Pneumatic Test
   Accurate Trim Test
Electrical Tools
   Charging System Test
   Parking Aid Switch Test
   Audio
Powertrain Tools
   EVAP Test
   Fuel Economy Test
   Fuel System Test/Relative Injector Flow Test
   (IDS - Some vehicles require only VCM)
   Ignition System Test
   Spark Duration PIDs
   Power Balance Test
   Relative Compression Test
   Transmission Test
   (IDS - Some vehicles require only VCM)
   Engine Checks and OBD Tests
   (Drive Cycle, Mode 01, Mode 06 & Mode 09)
   EGR Test
   Other Powertrain tests & functions

Application Overview
Integrated Diagnostic Software (IDS) is the next generation diagnostic tool. IDS integrates WDS software modified to run on an off-the-shelf laptop with the Vehicle Communication Module (VCM) currently used in NGS+ and PDS, and a new Vehicle Measurement Module (VMM).

Vehicle Diagnostic Connectors

The VCM 16-pin DLC cable is used to connect the VCM to the vehicle. The VCM and VMM connect to the laptop through the Ethernet-USB Adapter Cable (H406/H416).

Interface Devices
The interface devices that are used with this application are:
1.VCM Vehicle Communication Module: This device provides all link based functionality including: Data logger, Self test, Service Functions, Module Configuration and Programming, etc.
2.VMM Vehicle Measurement Module :This device provides the following functionality: Oscilloscope, Digital Multi-Meter, Ignition System Test, Fuel System Test, and SGM.

Note that the application will detect the interface device that is connected to the laptop. Indicator icons will appear at the bottom right-hand corner of the IDS screen when the VCM and/or VMM are connected.

Supported languages:English, German, French, Italian, Spanish, Netherlands, Swedish, Danish, Norwegian, Portuguese, Slovak

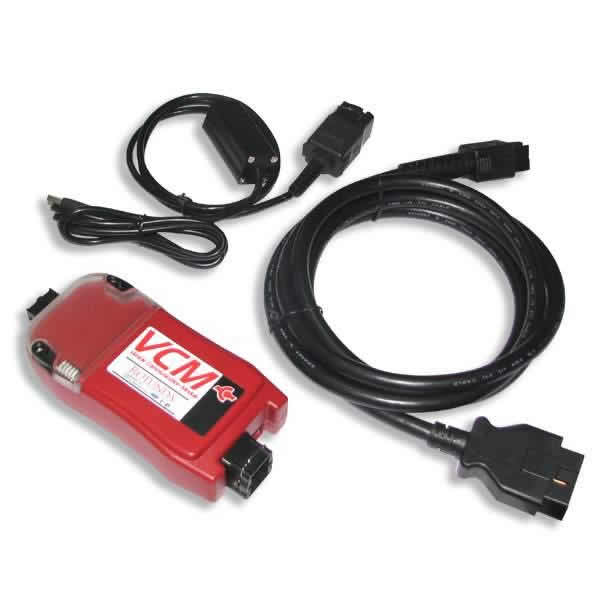

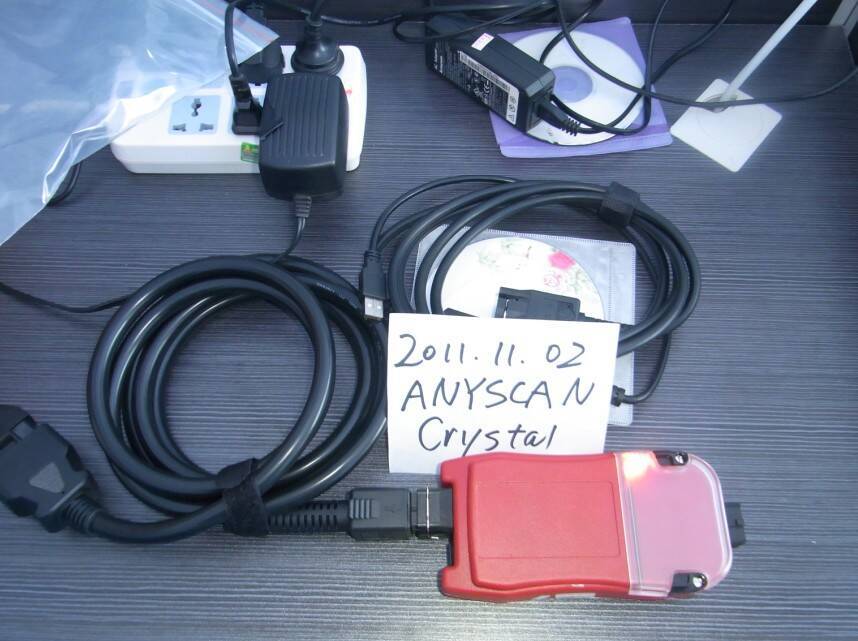

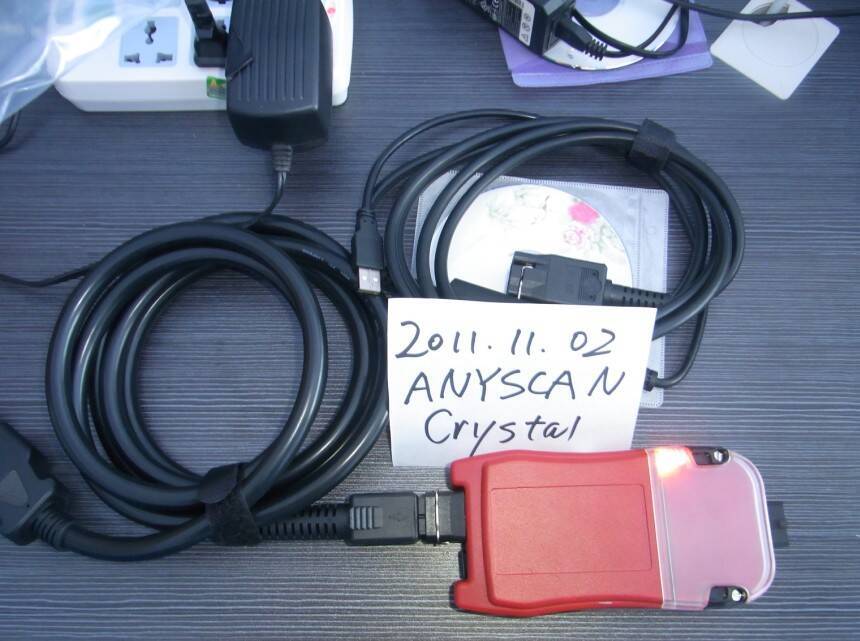

Ford VCM IDS Package includes:
1 Vehicle communication module - VCM
2 16-pin DLC long cable
3 IDS 4m PC Ethernet-USB host cable
4 DVD V70 (Ford/Mazda)
5 DVD V123 (Land Rover/Jaguar)
