Xtool X-100 C for iOS and Android Auto Key Programmer for Ford, Mazda, Peugeot and Citroen

The Xtool X-100 C is a perfect on-board key programmer tool and pin code reader specialized for Ford, Mazda, Peugeot and Citroen.

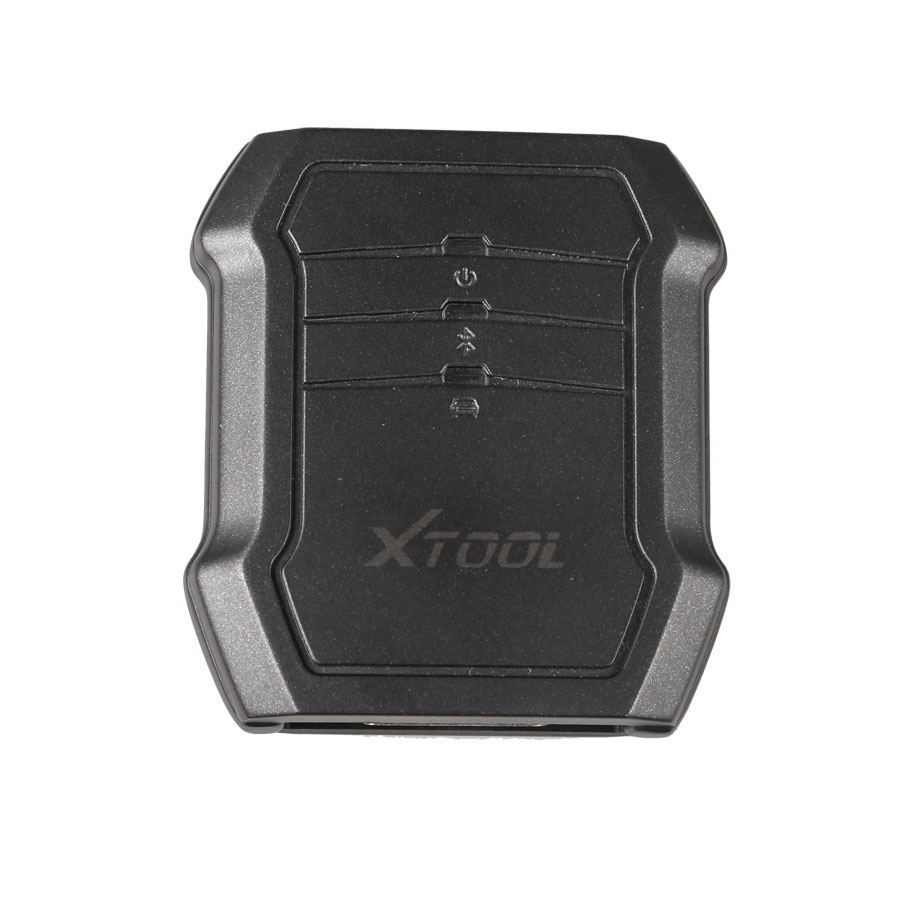

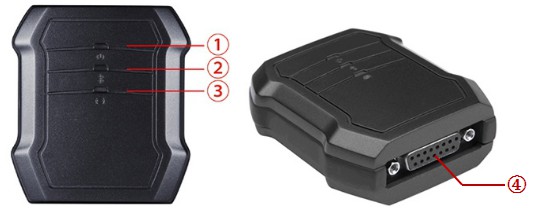

Layout of X100C:



鈶?Power Indicator: It turns green when power is on.
鈶?Bluetooth Indicator: It turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
鈶?Vehicle Indicator: When X100C is connected with vehicle successfully, it turns green.
鈶?DB15 connector: Connect the vehicle via test cable.

Xtool X100 C Features:

Vehicle Compatibility: X-100 C works with four brand cars, they are Ford, Mazda, Peugeot, Citroen and DS
Bluetooth auto-reconnection: Once the Bluetooth is paired, you don’t need to input the code to pair with your phone anymore.
The device will reconnect with your phone automatically.
Connection: Connection via Bluetooth (Android and IOS)
Free update: Download latest XtoolC App with new features from Google Play or Apple Store.

X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.

Language: English, more language will be added.

Here is part of X100C pin code reading function list, more models will be added one by one:

Auto Maker	Model	Year	Chip Type	Remarks
Mazda	CX-3	2015+	smart PCF7953 ID46
Mazda	CX-3	2012+	smart PCF7953 ID46
Mazda	2	2014+	smart PCF7953 ID46
Mazda	3	2013+	smart PCF7953 ID46
Mazda	6	2013+	smart PCF7953 ID46
Mazda	2	2002 - 2013	4D ID63
Mazda	3	2002 - 2012	4D ID63
Mazda	5	2002 - 2012	4D ID63
Mazda	6	2014 - 2012	4D ID63
Ford	Focus3/Cmax	2010+ -	DST80+	mechanical
Ford	Focus3/Cmax	2010+ -	DST80+
Ford	Kuga2	2014+ -	DST80+	mechanical
Ford	Kuga2	2014+ -	DST80+
Ford	MondeoMK4/SMax facelift	2010+ -	DST80+	mechanical
Ford	MondeoMK4/SMax facelift	2010+ -	DST80+
Ford	Fiesta	2014+ -	DST80+	only mechanical
Ford	Bmax			only mechanical
Ford	Custom			only mechanical, not fully supported
Ford	Fiesta
Ford	Bmax
Ford	Ecosport
Peugeot	1007
Peugeot	206
Peugeot	207
Peugeot	208
Peugeot	2008
Peugeot	301
Peugeot	306
Peugeot	307
Peugeot	308
Peugeot	3008
Peugeot	406
Peugeot	407
Peugeot	4007
Peugeot	508
Peugeot	5008
Peugeot	607
Peugeot	806
Peugeot	807
Peugeot	Bipper
Peugeot	Expert
Peugeot	Partner
Citroen	C2
Citroen	C3
Citroen	C3 Picasso
Citroen	C3 Pluriel
Citroen	C4 Cactus
Citroen	C4 Picasso
Citroen	C5
Citroen	C8
Citroen	C-Elysee
Citroen	xsara Picasso
Citroen	Berlingo 2
Citroen	Berlingo 3
Citroen	Jumper
Citroen	Jumpy
Citroen	DS3
Citroen	DS4
Citroen	DS5

Support both iOS and Android:



Recommended APP: X-100 C (search and download it from Apple store and GooglePlay Store)

OS	Device	Mode
Apple iOS (Requires iOS4.3 or later)	IPod touch	iPod Touch 1st generation, 2nd generation, 3rd generation, 4th generation
	iPhone	iPhone, iPhone 3, iPhone 3GS, iPhone 4, iPhone4s, iPhone 5, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iphone 7, iphone 7
	Pad	iPad, iPad 2, ipad 3, iPad air, iPad Mini 1, iPad Mini 2,
Android (Requires OS2.3 or later)		ll android smart phone and tablet

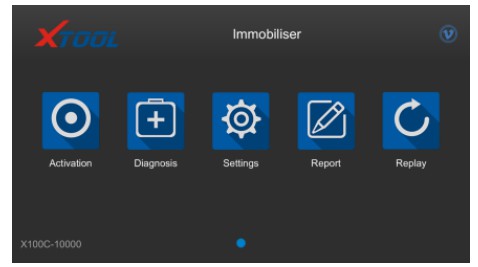

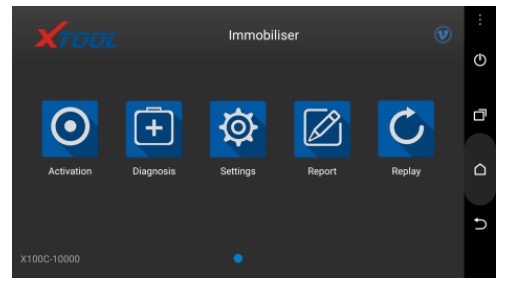

Screenshot of Application (Android):

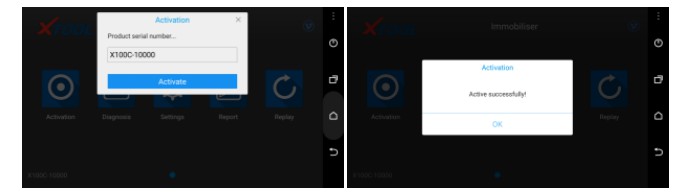

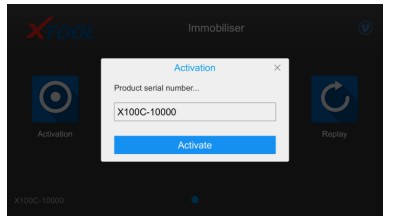

Activation: Please activate X100C before you use it to program keys. Input the serial number and press “Activate”.

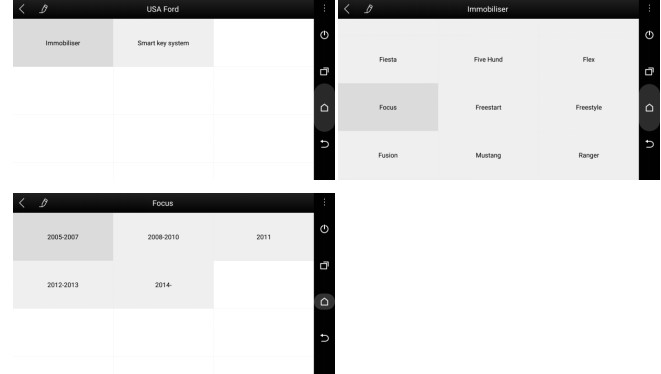

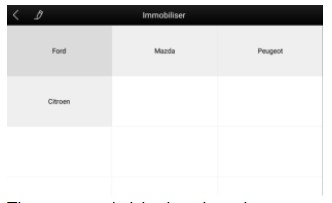

Immobilizer: Enter the software and choose your vehicle type, and then go on programming.

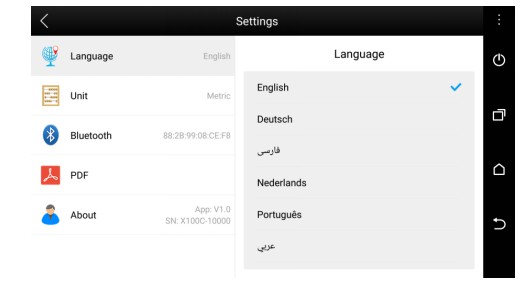

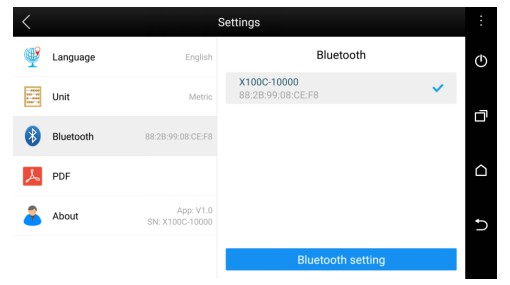

Settings: By selecting Setting, users can set the language, unit and other system related options:

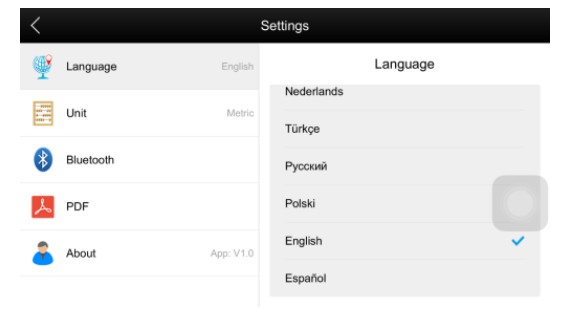

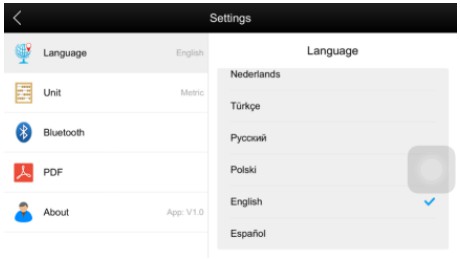

- Language: Select the language. Please tick the required option from the multi-language options on the right.

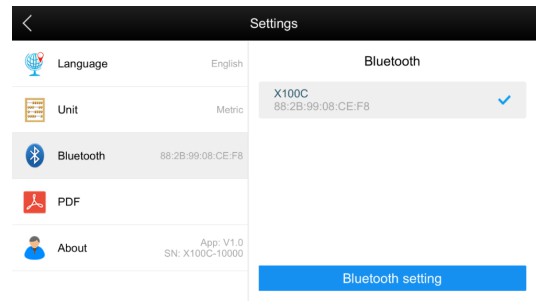

- Bluetooth: Enter the Bluetooth setting and pair the phone Bluetooth with X100C -xxxxx Bluetooth

- PDF: input and store user’s information to be printed in the PDF report.
- About: Users can read the software version and serial number here.

Report: It provides data flow during vehicle key programming.
Replay: It replays the data flow during vehicle key programming.

Screenshot of Application (iOS)

PS: so far the language is not available to change.

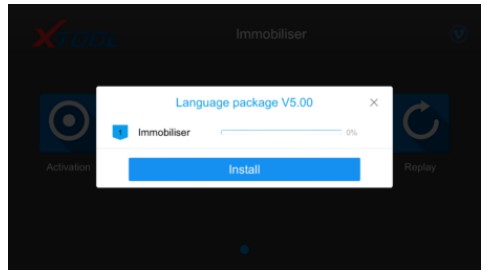

If this picture shows up, it means you have to install language package first.

Activation: Please activate X100C before you use it to program keys. Input the serial number and press “Activate”.

Immobilizer:

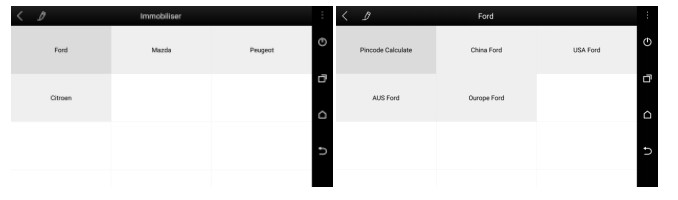

Enter "Immobilizer" to choose brand firstly.

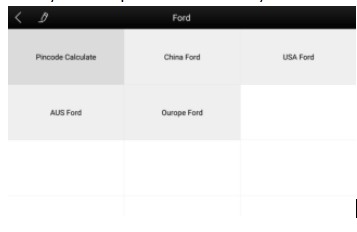

Choose the regional market.

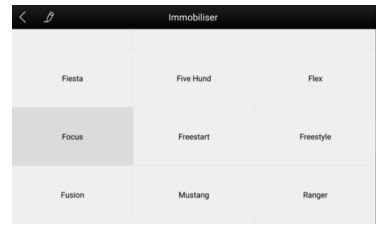

Choose model.

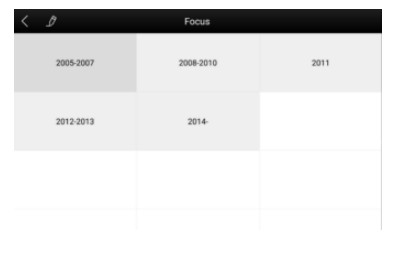

Choose year.

Settings: Enter the "Settings" you can set unit and other system related options.


- Bluetooth: You have to connect your Bluetooth before you start. Here are steps

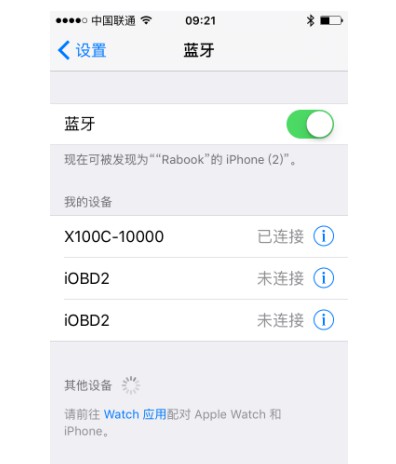

Step 1: Open your iPhone’s setting ->Bluetooth ->choose the one same as your device

Step 2: Check your setting in the app to see if it is connected successfully.

Package Includes:

1pc x X-100 C
1pc x OBD II Cable
