XTOOL PS201 Heavy Duty CAN OBDII Code Reader

Top 7 Reasons to Get XTOOL PS201:

1. New operation interface
2. Easy-to-read large color screen
3. Large easy-to-operate buttons
4. High Quality Material ABS, Comfortable & Durable
5. ARM Chip, High Speed
6. Advanced Diagnostic Software System runs fast and stably
7. Software Updating Online

Language supported: English only

XTOOL PS201 Feature:

* Class 4 - Class 8 truck coverage featuring "Automatic Protocol Search".
* HD J1587 / J1708 and J1939 CAN, Engine, Transmission/ABS coverage and more!

* Live vehicle data such as:

- Engine speed
- Engine ECU temperature
- Percent acceleration pedal position
- Engine intercooler temperature
- Engine coolant temperature
- Battery volts
- Alternator volts
- Ambient air temperature
- Air inlet temperature

* General Features (Including Global OBD II coverage):

- Read and clear diagnostic trouble codes
- Global OBD II - All 9 Modes.
- Fast Global OBD II Quick Test
* Gasoline and diesel engine coverage.

Support multiple Global OBD II trouble code requests, generic codes (mode 3), pending codes (mode 7), enhanced codes, and GM DTC status.

* On-screen definitions of diagnostic trouble codes.
* Set measurement units in SAE English/Metric.
* Internet upgradable.

Application

* Passenger cars, and commercial vehicles
* Tow trucks, recreational vehicles, cement trucks, dump trucks, garbage trucks, buses,
step vans, municipal vehicles, refrigerated trucks, and conventional trucks
* Heavy-Duty Standard compliant construction, marine, agriculture, and other industrial
diesel power plant configurations
* ISO 14230, ISO 15765, SAE J1850, SAE J1939, SAE J1708/J1587

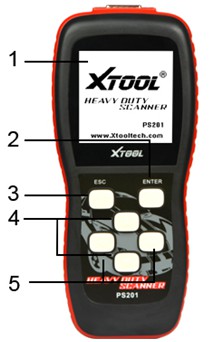

1. LCD screen: 160*160
2. [ENTER] button: confirm a selection of a menu list
3. [ESC] button: return to the previous screen
4. [Up]/[Down] button: move the cursor up or down
5. [Left]/[Right] button: turn pages

Package Including:

1pc x PS201 Main unit
1pc x 6+9PIN Extension cable
1pc x OBDII connectors
1pc x Card reader
1pc x User's manual
1pc x Nylon bag
1pc x Standard carton BOX
