XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function (Same Function as XTOOL PS80HD)

Xtool EZ500 HD is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking.

Descriptions of XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function (Same Function as XTOOL PS80HD)

Xtool EZ500 HD is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. EZ500 HD provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.

XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function

Top Reasons to Buy XTOOL EZ500 HD:

Easy registration with EZ500 HD connected to WIFI
One-click software update via WIFI
Remote access
Diagnosis reports in PDF file
Record and playback live data
8.0 inch multi-touch screen
On-board battery
Extensive vehicle coverage for most US, Asian and European vehicle makes

Language supported: English only

Layout of EZ500 HD

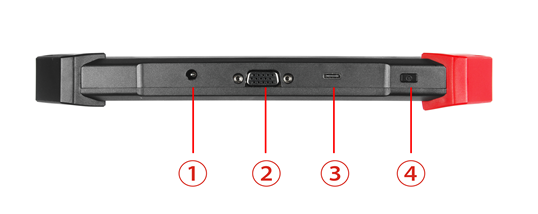

Top View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 1

鈶?DC Charging Interface: Battery charge, DC 12V.
鈶?DB15 Interface: Directly connect with truck to establish wire connection.
鈶?USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
鈶?Power Button

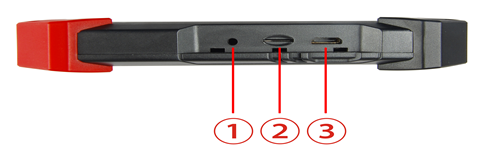

Side View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 2

鈶犮€€Headphone Jack
鈶°€€TF Card Slot
鈶€€Mini HDMI Port

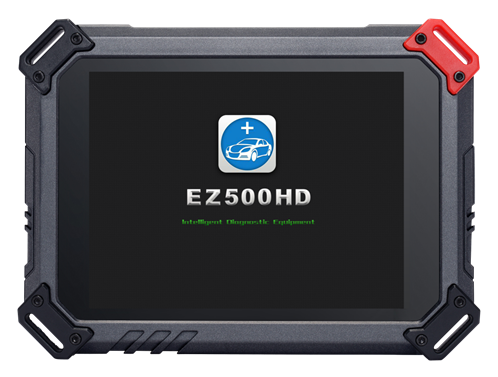

Front View of EZ500 HD Tablet

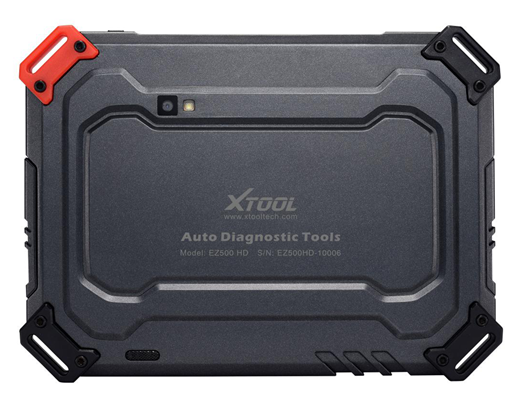

Back View of EZ500 HD Tablet

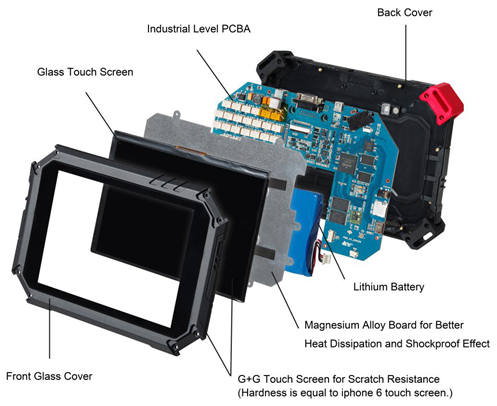

EZ500 HD Exploded Diagram

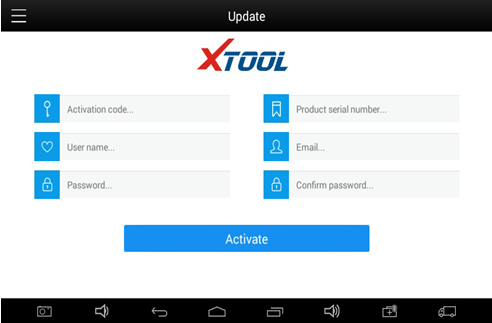

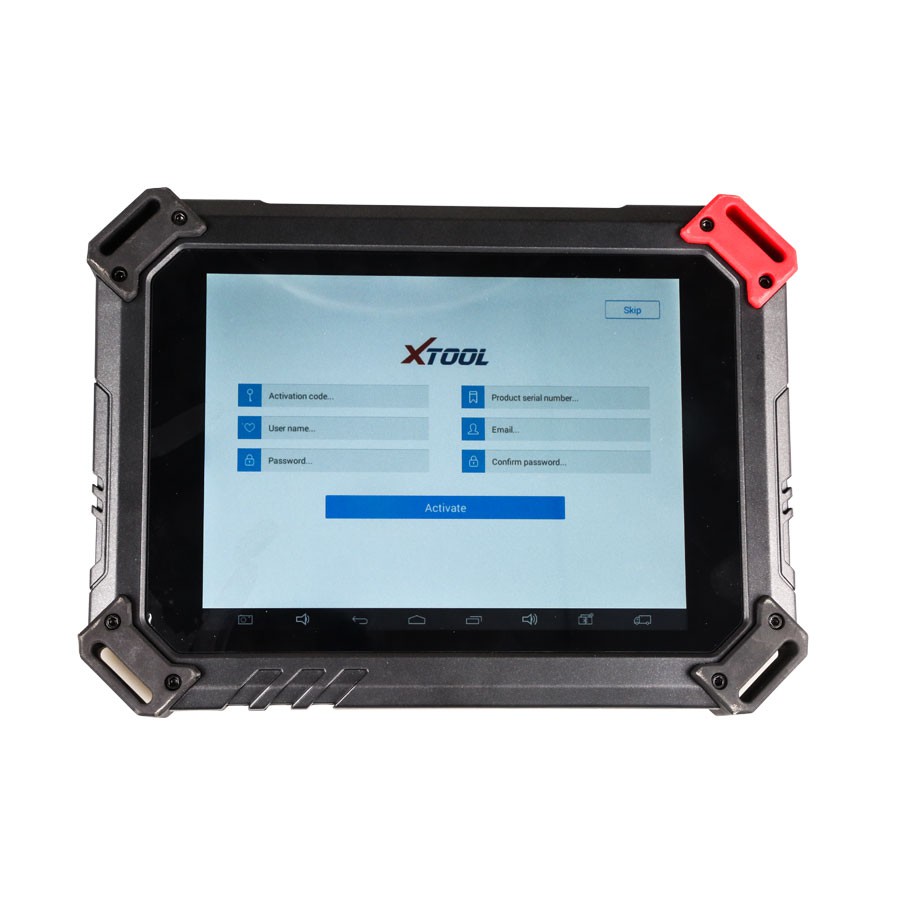

Easy registration with EZ500 HD connected to WIFI. Don’t bother to use PC for registration
.
XTOOL EZ500 HD Heavy Duty Diagnosis Display 6

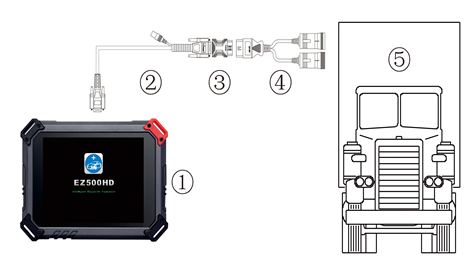

Connect to the vehicle directly with cable

鈶?EZ500 HD Mainframe
鈶?Main Test Cable
鈶?OBD2 16pin Connector
鈶?OBD 6+9 Pin Connector or other connectors
鈶?Vehicle

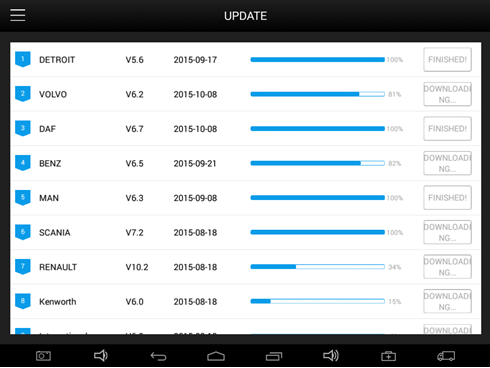

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

XTOOL EZ500 HD Heavy Duty Diagnosis Display 8

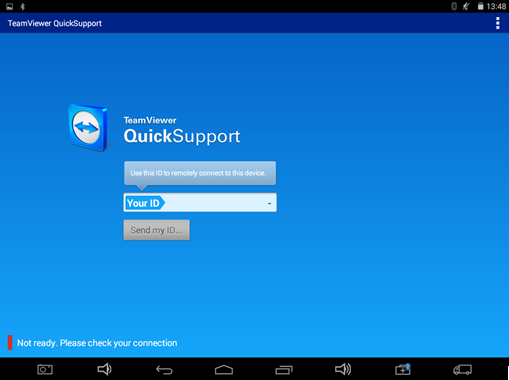

Remote access, which is perfect for training, demonstration and even remote diagnosis.

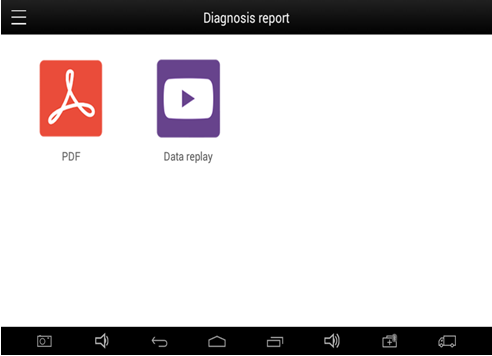

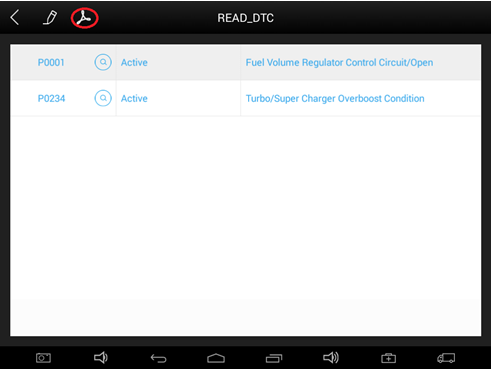

Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 11

Extensive vehicle coverage for most US, Asian and European vehicle makes

DIESEL: VOLVO, Allison, Bendix, Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA, Nissan UD, WABCO, etc

It can also diagnose trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc

It can also diagnose trucks via ELECTRONIC: Cummins and more…

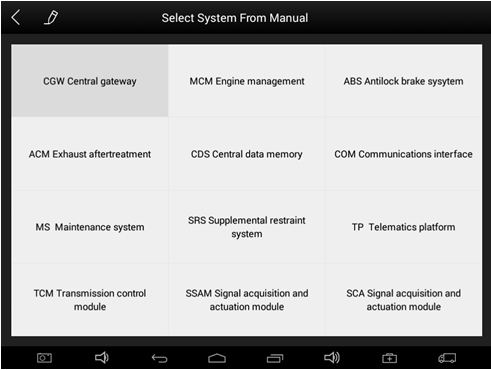

Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 16

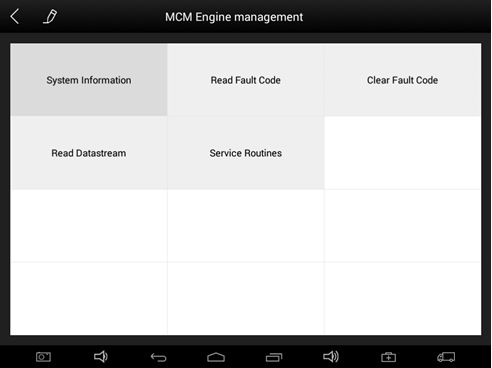

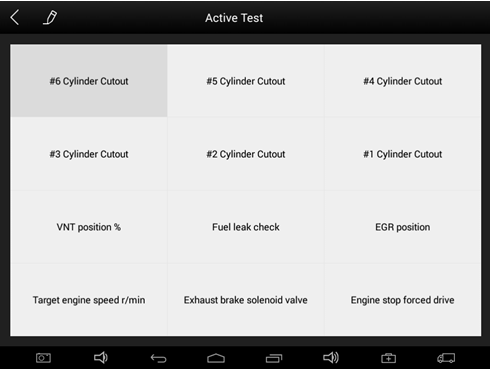

Basic Function: read fault codes, clear fault codes, live data, actuation, active test

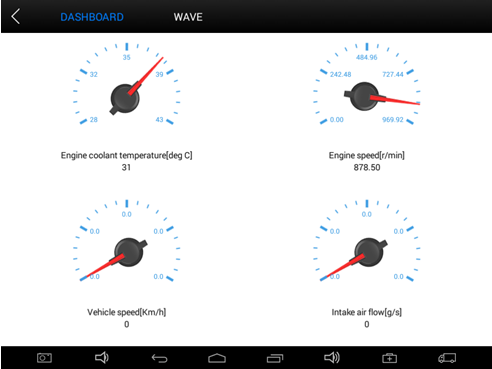

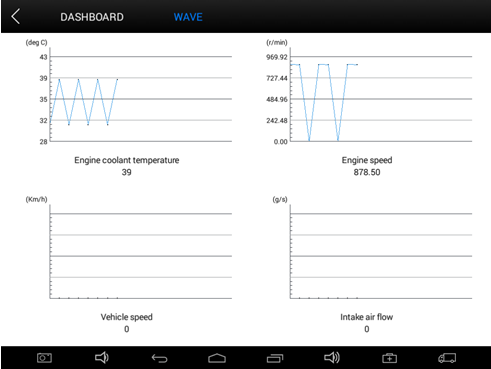

Accurate Live Data in Both Wave and Dashboard Form

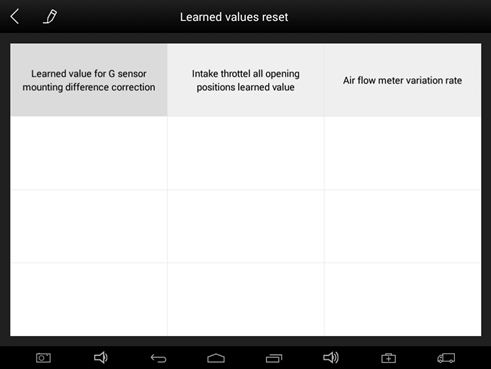

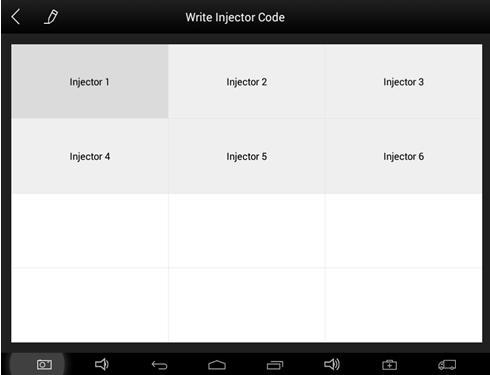

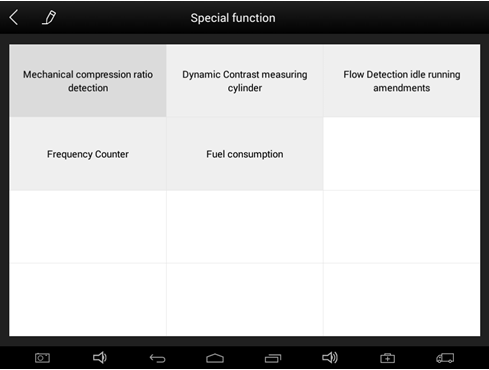

Special Function: Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.
XTOOL EZ500 HD Heavy Duty Diagnosis Display 21

Specifications:

Operating System:	Android 4.4.4
Memory:	1GB RAM,16GB Flash
CPU:	Quad Core, 1.6GHz
Display:	8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution
Sensors:	Gravity Sensor, Light Sensor
Input/Output:	Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port
Battery:	4000mAh, 7.4V
Wi-Fi:	WIFI 2.4Ghz
Power Voltage:	12V
Power Consumption:	29.6W
Operating Temperature:	-20 to 50鈩?-4 to 126鈩?
Humidity:	<90%
Dimension:	(LWH): 24017730mm

Package including:

1pc x EZ500 HD Tablet

1pc x Charger for Tablet

1pc x Charger Cable US

1pc x Charger Cable EU

1pc x OBD II-16

1pc x SELFTEST

1pc x OBD-R16

1pc x ISUZU-3

1pc x ISUZU-20

1pc x DENSO-12
1pc x IVECO-30
1pc x IVECO-30-1
1pc x CUMMINS-9
1pc x YUCHAI-4
1pc x CAT-9
1pc x CUMMINS-6

1pc x VOLVO-8

1pc x BENZ-14

1pc x Universal Cable

1pc x Battery Cable

1pc x Cigar Lighter Cable

1pc x DB15 Main Cable

1pc x USB TYPE-C Cable

1pc x Tool Case

1pc x Carton

1pc x Certificate of Quality

1pc x Packing List

1pc x User Manual
