XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function

Language supported: English & Polish

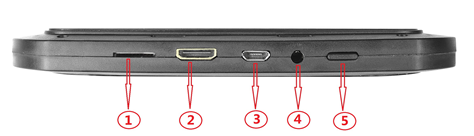

Layout of EZ300:


1.SD CardPort: up to 32GB extension SD card
2.HDMIPort: Compatible with HDMI
3.Micro USB: Battery charge or data synchronization with PC.
4.AudiPort: For headphone
5.Power Button: Power on or off

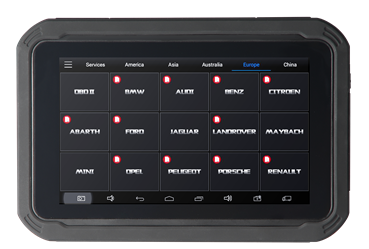

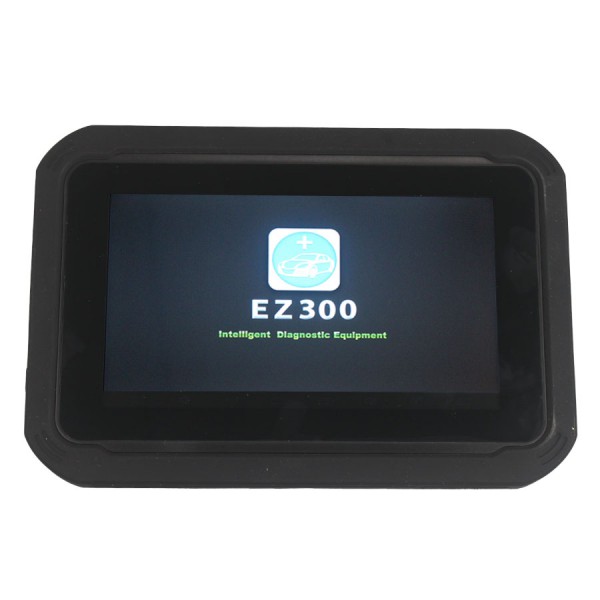

Front View of EZ300 Tablet

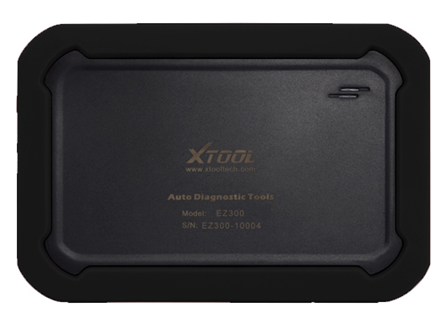

Back View of EZ300 Tablet


Side View of EZ300 Tablet

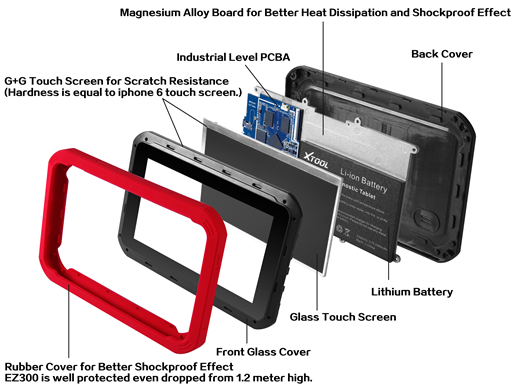

EZ300 Exploded Diagram

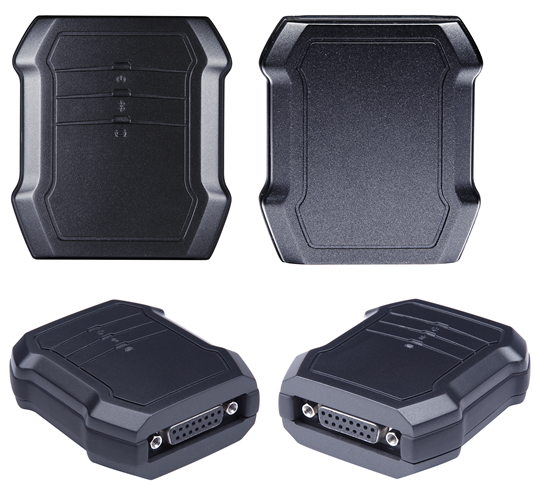

Layout of EZ300 VCI Box


1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.


Features:
*Easy registration with EZ300 connected to WIFI

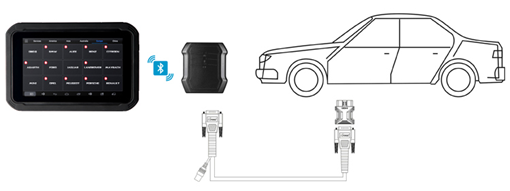

*Wireless diagnosis via Bluetooth
*One-click software update via WIFI
*Remote access

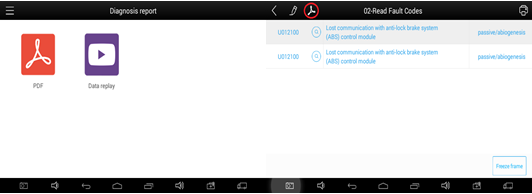

*Diagnosis reports in PDF file
*Record and playback live data
*7 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes

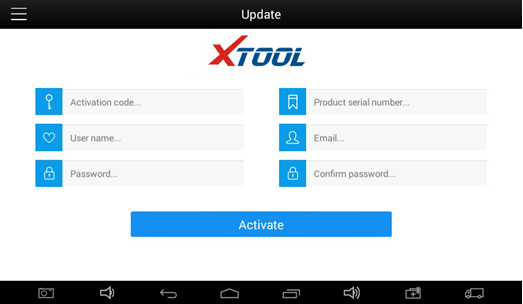

Easy registration with EZ300 connected to WIFI. Don’t bother to use PC for registration.



Wireless diagnosis via ultrafast Bluetooth technology

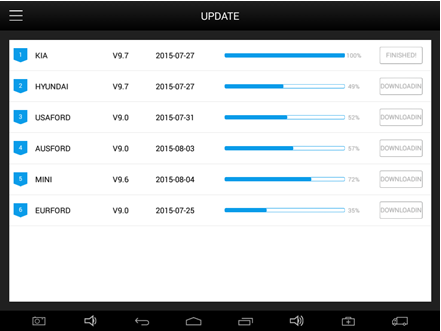

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

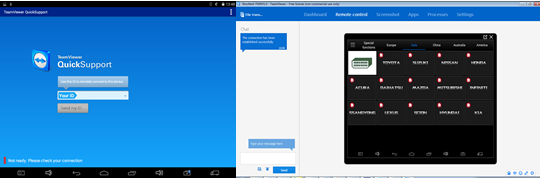

Remote access, which is perfect for training, demonstration and even remote diagnosis.


Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.


Extensive vehicle coverage for most US, Asian and European vehicle makes American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn


Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

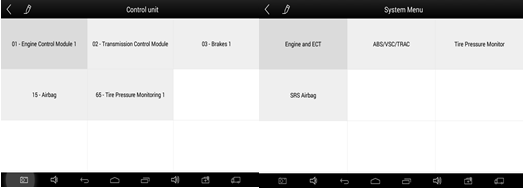

Four System Diagnosis: Engine, ABS, SRS, Transmission and TPMS

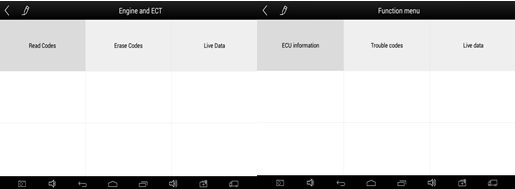

Basic Function: read fault codes, clear fault codes, live data

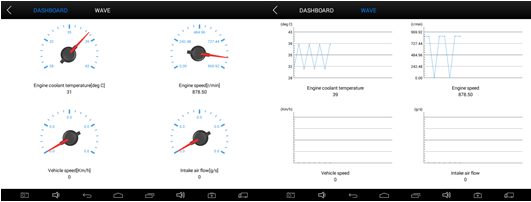

Accurate live data in both Wave and Dashboard form


Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.3 GHz
Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, MiniHDMIPort, 2.0USBPort, TF Card Port
Battery: 2400mAh, 3.7V
WIFI WIFI 2.4Ghz
Bluetooth 100 Meters
Power Voltage: 3.7V
Power Consumption: 4W
Operating Temperature: -20 to 50鈩?-4 to 126鈩?
Humidity: <90%
Dimension: (L*W*H): 208*140*15.5mm

Difference Between XTOOL Products:

	X100PAD	EZ500	EZ400	EZ300
Full System Diagnosis		yes	yes	Engine, ABS, SRS, AT
Key Programming	yes	yes
Oil Reset/Engine Oil Light Reset	yes	yes	yes	yes
EPB Electrical Parking Brake Adaptation	yes	yes	yes
TPS Throttle Body Adaptation	yes	yes	yes
Odometer Adjustment	yes	yes
EPS Electric Power Steering Calibration	yes	yes
Gear Learning	yes	yes
ABS Exhaust	yes	yes
ECU Reset	yes	yes
Tire Pressure Warning Light Reset	yes	yes
Battery Reset	yes	yes

Package Including:

1pcs X OBD II-16
1pcs X Main Cable
1pcs X EZ300 Tablet
1pcs X VCI Box
1pcs X Charger for Tablet
1pcs X US Power Adapter
1pcs X EU Power Adapter
1pcs X MicroUSB Cable
1pcs X Certificate of Quality
1pcs X Packing List
1pcs X User Manual
1pcs X Carton box
