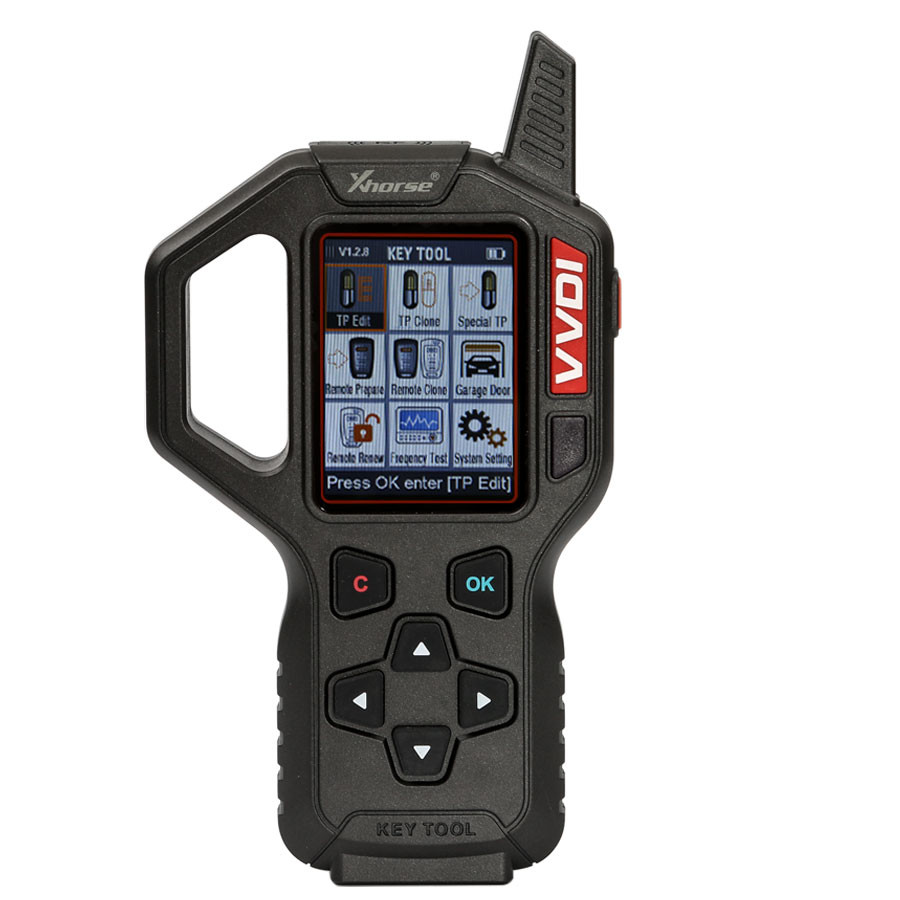

Original V2.4.1 Xhorse VVDI Key Tool Remote Key Programmer American Version/European Car

Great News from Xhorse!!

VVDI Key Tool user can buy a Clone 48 96bit Authorization since 01/04/2018. 1500 free points for calculations , this same as VVDI2. All users who have 48 96 bit activations in VVDI2 can combinate VVDI Key Tool with VVDI2 and use Keytool to clone 48 as well.

Top 5 Reasons to Get VVDI Key Tool:

1. Latest version: V2.4.1, Firmware Version: 1.1
2. Xhorse VVDI Key Tool remote maker supports most common remote types in the market; it is reliable and easy to use.
3. VVDI key tool remote generator can perform these functions: edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card etc.
4. In a word, Xhorse VVDI Key Tool is a device with multi-functions.
5. With VVDI Key Tool Adapters (SK203-F), can renew different kind of original used remote key(The Adapters need to buy separately,not include in the package). If you need VVDI Key Tool with adapters, please choose SK203-B+SK203-F on our site.

Free Download:

VVDI Key Tool Unlock Wring Diagram
VVDI Key Tool Vehicle List
VVDI Key Tool Update Tool Free Download

VVDI KEY TOOL APP latest version update (IOS version 1.2.0 Android version 1.2.1)
---------------------------------------------------------
IOS update
APP available only after update
1.add query bonus points function;
2.prepare remote add feedback function;
3.optimized interface.

Android update
Android system 8.0 version might be with problem when updating, if update failed please search VVDI or KEY TOOL to download the latest APP version at google play.
1.add query bonus points function;
2.prepare remote add feedback function;
3.optimized interface.
4.fix 96bit copy 48 online calculation problem
5.fix other bugs

Notes: please use the latest software version.
IOS please download from APP store search 'VVDI' or 'KEYTOOL'
Android download from google play search 'VVDI'

Xhorse VVDI Key Tool Function:

1.Transponder Cloning
Support identification all immobile Transponder in current market,clone & edit partial common Transponder.
Support Editing Transponder Types:
36/46(Hitag2),47(Hitag3),48,4D(40/80),7935

Support Cloning Transponder Types:
Support 36/46 original or aftermarket transponder offline cloning
Support 4D-40 bit 60 63 83 67 69,etc offline cloning
Support 11/12/13/4C/30/33/42 offline cloning
Support Toyota 72-G transponder online cloning
Support Hyundai/KIA 70(4D-80) bit online cloning
Support Ford 83-80 bit online cloning
Support all 48 online cloning

Support Unlock Transponder Type:
Support unlock Xhorse special 4D,46 transponder
Support unlock all 7935 locked transponder

After enter transponder cloning function.
Please put transponder on transponder detection area and press [OK] to identification.

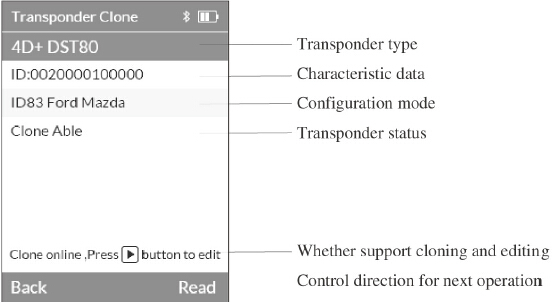

The identification result will be showed as below


Press for transponder editing
Use direction buttons to move cursor or revise editing content.Click on [OK] to confirm


Press for transponder cloning
Partial transponder cloning need to lgnition data acquisition first,other types on need to sniffer data,press [OK] to start sniffer data.


If data acquisition success will auto show the data,at the same time the buzzer will beep


Transponder password,or partial vehicle matching password
After cloning success,please press direction buttons 3 to view data details.
(used for no need password matching vehicle types:like BYD,or view Hyundai and KIA smart key matching password,etc special functions.)

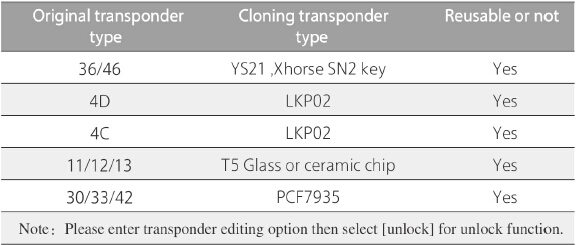

After get the transponder password success,different original transponder types should use different correct types transponder for cloning.Please refer to the following list:


2.Transponder Generating:
Support generating hundreds of vehicle immobilize transponder.ID36/ID46 special transponder can be generated by Xhorse SN2 universal (wireless remote) support reuse again.

Transponder generating funciton:brand-->vehicle model-->year/configuration.Please select [more vehicle model] to get the transponder type for next precess if can't find the proper vehilce model.
Attention:Partial special transponder maybe locked permanent after generated,please pay attention to the tool prompt.

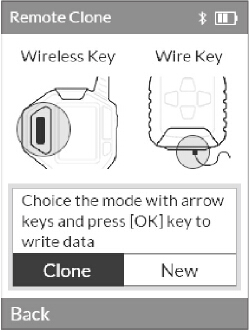

3.Remote Cloning:
Remote cloning includes HCS/fixed code cloning,non-HCS rolling code cloning and remote editing function.

HCS/fixed code cloning:
Support common fixed code cloning PT22XX,LX918,HT6P20,etc
Support hundreds of vehicle and garage HCS rolling code remote cloning and generating.Generated remote should be re-programmed to reveiver box.
Support all Xhorse Universal remote series.

Non-HCS rolling code cloning:
Support all fixed code remote cloning.
Support partial special vehicle model (such as Hornor) remote cloning without repeated code
Support partial vehicle non-repeated code HCS tyep remote direct cloning.
Note:This type only support cloning by Xhorse universal wire remote series.

Remote Editing:
Support editing PT22XX,LX918,HT6P20,VD5026,AX5326,HT12X etc.Common fixed code format data,and use Xhorse universal remote to emulate
Support all Xhorse universal remtoe series.

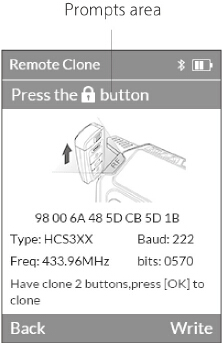

For remote cloning,in order to ensure the accuracy of frequency testing,please place the remote front surface close to remote testing area,and short press the relevant buttsons on remote as the device show you.Once receive data,evice will auto beep.During cloning precess,transponder type,baund,frequency and bits information are shown on the screen.
Attention:When the data cannot be reveived,please check the remote battery and make sure the orignal remote is ASK code.


When testing frequency maybe not accuracy,please use direction buttons to modify the frequency value manually when generating remote.


The HCS rolling code remote types may signal interface with original remote when cloning.Users can prepare new remote adapt to the car.When cloning remotes by SNseries (wireless) remote should be assembled with battery and placeed in transponder dection area,N series (wire) remote should remove battery and connected to remote programming port with programming cable.

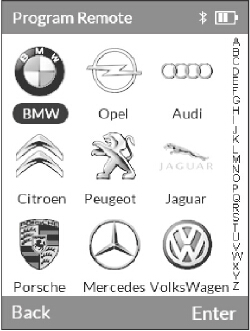

4.Remote Generating
VVDI Key tool build-in more than 1200 vehicle models remote data (increased continuously),remote pictures and matching information,user can select the relevant data file according to actual vehicle model use Xhorse universal remote and match to the vehicle control unit by programming.

The remote generating brand support personalized rank,users can press [OK] till the brand name becoming green and transparent,then use direction buttons to adjust the brand display position,press [OK] to confirm,press [C] to cancel and exit personalized rank mode

Attention:Some chip on board remotes only support Xhorse SN series remote.

When generating,SN series remote should be assembled with battery and placed in transponder detection area,N series remote should remove battery and connected to remote programming port with programming cable.


5.Garage Generating
This function is not available for current version;please use the remote cloning function to clone the garage remote.

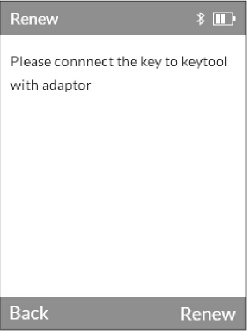

6.Renew Remote
VVDI Key tool build-in dozens of vehicle models for renew remotes (adding continuously),users can use renew adapter or soldering wires connect PCB to renew.

For renew remote function please contact your dealer get connection diagram.

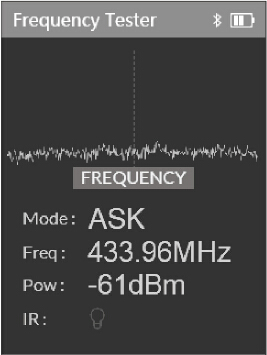

7.Frequency Testing
VVDI key tool supports 300-500MHz frequency,relative power,signal modulation and IR testing.
When testing frequency,user press remote button to transmit signal as below shown,the "green wave" moving at the left top of screen indicates that the frequency value and the modulation result are valid.When testing IR,please place the IR emitter head aimed at IR testing area,distance depends on signal strength,generally 15-80cm.A small red light will light on at the buttom of screen if the IR signal is detected.

Attention:If some FSK modulation remote cannot be tested,please short press remote button continuously for testing

8.Special Functions
All Key Lost testing
Place ignition data acquisition & signal testing close to vehicle ignition coil,if coil has transmitted signal the tool will beep means vehicle coil is working at the same time according to the transmitted signal tool prompts the transponder type used in this vehicle,support 36,47 and 4D,other types can not supported yet.

Toyota Smart Key Unlock
Support 40/80 bit original Toyota smart key unlocking,insert original smart key with battery and place on transponder detection area,press unlock button to start.LED light on key PCB flashing intermittently indicates unlock success.If failed,please retry until unlock success.

VVDI Special Transponder
Used to initialize Xhorse SN series universal remote keys for different types transponder,support 11/12/13/46/47,after initialize success can be used for generating special immobilize transponder and mtach to the car.

How to use VVDI Key Tool:

(Here take Generation of MG3 433 Remote Key for example)
1.Open VVDI Key Tool remote maker, select “Remote Generation”
2.Select vehicle country/ region,i.e China
3.Select Vehicle Make:MG
4.Select model: Old MG3 433
5. Connect VVDI key tool with VVDI Mini Remote Programmer, click on generate
6.Select corresponding remote type, wireless or wire remote
7. After select generation remote, vvdi key tool will generate barcode automatically , take a photo of the barcode
8.Use decode device to decode the remote key with the barcode.
The new generated remote is almost the same as original remote with barcode

VVDI Key Tool Remote Programmer Update Information:

VVDI Key Tool V2.4.1 Update Feature [2018-08-03]

1.Add VVDI universal smart key(PROX) generate.
2.Add PSA renew.
3.Fix remote frequency test.
4.Optimize remote clone.
5.Optimize ID48/ID46 transponder clone.

VVDI Key Tool V2.3.8 Update Feature [2017-07-16]
* * * * * * * * * * * * * *
Firmware version: V2.0.2
Attention: This update only for North American or India English version(na,na-en,in,in-en). Other languages will be released on next week, please get Device Info to check language version.
This version must be updated with V2.3.8 and above. The upgrade may take about 30 minutes
1.transponder clone
+add chrysler 4D-64(4E) clone
+add toyota-G offline clone
+add hyundai ID-70 online clone(Use Calculate option in upgrade software)
+add ford ID-83 online clone(Use Calculate option in upgrade software)
+add ID-4A identify
2.generate transponder
+add toyota-G to generate special transponder
3.remote renew
+add more than 86 remote&keyless go prox unlock
4.remote prepare
*fixed XN serial keys problem on ID47 such as suzuki
5.add more vehicles data and fixed some bugs

VVDI Key Tool V1.2.8(2017-04-26)

+ Remote Renew
-BMW-F.315*
-BMW-F-434*
-BMW-F-868*
-BMW-CAS-315
-BMW-CAS-868
-8k0959754-C (Does not turn on the LED light of the remote) - Possibility Incorrect firmware
-8k0959754-J (Does not turn on the LED light of the remote) - Possibility Incorrect firmware
-8k0959754-D (LED light is OK) - Not tested yet in car
-Hyundai (Do not detail model)
* Sure some models like F series, will not work, like to passed with VVDIprog. And Audi see error in the (C and J).
+ Remote Prepare. V4
-Iden KEYDIE - (PCF7947) None Remote.


Customers Feedback:

Recently customers feedback to us about VVDI KEY TOOL remote programming problem,customer can refer to following information:

1.Please update to latest firmware version 2.0.6 first [update software version 2.3.9](all different version released except India version)

2.When programming remote get prompt'Remote hardware version is too low'means your remotes must be Chinese version.chinese version remote only support in Chinese version device,
cannot support other version devices

3.All English version remotes can use for all overseas device(except India(in)/Malaysia(ma)/China(ch) version),such as Europe(eu)/NorthAmerican(na) they can use same version remotes

VVDI Key Tool Package List:

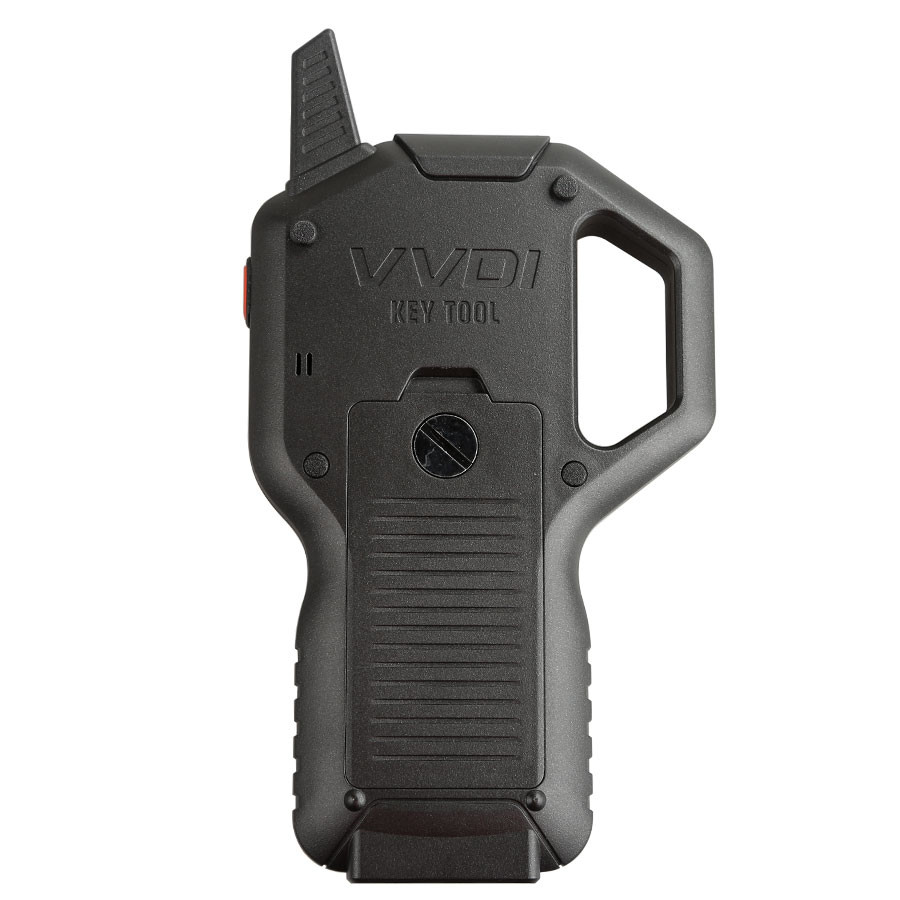

1pc x VVDI Key Tool remote maker main unit
5pcx Remotes keys
2pcx Programming cable
1pcx Remote renew cable
1pcx USB cable
2pcx Transponder storage box
1pcx Key blank storage box

Tags: Xhorse VVDI Key Tool , VVDI Key Tool ,
