When you use VVDI2 MB BGA TOOL to calculate password for BENZ vehicle, you need use tokens. For customer with Condor machine, factory provide one day one time service for free, for customer do not have Condor machine, must buy this token. You can add this token into your machine, so you can calculate at any time.

Password calculation can get key password through EIS and working key (online)

CAN protocol EIS all support password calculation

Support BGA keys and other NEC keys

Support calculate password for NEC v51, v57 keys. No soldering, safe method.

Data acquisition time depends on the key version. It needs about 3.5 - 13 minutes

BGA version need about 5 minutes, some versions only need 3.5 minutes

Calculate time in server: 30 seconds – 1 minute

W164

W164 2009-

W166, 197, 212, 218, 246

W169, 209, 211

W172, 204, 207

W216

W221

W639 2009-

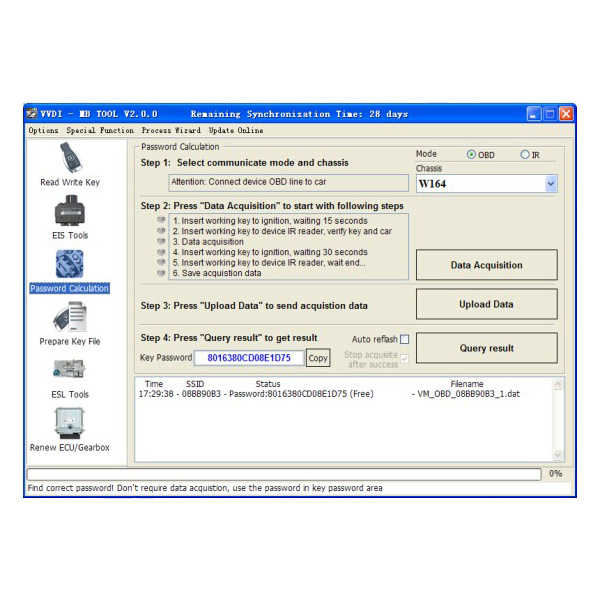

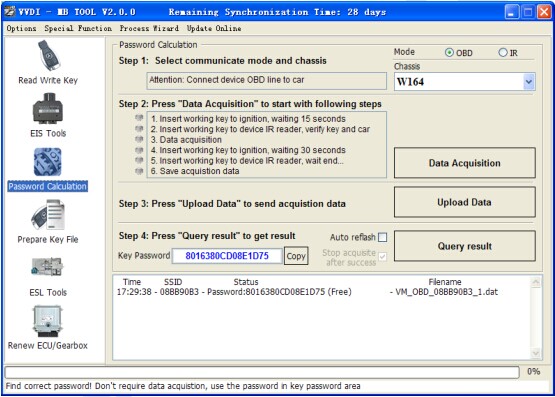

Mode: OBD and IR adaptor, mode use for communicate with EIS

Chassis: Select chassis number, you can detect it with auto detect in EIS Tools

1) Insert working key to ignition, waiting 15 seconds

2) Insert working key to device IR reader, verify key and car

3) Data acquisition

4) Insert working key to ignition, waiting 30 seconds

5) Insert working key to device IR reader, wait end...

6) Save acquisition data

Upload Data: Upload saved acquisition data to server for calculate password.

Attention:Once success calculate password for one SSID, the server will not accept calculate the acquisition data with same SSID in 2 hours. After 2 hours, acquisition data with same SSID upload to server will start with a new task

Query Result: Query server calculation result. The password will fill in key password area automatically after success calculation. Use “Copy” copy password to clipboard

Auto Reflash: Program will auto re-flash server result until there’s no task for this device.You can start data acquisition once more while auto reflash starting

Stop acquisite after success: If you are run data acquisition while auto reflash running,program will stop the acquisition progress when find correct password

Query result support query calculation result in 24 hours, others don’t support Query result will display Time, SSID, Status, Filename (name when upload to server)

1) Queuing: number x, require about y minutes, means your task need y minutes

2) Processing: requires 1 minutes, means your task need 1 minute to finish

3) Password: xxxxxxxxxxxxxxxx (Free), means success find password, “Free” show this task is calculated for free or this task already success calculated before

4) Discard: Once you success calculate the password, in 2 hours, the upload acquisition data with same SSID will discard

5) Already upload: means the server already have this file in queuing

6) Pay for password calculation before upload: means your device doesn’t have authorize for calculation. Contact your dealer and pay for password calculation

7) Failed: means this task failed to get password, you can run data acquisition again.Failed task is always free
