Original Vident iSmart900 Automotive Diagnostic & Analysis System

Vident iSmart900 is a IP65 rated, windows tablet based scan tool featured with intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component tests, component calibration, module coding and programing. It utilizes a 8“ high resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 32GB hard drive and a Intel Quad-core processor that delivers boot-up in less than 30 seconds, the multitask-capable windows 10 Operating System to offer you the best intuitive user interface and user-customizable configuration. With an unusual combination of sophistication and simple operation, iSmart900 is suited to any tech—from rookies to seasoned diagnostic specialists.

Vident iSmart900 Software Features:
• Complete capabilities for codes,live data,freeze frame,functional tests,ECU information and coding for dozens of vehicle system etc.
• OEM-specific coverage for over 80 American,European and Asian makes from 1996 to 2017
• Automatic VIN identification for easy vehicle communication
• System Detection-detects only the systems that are specific to your vehicle and reads for error
• One-toch vehicle code Auto scan and clear quickly checks and clear codes for all available modules on the vehicle.
• Ability to record all available live data parameters and graph any four on screen at once
• Study and compare mode of Live data-real time data can be compared against known good measurements
• Direct Access to the most common required special functions such as oil service,EPB,ABS & SRS BCM/SIR setting etc.
• Comprehensive data manager can store thousands of vehicle records,customer data,vehicle IDs,fault codes,repair notes and diagnostic results
• Interactive Data Logging sessions and remote control enable direct contact with Vident Technical
• Support for first-hand bugs troubleshooting
• Hight compatibility windows operation system for more applications such as oscilloscope,video scope,OE technical data.
• Three year free diagnostic softwaer update.

Vident iSmart900 Hardwear Features:
• 8" high-resolution 1280x800 capacitive touch screen for a detailed view IP65 Rated tablet
• Front and rear built-in camera to save and share photos for your repair records dirtproof
• Wireless Bluetooth communication with vehicles within up to 70~100meters working range dirtproof
• Dual band WIFI to access your favorite web resources dirtproof
• Built-in rechargeable lithium-ion battery for up to 10 hours of continuous operation dirtproof
• USB, audio, HDMI and auxiliary ports make it easy to connect accessories dirtproof
• Secure, solid-state 32GB hard drive and Intel Quad-core processor
• Built-in 3G SIM card slot allowing internet access even on the move
• With GPS Location module
• TF card slot for extensive memory

Vident iSmart900 Window Tablet Overview:

1. Scan Button –锛圫canning is not available on this device锛?
2. Lock/Power Button –Turns the device on & off with long press, or locks the screen
with short press
3.Volume Up
4.Volume Down
5. Front-Facing Camera
6. Headset jack
7. HDMI (high-definition multimedia interface) Port
8. Micro USB port
9. USB 2.0 port
10. SIM card tray
11. TF card tray
12. DC/AC power jack

VIDENT iSmart900 Functions:

Diagnostics - complete capabilities for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle systems
Service Functions - performs variety of most common service functions including oil service and mileage interval reset, EPB, ABS & SRS, BCM/SIR seting, DPF regeneration, throttle body alignment, steering angle sensor calibration, battery configuration, etc
Fast Diagnostics- Automatic and manual VIN identification for easy ECU accessibility. One-touch Auto scan with read and quick erase-codes options and automatic vehicle-specific system detection, meaning you won't have to waste time scanning through data that is not relevant
Live Data - Customised text and graph live data with ability to record all available live data parameters and graph any four on screen at once.
Study and compare mode of Live data - real-time data can be compared against known good measurements
Data Manager - Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results
Data Logging - Interactive Data Logging sessions and remove control enable direct contact with Vident Technical

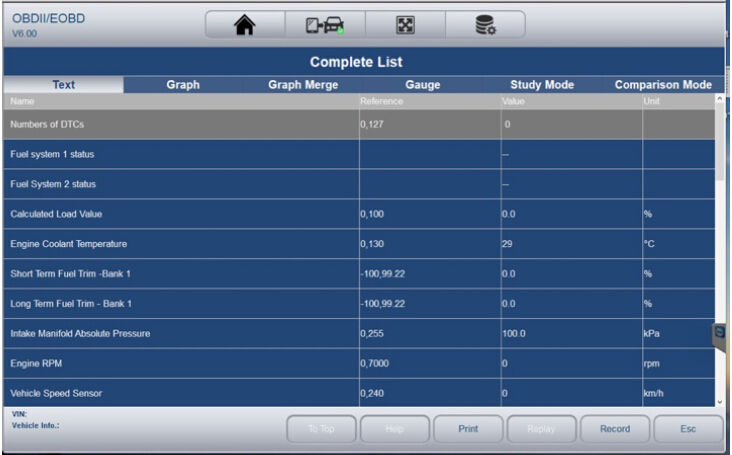

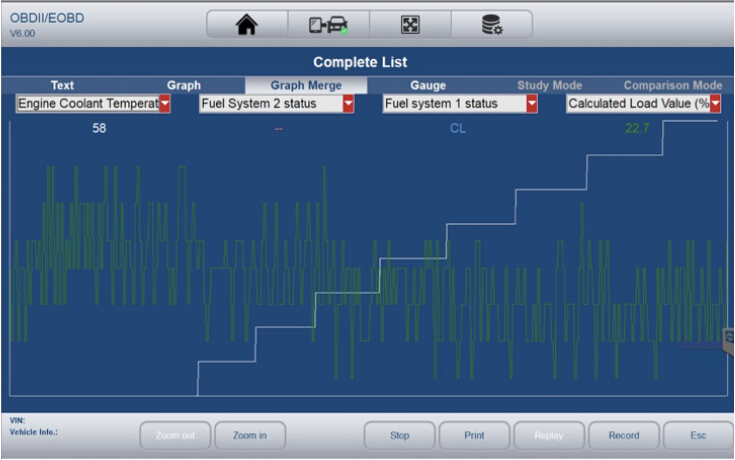

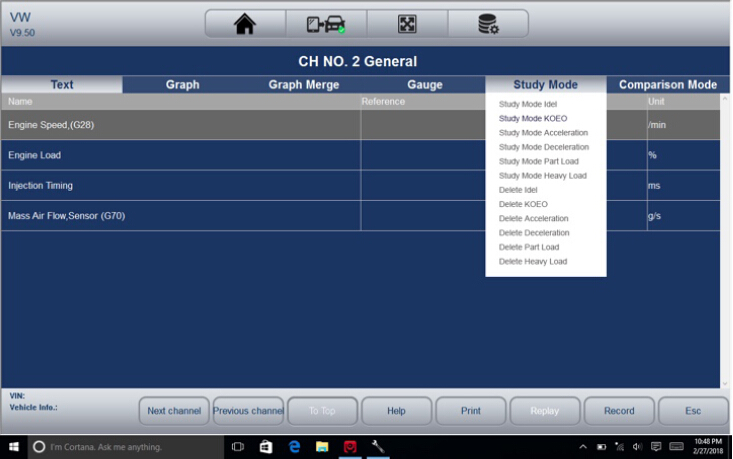

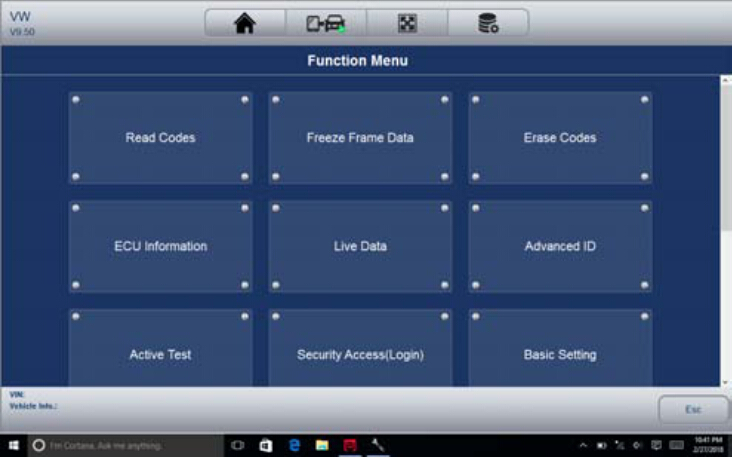

Vident iSmart900 Diagnostic Screenshoot

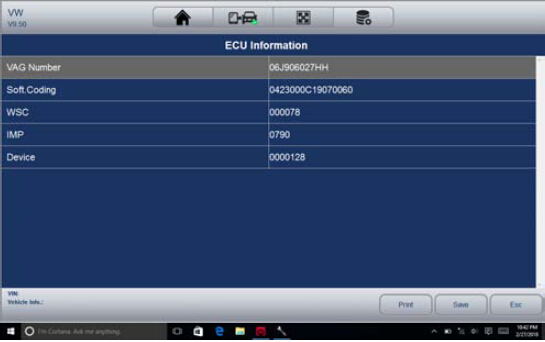

ECU Information




How to Build Connection Between Vident iSmart900 and Vehicle:
Through simple Bluetooth communication between VCI connector and iSmart900 handset, this windows 10 based diagnostic system provides professional diagnosis on more than 80 American, Asian and European vehicle makes. It has access to a vast range of controllers (ABS, airbags, instrument cluster, etc.), live sensor data, and system/component-level bi-directional controls to get the job done faster and with a
greater degree of accuracy and prevent dreaded “comeback”. In addition, it has access to the most commonly required service and programming functionality.

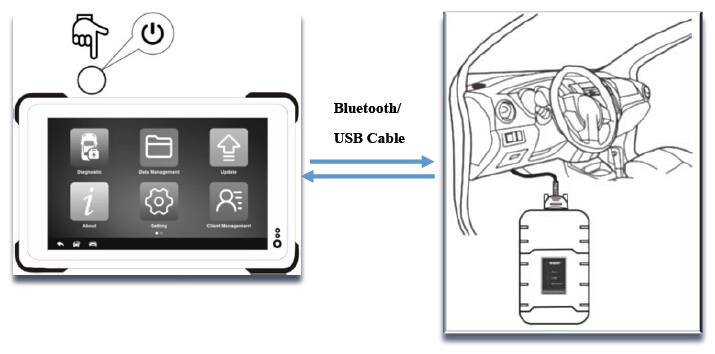

Below is a diagram showing how iSmart900 works.

Connect to OBDII vehicles
1. Locate the DLC.
2. Connect the VCI with the diagnostic cable provided. Connect the
diagnostic cable with the OBDII connector. Insert the OBDII connector into
the vehicle’s DLC.

Connect to NON-OBDII vehicles
This type of connection requires both the VCI device and a required OBD I
adapter for the specific vehicle being serviced.
1. Locate the required OBD I adapter and connect its 16-pin jack to
the diagnostic cable.
2. Connect the attached OBD I adapter to the vehicle’s DLC.
3. The VCI can be powered from the cigarette lighter when necessary.
4. Plug the DC power connector of the cigarette lighter into the DC power
supply input port on the VCI.
5. Connect the male connector of the cigarette lighter into the vehicle’s
cigarette lighter receptacle.

Vident iSmart900 Specifications:

Operating system:	Windows 10 home
Processor:	Intel Baytrail-T (Quad-core), Z3735F, 1.33GHz-1.92GHz
Memory:	2GB RAM & 32GB ROM
Display:	8.0", 800 x 1280 IPS LCD touch screen
Connectivity:	WIFI 802, 11 (a/b/g/n) frequency 2.4G + 5.8G dual band WIFI Bluetooth 4.0 TF card slot (support SDHC/SDXC, maxium 128G) USB 2.0 interface, 1.4a Type C HDMI
3G Frequency:	WCDMA (900/2100MHz), GSM (900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface
GPS:	U-blox NEO-7 (support GLONASS, QZSS, GPS), Capture sensitivity of -160dBm, frequency of 0.25Hz ~ 10 MHz
Touch Panel:	Multi-points capacitive, G+G, Rigidity of above 7H-Anti-scratch, TP thickness of 1.1mm, COF, support handwriting
G-sensor:	Gravity acceleration sensor
Rear Camera:	5:0MP
Front Camera:	2.0MP with indicator light
Audio Output/Input:	3.5mm diameter standard earphone jack, output resistance of 2.2kOhm
Power and Battery:	3.7V/8500mAh polymer Li-ion battery
Input Voltage:	DC/12V (9 ~ 35V)
Operating Temperature:	14 to 131鈩?/td>
Storage Temperature:	-4 to 158鈩?/td>
IP Rating:	IP65
Dimensions (W x H x D):	21.26" x 15.35" x 5.11"
Weight:	12.63lb

How to Solve Vident iSmart900 No Communication Trouble:

If the tablet is not connected to the VCI, the error indicator in the VCI would display. Please do the following check-ups:
• Check if the VCI is powered up.
• In case of Bluetooth connection, check if the Bluetooth device is paired correctly. Check if the name of the paired Bluetooth device is same to that
on the VCI sticker.
• If during the diagnosis process, the communication is suddenly interrupted due to the loss of signal, check if there is any object that causes signal
interruption.
• Check if the VCI device is properly positioned.
• Try standing closer to the VCI device to obtain more stable signals, and faster communication speed.
• In case of Bluetooth connection, check the cable connection between the Tablet and the VCI device.
• Check if the Connection indicator on the VCI device is illuminated for Bluetooth or USB.

Vident iSmart900 Package Includes:

iSmart900 Main Unit
Bluetooth scanner module
Mercedes Benz 38pin Adapter
PSA 2pin Adapter
Fiat 3pin Adapter
GM/Daewoo 12pin Adapter
DMW 20pin Adapter
Kia 20pin Adapter
Mitsubishi/Hyundai 12+16pin Adapter
Nissan 14pin Adapter
Honda 3pin Adapter
Toyota 17pin Adapter
Toyota 22pin Adapter
Mazda 17pin Adapter
Audi 4pin Adapter
AC/DC Power Adapter (12V)
Diagnostic Cable
User Manual
Carrying Case
Clip Cable
CD
Cigarette Lighter

Tags: Vident iSmart900 , iSmart900 ,
