Volvo 88890180 Interface is developed for Volvo/Renault vehicles and engines and enables PC to vehicle communication via a USB cable or by wireless LAN using the 802.11 b/g standard.

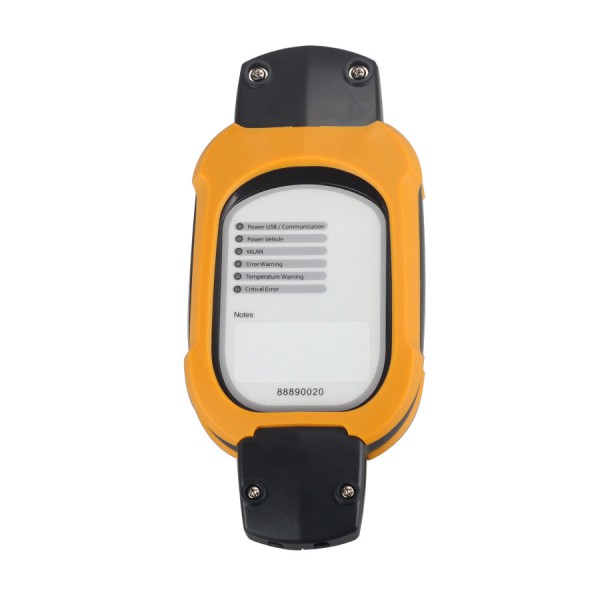

Volvo 88890180 Interface has a number of different colored LEDs, which show the status of the communication unit and indicate warnings, etc.

English, Czech, Danish, German, Spanish, French, Italian, Hungarian, Polish, Portuguese, Romanian, Serbian, Slovenian, Turkish, Russian
2. Connect via both USB Cable or Wireless Lan
3. Support Volvo Trucks, VOLVO CONSTRUCTION EQUIPMENT (CE), RENAULT TRUCKS (with DXi engines)
4.Newest Version: V2.01

Operating temperature range: -40 to +85°C.

Storage temperature range: -40 to +125°C.

1. Connect the communication unit to the vehicle.

2. Connect the USB-cable between the communication unit and the PC.

3. Select communication unit 88890180 and USB-cable setting in window Alternative.

Note: Your PC must have Wireless LAN 802.11b/g adapter and support 128-bit WEP encryption. The WEP-key is generated automatically and is not seen during the configuration.

1. Connect Volvo 88890180 (VCADS) interface to the vehicle.

2. Select communication unit 88890180 and Direct to communication unit in window Alternative.

Note: Contact the local IT-support or network technician before installation.

1. Connect Volvo 88890180 (VCADS) interface to the vehicle.

2. Select communication unit 88890180 and Via an access point in window Alternative.

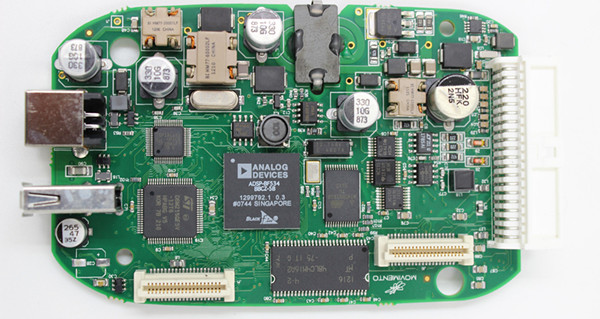

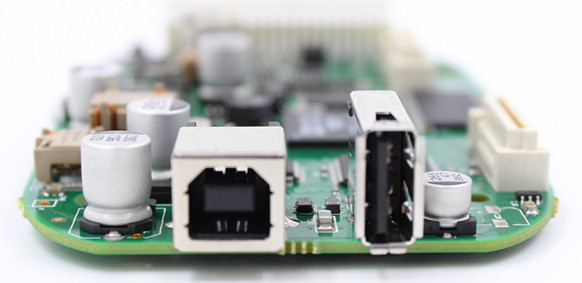

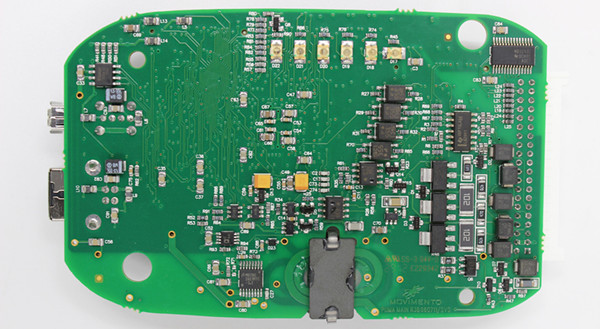

VCADS 88890180 PCB Board

AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12

VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F

Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D

Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611

Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990

Compact Excavator: ECR88

CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510

1pc x Volvo 88890180 (VCADS) Auto Diagnostic Interface Main Unit

1pc x OBD2 Cable
