VAS5054A ODIS Engineering Software V6.7.5 Win7 System No Need Activation

Work together with VAS5054A.
Attention: Please change date to January 1st, 2017 (UTC-8:00) Pacific Time (US & Canada) before installation.

How to Insatll ODIS-Engineering 6.7.5 Software

Step 1: Install Setup Assistant
Change date and time
Change date to January 1st, 2017 (UTC-8:00) Pacific Time (US & Canada)

Open ODIS-E 6.75 software CD

Copy 6.7.5 kg-pass 123 zip file to desktop

Extract zip file on desktop with encrypted password: 123

Delete zip file on desktop
Copy 6.75 (engineering) folder to desktop and open it
Open OffboardDiagSetup-Engineering_6_7_5

Select setup language
Install ODIS-E setup assistant
Click on Next
select Target folder
click Next
select a directory C:/ODIS-DIAG-MODULES-ENGIN
click on Next
select diagnostic interface: VAS 5054

A bluetooth pairing must be established to use the vas5054, click on Next
License file selection

search desktop->宸ョ▼ 6.7.5 folder->license.dat
click next
Tick create a folder in the start menu
click Next
installing Offboard Diagnostic Information System Engineering

install Microsoft Visual C++2005

Accept the windows security warning by clicking on Install
Finish install Setup assistant
Restart the computer

Step 2: Register ODIS-E 6.7.5
Delete VW-MCD-PDX-Builder file on desktop

Start-> All Program-> Offboard Diagnostic Information System Engineering folder ->Send Offboard Diagnostic Information System Engineering software to desktop

Start-> All Program->Softing D-PDU API for VCIs V1.20.037 folder->send EDIC Configuration Manager to desktop

Right click Offboard Diagnostic Information System on desktop open Properties->Open file location
Open 宸ョ▼ 6.7.5 folder on desktop

Copy and replace OffboardDiagLauncher on Offboard Diagnostic Information System desktop folder
Open Offboard Diagnostic Information System software on desktop
Software will require to enter registration key
Open 宸ョ▼ 6.7.5 folder on desktop
Open key generator

enter registration name: abc
Copy Hardware ID to key generator and click on Generate

it will generate registration key
paste the key to software Key area
click Register

Step 3: Download Postsetup
open ODIS-E postsetup
select local directory

C:/Users/AADD/Desktop/6.75 Engineering-> Database->ODIS_Engineering

if software prompt “no valid software configuration could be found”, select the destination

C:/Users/AADD/Desktop/6.75 Engineering-> Database
click next
select Postsetup language
check postsetup version:67.5.10
Press next icon to download postsetup

download completed will launch software automatically

Step 4: Test Software
Select Admin->Diagnostic data
open C:/Users/AADD/Desktop/6.75 Engineering-> diagnostic data->AU (Audi)->ODXUPDATE

Select LB (Lamborghini, Bentley),SE (Seat),SK (Skoda),VW ODXUPDATE on by one

Connect VAS 5054a with computer by USB

Open Computer->Manager->Device Manager->Softing Vehicle Interface->VAS5054

Open EDIC Configuration Manager
Current connection is USB connection

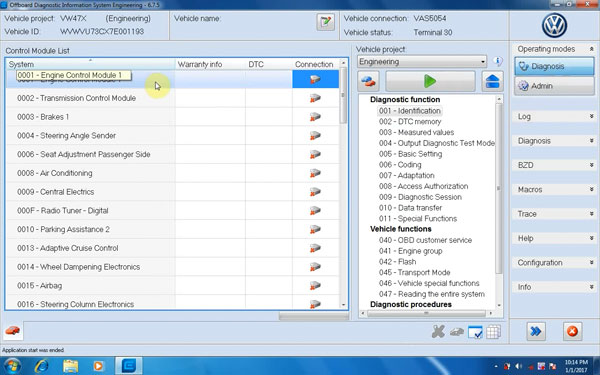

Open Offboard Diagnostic Information System Engineering software on desktop
click on Diagnosis

Coding function

special functions, i.e ECU programming, application programming etc

Step 5: Pair Bluetooth
Installing device driver software
device is ready
select Bluetooth icon,add a device VAS5054
enter the device pairing code: 082145725
click on Next
this driver has been successfully added to this computer
Open EDIC Configuration Manager-> Add a new device
select COM Port 4
Bluetooth connection and com port setup success.

Run ODIS-E 6.7.5 software and diagnose vehicle.

FAQ:
1. What are the major differences in using ODIS-S and ODIS-E?
Basically, ODIS-S (Service) is for Diagnostics and ODIS-E (Engineering) is for module programming
the latest ODIS-S is 4.1.3, the latest ODIS-E is 6.7.5

2. Odis engineering 6.7.5 licence problem how to solve?
Change the date of the computer and change it for the first two or three months
