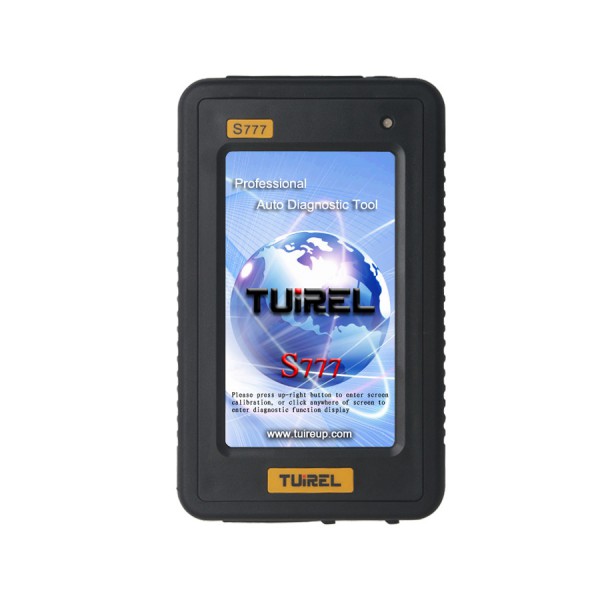

Tuirel S777 is a hand-held auto scanner that can help you trouble-shoots all the electronic systems of your vehicle efficiently, it鈥檚 much more than an OBDII scanner with multifunction, it approaches and competes with professional auto diagnostic tools. It integrates the needs of DIY users and professionals with selectable vehicle software and high frequency of update.

Top 4 Reasons To Get Tuirel S777

1. Tuirel S777 With total 46 car software which you can download here.

4. Dealer Code is F000001

Notice:

1. When you update Tuirel S777 Auto Diagnostic Tool, you should do as our video. Please never format the SD card, otherwise, the device will prompt no data.

1. Read and clear codes on ALL electronic systems.

2. Supports all OBD II protocols, Can (Controller Area Network) and all test modes including Read Codes, Erase Codes, Freeze Frame, I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information.

3. Faster and stable diagnostic speed with unique new platform.

4. High frequency of update up to professional auto diagnostic tools

5. High definition touch display provides high sensitivity with screen locking/unlocking function.

6. Capture, save and print screenshots for convenient troubleshooting.

7. Support mass storage SD card.

8. Compact and attractive housing with protective rubber case makes it more durable and impact-free.

1. Communication test of CAN-BUS and K communication cable.
Support following protocols: PWM, VPW, KWP2000, ISO9141, CAN-BUS

2. Basic Function:

1) Read ECU information

2) Read trouble code

3) Clear trouble code

4) Read DataStream

5) Component test

1pc x Tuirel S777 Interface

1pc x Tuirel S777 OBD2 Connector

1pc x SD Card

1pc x USB Cable

1pc x Stylus

1pc x Screen Protector

1pc x User's Manual

Tuirel S777 FAQ:

Q1: How to do if update tool cannot read serial number and select software when I use a USB cable to upgrade under [Removable disk] readable condition?
A1: Turn on Tuirel S777, click [Setting], there is tool serial number, check if the serial number is the same as the one of software you downloaded.

Q2: How to do if I pull out USB cable during upgrade?
A2: Reconnect the tool with computer by USB cable, click [Update] in Tuirel S777 update tool to re-upgrade.

Q3: How to do when popping [Cannot read serial number] while I am clicking [Browse] to select software folders in update tool during update by a USB cable?
A3: Please double click [My computer], if computer fails to read [Removable Disk], it means that you computer cannot read the device. Please save needed files and pull out the USB cable, restart the computer and connect again by USB cable.

Q4: After finishing software update, it needs to be restarted to update to the tool, how to do if connection being cut off while S777 is updating?
A4: If this happens, the tool cannot start up, you will need to contact manufacture or distributor, a [S777loade] file will be provided by manufacturer, after receive the file, the operation will be as follow:

(1) Connect tool with PC by a USB cable and press the shortcut key at the same time, S777 will be powered up and the light at up-right corner will be red and in quick blink. When you see this, please stop pressing shortcut key.
(2) Open [My computer], you will see a removable disk named [CARE ENABLE], double click to enter the disk, you will see a file named [S777loade].
(3) Copy the [S777loade] that provided by manufacture to overwrite the previous one.
(4) After overwrite the file, close the removable disk and disconnect tool with PC.
(5) Connect tool with PC again (Note: do not press shortcut key this time), wait for few seconds, tool will be powered up and enter to start display automatically.
