Intelligent Tester IT2 for Toyota and Suzuki without Oscilloscope

Software Version: V2017.1 Software For Toyota Software For Suzuki
Supported Languages: English/Germany/French/Spanish/Italian/Chinese

Intelligent Tester IT2 Function:

1. All type of Toyota(made after 1996) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.
2. DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
3. CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
4. Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation
5. Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
6. Data recording to your PC saved data such as data-list can be downloaded to your pc

Specification:

1. Feature
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH

2. Character
Touchscreen & back lighting control
Easy & quick
User needn't worry about the after service since factory has an open patio for maintenance.

Product List:

1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
7. Card--3pcs

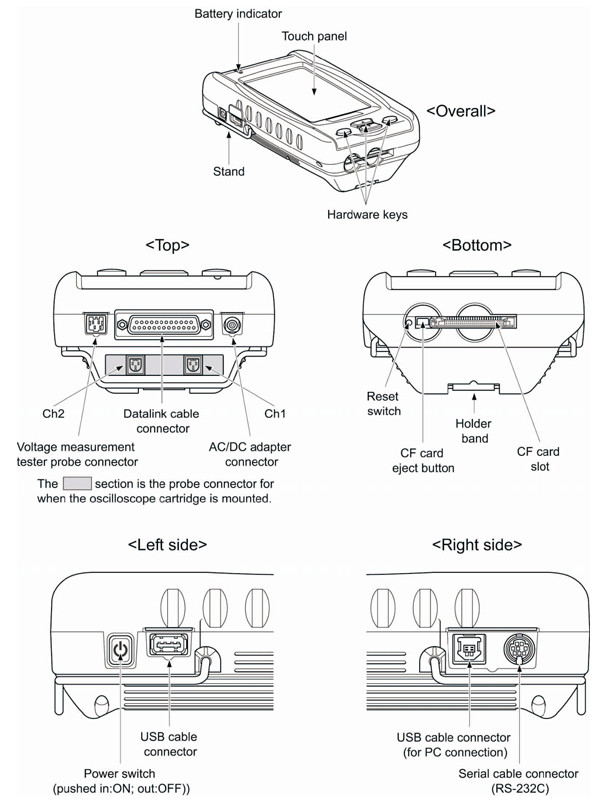

Intelligent Tester IT2 Names of the Parts:

The names of the Intelligent Tester II parts are as follows:



After Service:

1. Guarantee: one year, from the date equipment arrival
2. Upgrade free for one year
3. Upgrade method: CD

Tags: toyota it2 progrmmer , it2 progrmmer , it2 for toyota and suzuki ,
