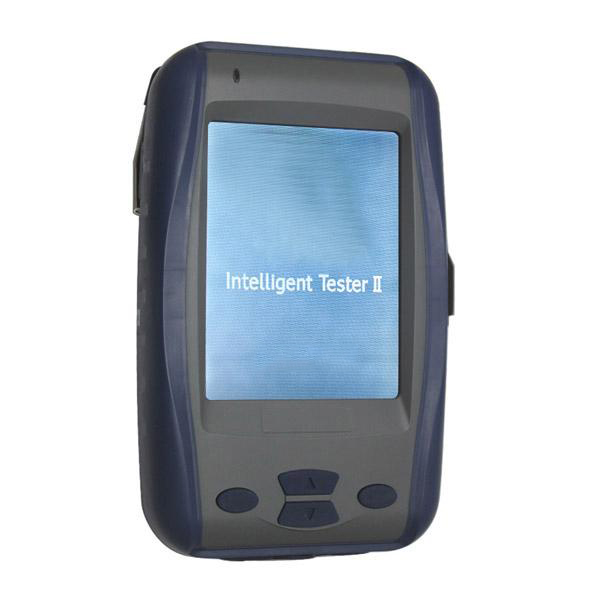

Denso IT2 V2017.1 Intelligent Tester2 for Toyota and Suzuki with Oscilloscope

Top 3 Reasons to Get Toyota Denso IT2

1. Software Version: 2017.1
2. Supported Multi-Languages: English, French, German, Italian, Spanish, Chinese
3. Update By Software Card. [when you want to update yours, just need to buy the Latest Software Card

Notice:
1. This Toyota IT2 Can only Do North America Area Suzuki. If you want professional Suzuki diagnostic tool, Please Choose GM TECH2+ Suzuki 32MB Card.
2. Computer System Requires: Windows XP System

Denso IT2 for Toyota Functions:

All type of Toyota(made after 2000) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.

1. Main Function

Read wrong code
Clean wrong code
Reade data stream
Draw data stream curved shape
Setting system
Control unit programming
Self test function
Record and review function

2. Test System

Engine
Automatic transmission
ABS
Controlled traction differential
Stability control
Airbag security
Central doorlock
Meter cruise suspension air-conditioning
Electronical control turning system

3.Vehicle Oscillograph

SMT and execute component
Dual mono oscillograhp
Setting time base & electrical level automatically
Storage & playback

4. Digital Multimeter

Electrical system test
Voltage frequency duty cycle

Denso IT2 for Toyota Specification:

1. Character:
1) Touchscreen & back lighting control
2) Easy & quick

2. After Service:
1) Guarantee: one year, from the date equipment arrival
2) Upgrade free for one year
3) Upgrade method: Email

SUZUKI SDT Examples for Testing the Vehicle

SUZUKI SDT is the SUZUKI company professional diagnostic tool for the Suzuki car. It have diagnostic function,oscillograph function, multimeter function.
It's a very usefull machine to help you repair the SUZUKI car.

1. Equipment Online
1) turn on the equipment power
2.) to be connected with OBD diagnostic cable

2. Star the Equipment
Turn on the power,entering into the interface then click the "automation"button

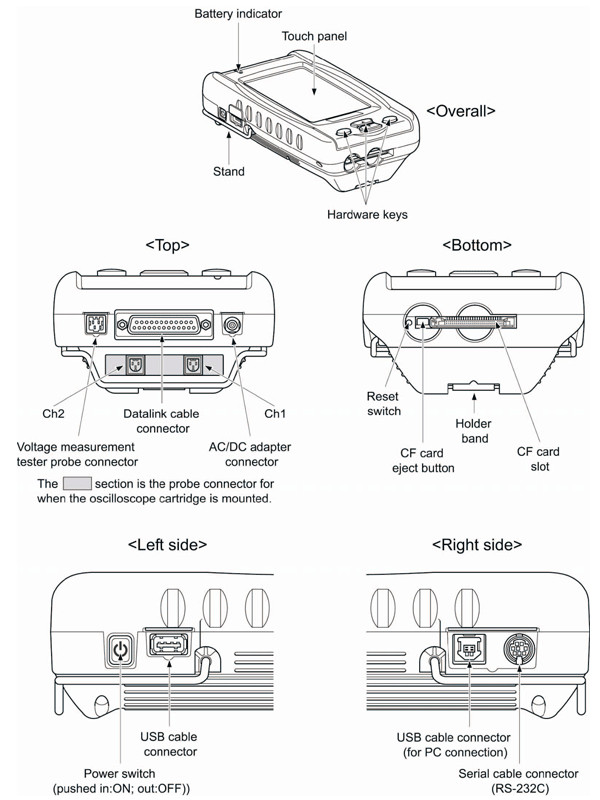

Toyota ITS2 Names of the Parts:

Package List:

1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
7. Card -- 3pcs(V2017.1 Toyota, V2017.1 Suzuki and Blank Card for backup)

FAQ:

Q1: Is Denso IT2 with CF card?
A1:yes, Denso IT2 is with CF card, there is a CF card slot at the back of Toyota IT2 main unit. When you use the main unit, please do not take it off, CF card is used to store the tested result. Please refer "Toyota ITS2 Names of the Parts".

Q2:Is this new and with the oscilloscope too?
A2: Yes, it is with oscilloscope .

Q3: Can i use this product to do airbag coding?
A3: Yes,you can.It can do airbag coding and simple ecu programming.

Q: How many pieces of card in the package of Denso IT2?
A: There are 3pcs of cards: Toyota card, Suzuki card and one blank card for backup, as for the software version, please pay attention to our newest notice.

Q: Does Denso IT2 have touch-screen calibration?
A: yes, it has. The touch-screen calibration is optional in the menu bar.

Q: Which tool can make key and program ECU for Toyota 2010-2012?
A: Advice you use Allscanner IT3, Denso IT2 and X-VCI Toyota.

Q: Can Denso IT2 read smart key information?
A: Yes, it can program key but can’t read smart key information.
