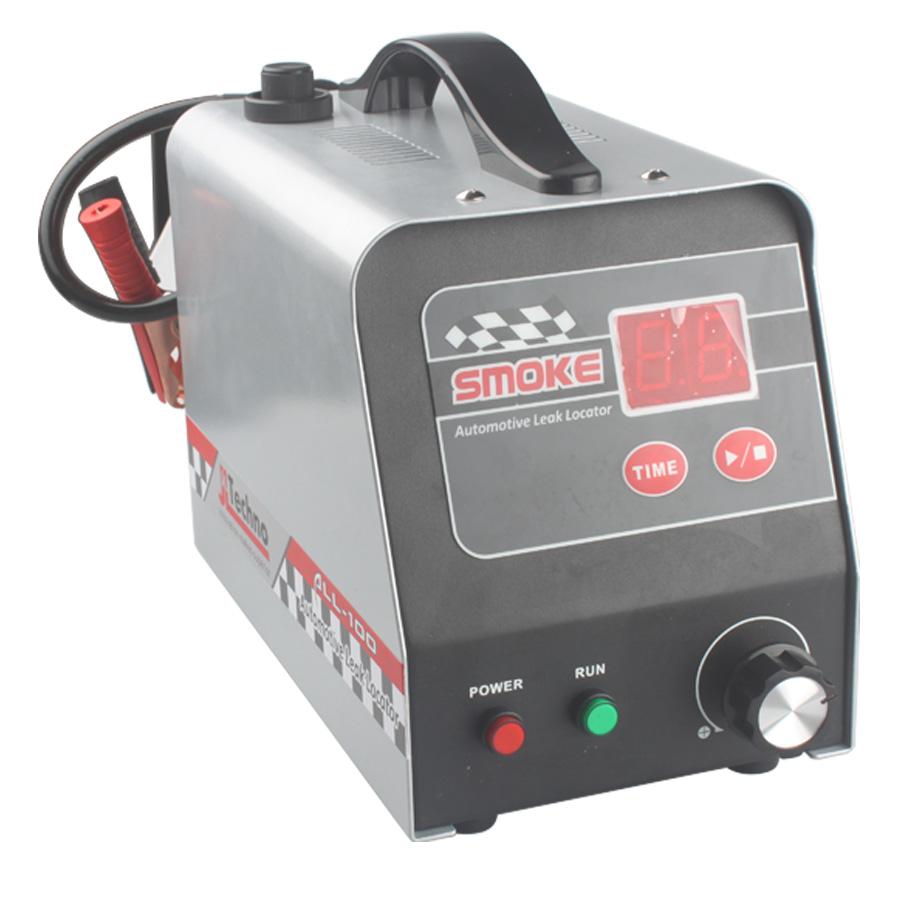

Smoke Automotive Leak Locator ALL-100

Professional, Flexible, Affordable

Professionel:

Easy to Operate
Fast in helping locate the leak
Multi-functional
Adjustable LED function time control
Adjustable flow control
Inbuild air compressor
Stable output pressure
Best mate for automotive scanner
Time saving features:
Help locate the leak position on all vehicle systems in about 5 minutes

Flexible:

With inbuild air compressor, and power supplied by 12Volt vehicle battery, its the best tool for leak locating regardless of the working condition.

Affordable:

Unbeatable price / performance ratio
Designed for long time use

Target customer:

Car manufacturer workshops, Independent Workshop or tire service shop, garages etc. where Professional, reliable and affordable equipment is needed.

ALL-100,the Smoke Automotive Leak Locator is a handy new generation of automotive system leak locator.ALL-100 use Mineral Oil to generate smoke. the oil is possible to get at drug store, or supermarket(Mineral Oil based baby Oil) , a 30 ML refill will be enough for test for 40 times( varies, depend on how long the user operate the equipment for each test.)ALL-100 is a one-time invest for a workshop or garage,but will help so much in work.

Specification:

Testing Pressure: 0.03~0.035bar
Air flow control: 0.1~0.5 L/MIN
Power supply : DC12V, 7A, 85W

Requirements on Surroundings

Ambient Temperature - 20°C ~ + 50°C
Relative Humidity ≤ 90%

Simple To Operate

The Smoke Automotive Leak Locator is easily controlled
with a timer setting and flow control. Set the timer then the machine will generate smoke, and control the flow with the flow controller The output is regulated to 12~14 Inches of Water Column,this pressure is perfect to perform leak test of EVAP system and other automotive systems with no damage to the vehicle sealing.

Function time setting:

From 1 minute to 20 minutes
Start/Stop button
Flow Control

Save time and fast leak detect

In most cases, a scan tool may find out pressure sensors abnormal etc., while actully the 'pressure low' problem is caused by leak somewhere.

Multi-function

The Smoke Automotive Leak Locator is a multi purpose tool essential for EVAP system, but also applicable for: EGR valves, Gaskets & Fittings, Hoses, Worn Throttle shafts,Break Boosters, Catalytic Converters, Oil Leaks, Lamp Housings, manifolds and more....
LED time indicator, Adjustable air flow and 1 ~ 20 minutes adjustable operating time
Adjustable timer and air flow to perform leak test ondifferent system that requires different flow amount.

Inbuilt air compressor
Performing leak test with no air compressor, which may
not be available for every workshop.

Various fittings
For different application needs

Note:
In considering the complexity of chemical exportatation, in the package there's no mineral oil included, user could buy mineral oil at drug store or
simply use a bottle of mineral oil based baby oil.

Package List:

Main unit*1
Cap Stopples*17
Schrader Valve Removal Tool*1
Exhaust Cone Adaptor*1
OBD-II Service Port Adaptor*1
Bottle Oiler*1
Flashlight*1
