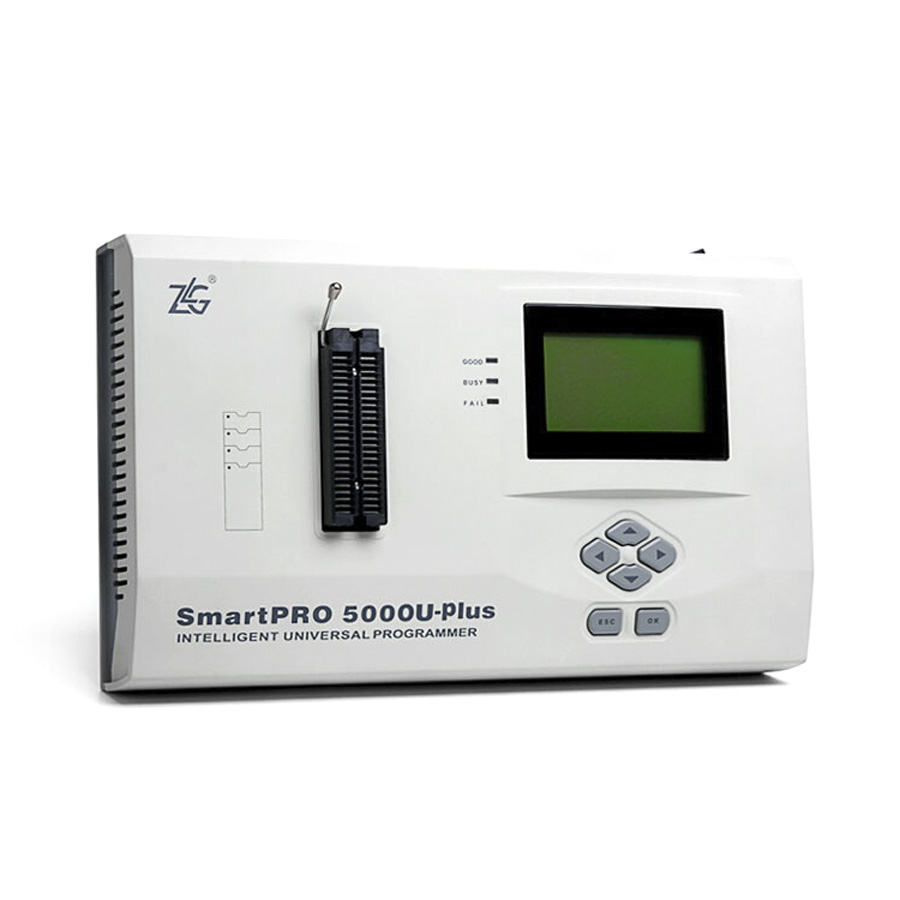

Original Wellon SmartPRO 5000U-PLUS Universal USB Programmer

SmartPRO 5000U-PLUS programmer is High-speed FPGA driven hardware for ultra-fast programming, which is designd for versatile multi-applications.

Descriptions of Original Wellon SmartPRO 5000U-PLUS Universal USB Programmer

1.It is High-speed FPGA driven hardware for ultra-fast programming,
2.SmartPRO 5000U-PLUS programmer design for versatile multi-applications, You have freedom to choose the optimum mode for your programming demands.

SmartPRO 5000U-PLUS Universal USB Programmer

Top 3 Reasons To Get SmartPRO 5000U-PLUS Programmer

1. Patented I / O port drive technology, eliminate IC programming burning

Due to universal programmers are requires compatible chips, the requirements for the programming I / O port has been raised to a high level.Brand-new I / O port drive technology enables each I / O port of the universal programmer to pass high-speed signals, suppress overshoot brought by the high-speed signal, protect over-current, provide adequate and sustained output current, bear bus collision and has the ability of quickly recovering from conflict status.

2. ICP online programming, makes it easier to use and more flexible

Separate ICP download line interface is able to program chips on the circuit board online. While the offline programming mode ICP, without connecting to a computer, users only need to get the data stored in the built-in DOM. With few ICP scattered lines, it is potable for the spot debugging or a program upgrade.

3. Massive IC support, provides timely timing upgrade

The SmartPRO 5000U-PLUS programmer is now compatible with various types of MCU / Flash / CPLD / FPGA chips, etc relies on good relationships with the major manufacturers. It also provides a variety of new chips programming ability accurately and timely which will satisfy our customers' needs to greatest extent.

SmartPRO 5000U-PLUS Specification:

Type	SmartPRO 5000U-Plus
Support device	EPROM, Paged EPROM, parallel and serial EEPROM, FPGA Serial configuration PROM, NOR FLASH and NAND FLASH reservoir, BPROM, NVRAM,CPLD, MCU, Firmware HUB, ARM. standard logic devices(TTL\CMOS) etc, device operating voltage:1.8~9V
Encapsulation	DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP etc
Online communication interface	USB 2.0(High Speed)
Configuration Options	adaptor, CF card
Power Input	AC 100V-240V/47-63Hz
Power Output	12V/2A
Dimension-Main Unit	280mm×170mm×57mm (L×W×H)
Built-in DOM	32Mb×1(default)
CF card	1(optional)
Operating system	Windows NT/2000/XP/Win7/VISTA

SmartPRO 5000U-PLUS software is lifetime free update.

Package including:

1pc x New SmartPRO 5000U Programmer

1pc x USB Cable

1pc x CD Software

1pc x Power Adapter
