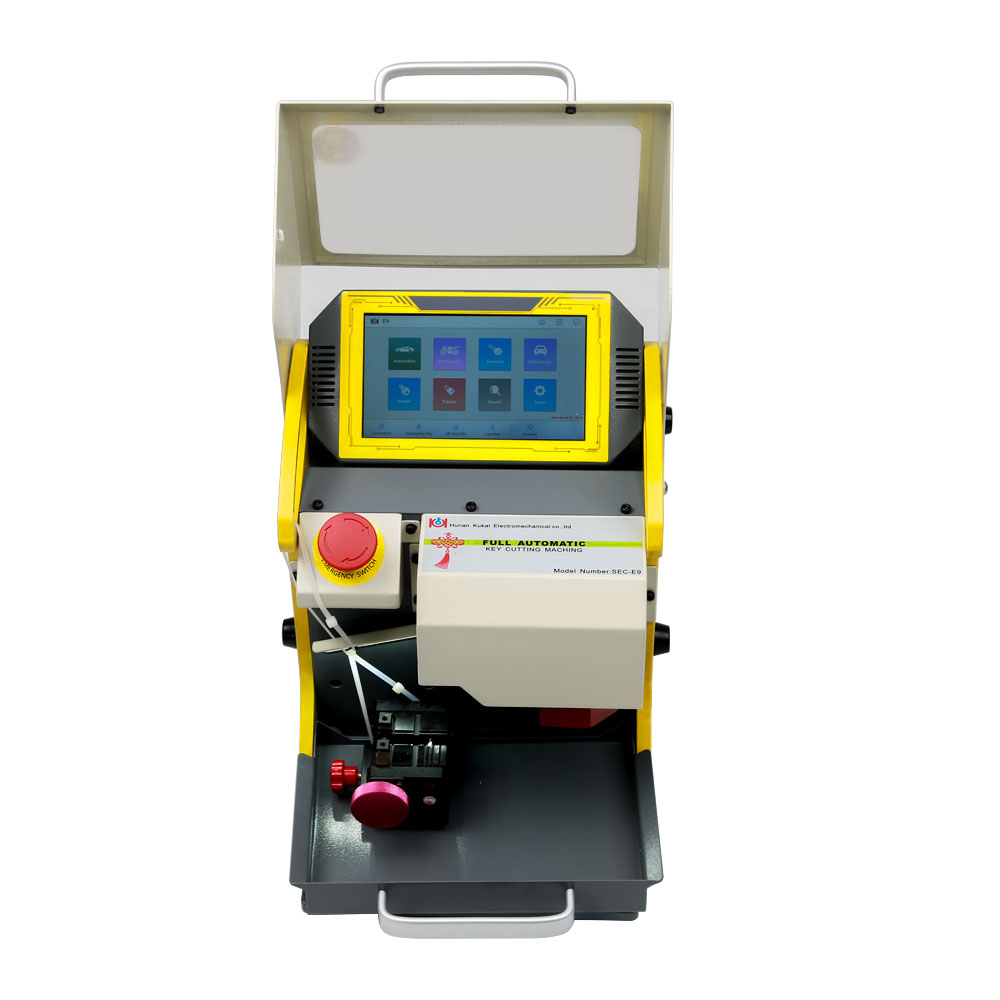

SEC-E9 CNC Automated Key Cutting Machine

SEC-E9 Description:

SEC-E9 portable metal desktop air cooling fully automatic smart key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.

Top 10 Reasons to Get SEC-E9 CNC Automated Key Cutting Machine:

1. Latest Version: V16.0.0.3 Newly added key data includs: Scion, Toyota, Lexus, Renauit, Nissan, Acura, Subaru, Chrysler
2. Can directly search key bitting number by key code for some keys. No need to search from Instacode
3. Support all key lost, can cut a new key by bitting number
4. Multi-Language: English, Spanish, French, German, Italian, Korean, Portuguese, Russian, Turkish, Czech.
5. Can cut veritcal milling, flat milling, internal milling and external milling.
6. Work on Car, Truck, Motorcycle, House Key, Dimple & Tubular Keys, cut automobile keys,motorcycle keys ,dimple keys, tubular keys, and single-sided standard keys.
7. Can cut Tibbe keys and LDV keys
8. Auxiliary Clamp is available
9. CE Approved
10. Free Update Online

SEC-E9 Key Cutting Machine Newly Update(2018-12-10)
Software version is 16.0.0.3, Database version is 15.16.

Newly added key data includes:
1. YM23 8-cut锛圛C card 1896锛塳ey
2. FIAT 500L key and key code
3. ONDA motorcycle CB150 key
4. Oldsmobile, Mahindra, maruti key and key code

Improved key data includes:
1. Improved Hyundai,Kia,Toyota menu: add new choices of manufacture year in and after 2015.
2. Hyundai,Kia,Toyota key and key code
3. HONDA锛圛C card 982锛塳ey code
4. Mitsubishi,Maserati,Chevrolet key code

Two ways to enter key data:
1. Search car manufacturer, model and manufacture year
2. Search key blank or IC card

Three ways to get key cuts:
1. decode original keys
2. Input key cuts
3. Search key code

SEC-E9 CNC Automated Key Cutting Machine Features:

Built-in database, support key missing teeth inquiry;
Light weight, small size, easy to work out;
Equipped with two spindle belts, decoder and cutter;
Interpretation and cutting can be completed at one time;
Support plain milling key, face milling key, Allen key(F021), Stiletto key andCylinders key;
Repair the wear keys to recover the original precision.

Quick Function of SEC E9:

Key data search
Key cutting history
Frequently used key data registration
Last key

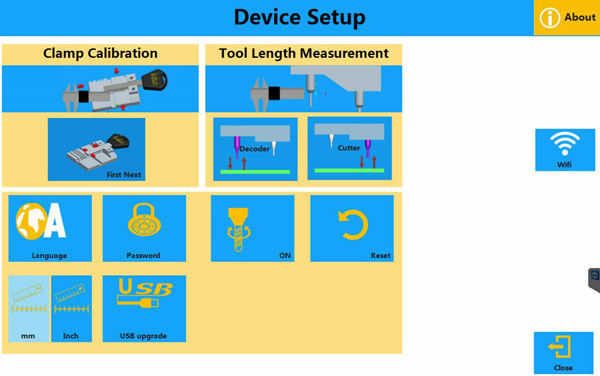

Clamp calibration
Tool length calibration
Automatic setting of clamp origin
Checking calibration value

SEC-E9 Key Cutting Machine Car List:

Acura/Alfa Romeo/Aston Martin/Auti/BMW/Bentley/Buick/Cadillac/Carryboy/Chevrolet/Chrysler/Citroen/Dacia/Daewoo/Daihatsu/Dodage/Eagle/Ferrari/Fiat/ Ford(Australia)/Ford(Europe,USA)/Fuso Trucks/GMC/Hino Truck/Holden/Honda/Hummer/Hyundai/Infiniti/Isuzu/Iveco/Jaguar/Jeep/Kia/LDV/Lamborghini/
Lancia/Land Rover/Lexus/Lincoln/MAN Trucks/Mack Trucks/Maserati/Mazda/Mercedes/Mercury/Mini/Mitubishi/Neiman/Nissan/Opel/Peugeot/Plymouth/
Pontiac/Porsche/Range Rover/Renault/Rolls Royce/Rover/Saab/Saturn/Scania/Scion/Seat/Skoda/Smart/Ssangyong/Subaru/Suzuki/Tata/Toyota/Triumph/
Volkswagen/Volvo/Volvo Trucks

SEC-E9 Key Cutting Machine Household Key List:

AGA/ASSA/ATP/AXA/Abloy/Absa/Abus(SD)/Ace/Alpha/American Padlock/Anchor/Anker/Ankerslot/Atal(SD)/Atala/BAB/BKS/BMB/BTV/Basta/Batu/
Bauer/Bellville/Beram/Best/Beta/Brabantia/Briggs&Stratton/Brisant/Burg/CES(SD)/CIB/CL/Caver/Chicago(SD)/Chubb/Cisa(SD)/City/Clausor/
Colomenca/Corbin(SD)/CorbinRusswin/Corni/Cyber Lock/Dad/Detex/Diebold/Difi/Diplomat/Doblina/Dom(SD)/Dorma/Dubois/E-Z-SET/ERA/Elgin/Emhart/Emka/Etna/Eurolocks/Eurospec/Evva/FAB/FB/FFFacchinetti/FPB/FTH/Falcon/Fama/Feb/Flambo/Fort(SD)/Fral/ GEGE/GHE/GSA/Gete/Goa/GuLi/Guard/GuervilleRiquier/Hafele/Henkna/Hobes/Hon/Hudson/Hurd/Huwil/IFAM/Ideal/Ikea/Iseo(SD)/ JCB/JPM/JinDianYuanZi/Jore/Junkunc/Padlock/Kaba(SD)/Kale/Kasp/Keiper/Kiferm/Kwikset/LaFonte/Lane/Las/Legge/Lips(SD)/Lista/ Litto/Lockwood/Lowe&Fletcher(SD)/MCM/MEFA/MLM/Marco/Marks/Master/Mauer/Maxus/Merit/Meroni(SD)/MetalRousseau/ Mippart/Miwa/National/Neiman/Nemef/Nobo/Norwalk/ODA/Omec/PYCM/Papaiz/Penn/Pfaffenhain/Prefer/Presta/Protec/QLP/ Riople/Ronis(SD)/Royal/Ruko/Runo/Russwin/SOS/STA(SD)/Sama/Santos/Sargent/Sargent&Greenleaf/Schlage/Securemme/ Securicraf/ShangHaiQiuJing/Showa/Siam/Sofi/Sperrkolb/Squire/Strafor/Strattec/Sul/Talon/Technal/Teka/Technal/Teka/Teknion/ Terca/TesaThomee/Touch/Trelock/TriMark/TrioVing/UAP/Unifor/Union/VIP/Vachette/Vario/Veronelli/Vinco/Viro/Weiser/Weslock/
Whitco/Wigro/Wilka(SD)/Wilmont Breeden/Winkhaus(SD)/Yale(SD)/YueMa/Yvel/Zadi(SD)/Zwiss-Ikon

SEC-E9 Punch Key List

AGA/AGB/Abloy/Abus/Alpha/Atal/Atra/Avocet/Azbe/Baton/Bricard/CES/CVL/Cadman/Cays/Chubb/Cisa/Corbin/DOSSIV/DOM/Domus/
Esety/Ezcurra/FAC/FAG/GTV/Gerda/Goal/IFAM/Iseo/Kada/Kaken/Kale/Keso/Lince/Lips/Lock Focus/Lockman/M&C/M-loy/MCM/MLS/Magnum/Master/Mauer/Miwa/Mottura/Mul-T-Lock/Omec/Pfaffenhain/Potent/Royal/Guardian/STS/Securemme/Showa/Space/Squire/Tecon/Tesa/UCEM/Viro/WanJia/West/Wika/Winkhaus/Yale/Yardeni/Zadi

SEC-E9 Motorcycle Key List:

Aprilia/BMW Cycles/Ducati/Harley/Davidson/Honda Cycles/KTM/Kawasaki/Kymco Cycles/Moto Guzzi/Peugeot Cycles/Suzuki Cycles/Victory/Yamaha

SEC-E9 Tubular Key List:

AGA/Beaver/Bilma/Bumil/Chicago/Dynaconsult/Fort/LYF/Lowe&Fletcher/Meroni/R.O.C/Ronis/SAG/Sentry

SEC-E9 Automated Key Cutting Machine Specification:

Product name: SEC-E9 Fully Automated Key Cutting Machine
Product No.: SEC-E9
Dimension: 255(W) * 360(H) * 340(D)m
Weight: 19.5KG
Resolution: XY: 0.005mm Z: 0.0015mm
Spindle Revolution: 16000+rp
Temperature: 0- 40
Humidity: 10-90
Usage : The duplicating and cutting of automobile keys and domestic key

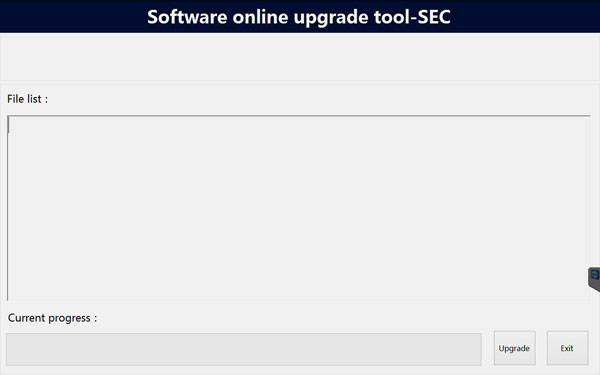

SEC-E9 Key Cutting Machine Update Gudie:

1. Click ”Setup”

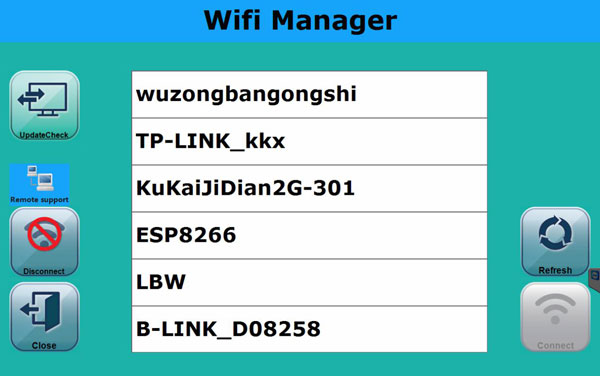

2. Click”Wifi”

3. Connect Wifi

4. Press ”UpdateCheck” after the wifi is connected successfully.
( Please notice that you just need to click the ”UpdateCheck” once, no need to click it repeatedly)


5. Click ”Upgrade” button

6. After upgrading successfully, the tablet PC will automatically jump to the main page.


Notice
1. Please keep the Wifi conncted when upgrade
2. Please keep the network smooth
3. Please do not turn off tablet PC when upgrading
4. Please do not operate the tablet PC when downloading the upgrade files.
5. Please disconnect Wifi after upgrade is done. ( otherwise the system will generate garbage when tablet PC updates automatically . Also cause the system to run slowly.)

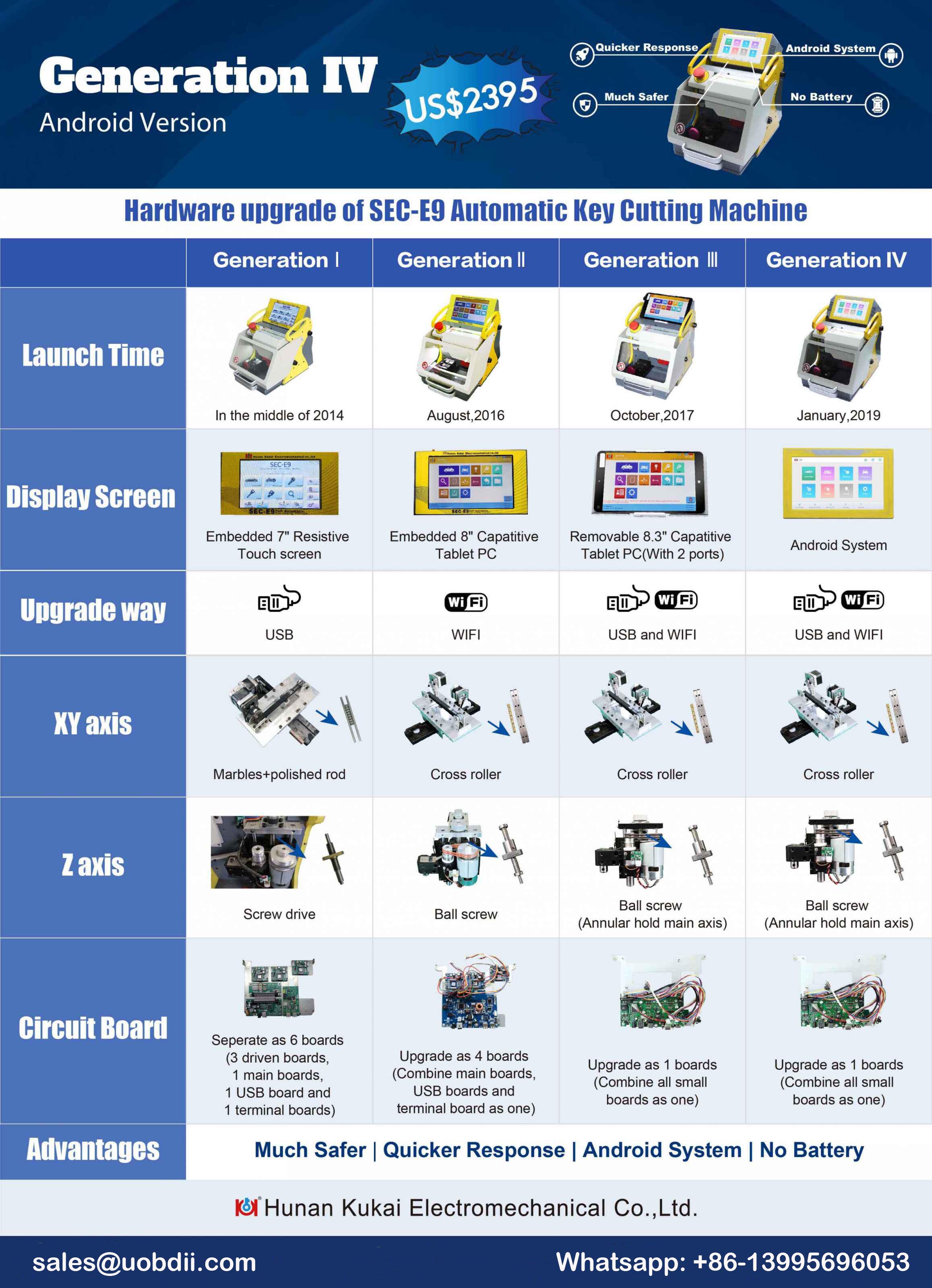

Difference Between SEC-E9 Machine Gen I to Gen VI Difference:


SEC-E9 Key Cutting Machine FAQs:

Q: Can the SEC-E9 machine cut household keys?
A: definitely yes!

Q: Condor mini cannot support the moto key; SEC-E9 support that?
A: Yes,SEC-E9 can cut motorbike keys without issues.

Q: What’s the different between Condor key cutting machine and SEC-E9?
A: SEC-E9 can cut motorcycle keys and household keys that Condor cannot support.

SEC-E9 Key Cutting Machine Reviews:
Reviews 1:
SEC-E9 key cutting machine is used for cutting car keys and household keys. It covers cylinder and laser keys with adapters for other key styles.Computerized Electronic Automobile Key Cutting Machine, different with traditional key cutting machine,easy to operate and copy.
Reviews 2:
Sec-e9 fully automatic key cutting support cut 99% car keys, including standard keys and high security keys, such as BMW, VW, Audi, Mercedes, Honda, Opel,etc. It also supports to cut house keys, including dimple keys, tubular keys, single standard keys and more.Mainly applied to automobile key cutting and duplicating, especially for most foreign car key blanks(including ford tibbe), and household keys, standard key(edge or doubled-sided non laser keys),

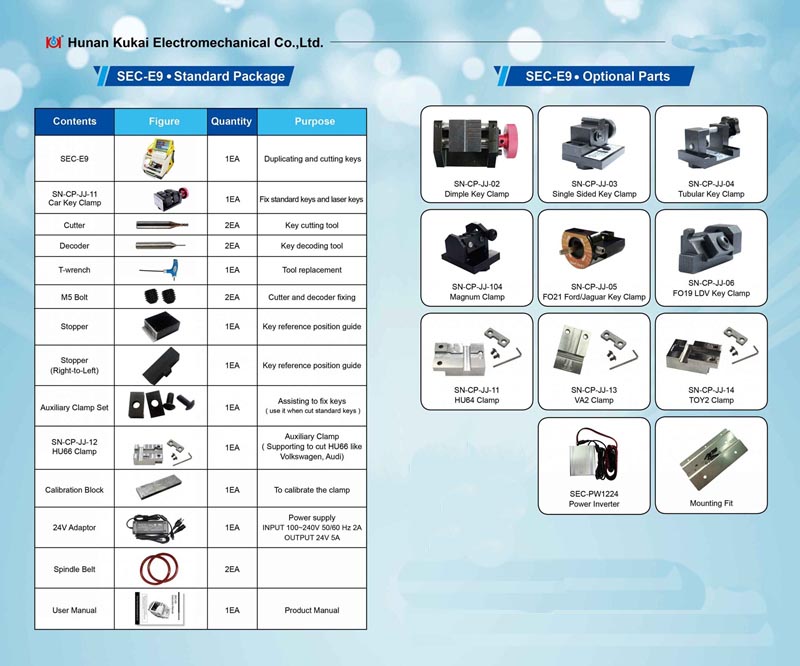

SEC-E9 Key Cutting Machine Standard Package

Contents	Purpose
SEC-E9 Key Cutting Machine	Key cutting and duplication
Cutter	Tool for key cutting
Decoder	Key decoding(copying)
T wrench	Tool replacment
M5 bolt	Cutter and decoder fixing
Stopper	Key reference position guide
Auxiliary clamp SX9 clamp	Key help fixing
Calibration block	To Calibrate the clamp
24V Adapter	Power supply input 100-240V 50/60Hz output 24.OV 5A
Spindle belt	Ensure high-torque key cutting
User manual	Product Manual

SEC-E9 Optional Parts:

Different kinds of key clamps for SEC-E9 Key cutting machine optional. You just need to install the corresponding clamps for different key types, no software is needed when replacing the clamps. Automabile key clamp is included in the standard specification

Item No.	Model	Clamp	Function
SL433-1	SN-CP-JJ-01	Standard Clamp	cutting car keys
SL433-2	SN-CP-JJ-02	Dimple House Key Cutting Clamps	cutting dimple house keys, dimple key cutter and decoder are requested
SL433-3	SN-CP-JJ-03	Single-sided Standard Key Clamp	Cutting Single Standard House Keys
SL433-4	SN-CP-JJ-04	Tubular Key Clamp	Cutting Tubular House Keys
SL433-5	SN-CP-JJ-05	Ford Tibbe Jaws FO21 Key Clamp	Cutting Ford and Jaguar Keys
SL433-6	SN-CP-JJ-06	LDV FO19 Clamp	Cutting LDV Car Keys
SL433-11	#11	HU64 Clamp	for Benz C series, E series, GLK series, Linear,Viano and all imported Benz Maybach
SL433-12	#12	HU66 Clamp	for Sharan sharp way, Volkswagen phaeton,Beatles and other Volkswagen series, TT, Q7 and other Audi series, Bentley, Lamborghini, Skoda series, Porsche series, Roewe
SL433-14	#13	TOY2 Clamp	for New Toyota/Lexus/BYD Keys(one-side cut,thin laser key)
SL433-13	#14	VA2 Key Clamp	for New Renault Keys(one-side cut,thin laser key)
SL433-16	SN-CP-JJ-16	HU162T Clamp	For Volkswagen Golf 7, Magotan 2018, Lavida 2018, Phaeton etc. also for Audi 2018 new models
