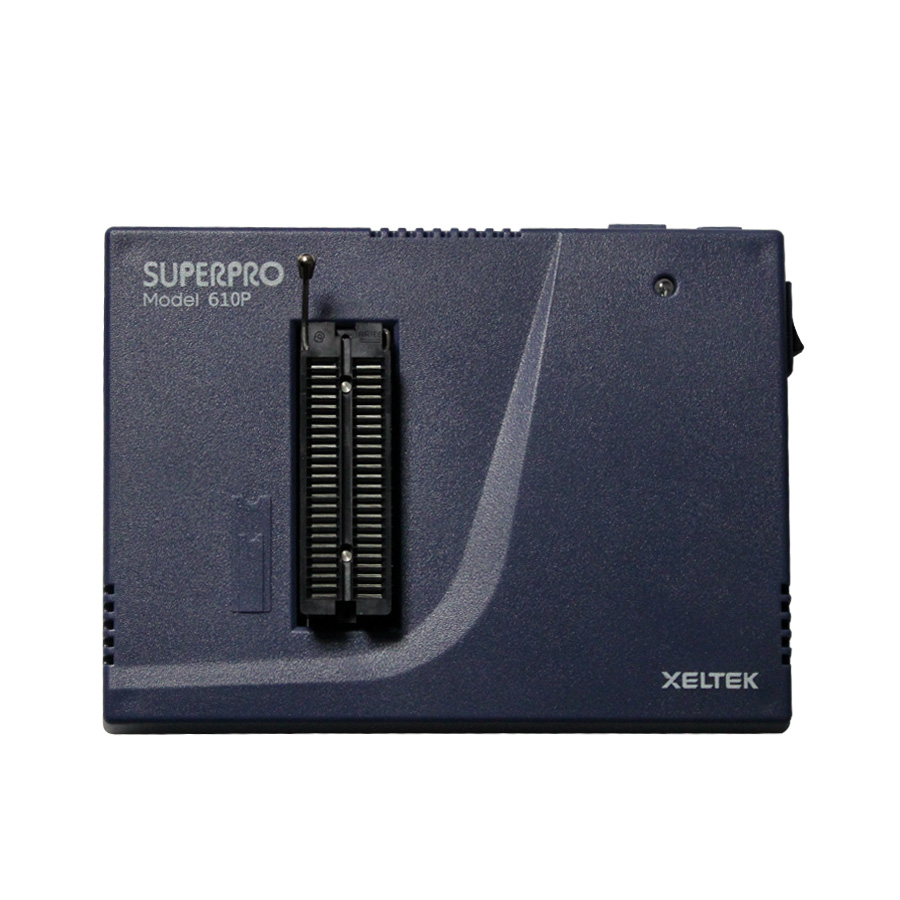

Original Xeltek USB Superpro 610P Universal Programmer with 48 Universal Pin-drivers

Original Xeltek USB Superpro 610P Universal Programmer

Descriptions of Original Xeltek USB Superpro 610P Universal Programmer with 48 Universal Pin-drivers

Original Xeltek USB Superpro 610P Universal Programmer
1.Operating System: Windows XP, Vista and Win7
2.Support 218 IC manufacturer, 30493 pcs devices.
3.Support devices with Vcc from 1.2V to 5V.

Original Xeltek USB Superpro 610P Universal Programmer

Operating System: Windows XP, Vista and Win7

Xeltek USB Superpro 610P Features:

Support 218 IC manufacturer, 30493 pcs devices.

Support devices with Vcc from 1.2V to 5V.

Extremely fast speed hign than SUPERPRO/500P.

Built with 48 universal pin-drivers.

PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.

ISP/ICP programming capability available via ISP/ICP adaptor.

Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.

Advanced and Powerful Functions.

Production mode start chip operation at the moment the chip is inserted in the socket properly.

Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.

Password can be set for project files and production volume control

Batch command combines device operations like program, verify, security into a single command at any sequence.

Serial numbers generators are available as standard or customer-specific functions.

Log file is useful for quality tracking.

Over-current and over-voltage protection for safety of the chip and programmer hardware.

Device	P+V(s)	Compare with SP3000U	type
AT28C64B	0.8(P)+0.1(V)= 0.9(s)	1.2(P)+0.8(V)= 2.0(s)	64Kb EEPROM
24AA128	2.7(P)+1.8(V)= 4.5(s)	5.0(P)+4.0(V)= 9.0(s)	128Kb EEPROM
QB25F640S33B60	29.0(P)+14.4(V)= 43.4(s)	55.2(P)+41.4(V)= 96.6 (s)	64Mb EEPROM
AT89C55WD	2.5(P)+0.4(V)=2.9(s)	3.3(P)+1.0(V)=4.3(s)	20KB FLASH MCU
S25FL064A	43.9(P)+14.7(V)= 58.6(s)	72.8(P)+41.4(V)= 114.2(s)	64Mb SPI EEPROM
PIC16F876A	10.1(P)+0.8(V)=10.9(s)	22.1(P)+06.2(V)=28.3(s)
PIC18F442	5.1(P)+1.1(V)=6.2(s)	13.6(P)+06.7(V)=20.3(s)

Hardware & Electrical Specifications:

Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU. Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , ...

PC interface: USB2.0

Stand-alone Feature: None .

Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W

Mechanical parameter: Main unit: Size: 178*130*40 mm Weight: -Kg.

Accessories:

Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (include: install software, user manual), register card

Optional accessories: adaptor in varies packages.
