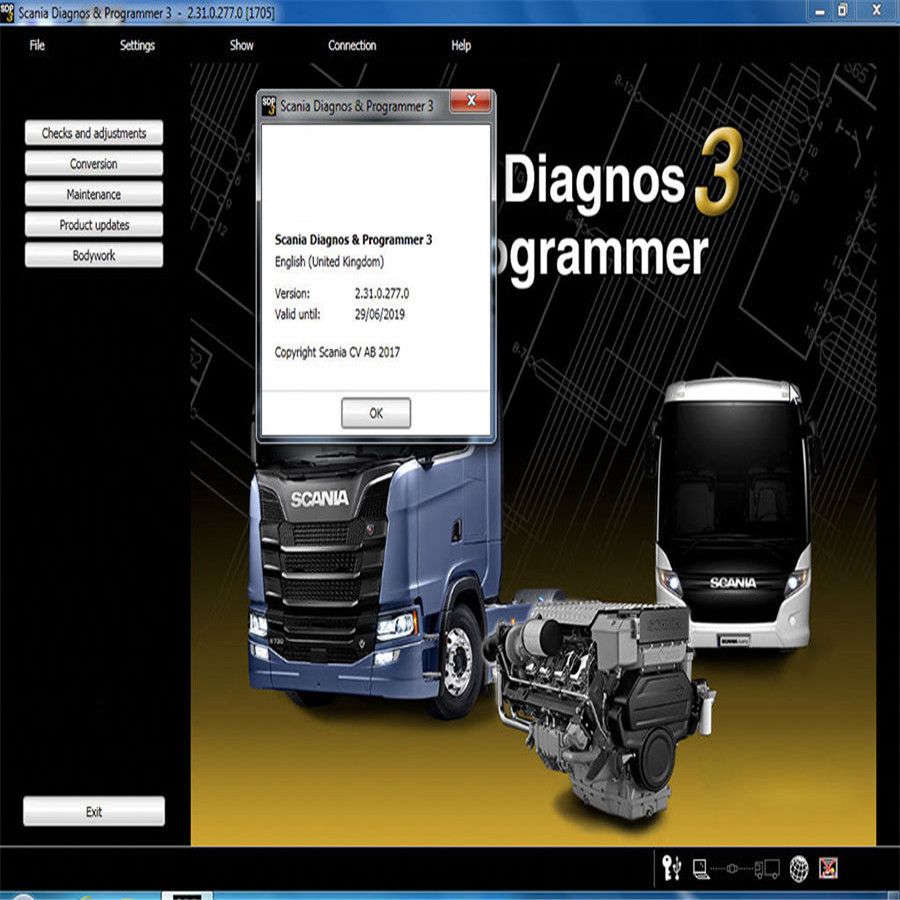

Scania VCI 2 SDP3 V2.31.1 Newest Version Software for Trucks/Buses

Top 5 reasons to get VCI 2 SDP3 V2.31.1 Software:

1.Latest Software Version 2.31.1 replaces version 2.30 of Scania Diagnosis & Programmer 3.
2.OS: Windows 7 64bit
3.Software language: German, English,Spanish, Finnish, French, Italian,Japanese, Korean, Dutch, Polish, Arabic, Portuguese, Russian, Swedish,Turkish, Chinese, Traditional Chinese,Romanian
4.Suitable for Scania VCI(SH26) and Scania VCI2 SDP3(SH58).

SDP3 V2.31.1 program supports the following vehicles:

P, G, R, and S series (2016-)
P, G, R and T series (2003-)
F, K and N series
as well as the following engines:
P96
E2011

SDP3 V2.31.1 General new features:

System requirements and recommendations
• Microsoft .Net Framework 4.6.2 must be installed.
• There is no longer support for Windows 7 32 bit. For more information, see Ti 00-17 01 25.

Function view
By using the search box at the top of the window you can now search directly in the function view. You can choose to search in the Adjustment, Check or Calibration tab.

Troubleshooting
The procedure for defect reporting in SDP3 has been improved to make it simpler to follow.
Instead of a guide in several steps, there is now a simple dialogue box. In the dialogue box you can select if you want to save the defect report locally or if you want to send it via e-mail. To be able to send the defect report via e-mail you must have Microsoft Outlook. You can choose to create a defect report for a specific individual product or to make a general defect report.
The dialogue box for defect reports you find in the Help menu.
Note: As from SDP3 2.31.1, the dialogue box is no longer available for use if you are connected to a job type. 餂?Scania CV AB 2017

Communication troubleshooting
• The instructions& solution for communication errors has been updated. You access the document via the Help menu.

System specifications
CUI –Infotainment system
• Support resume an interrupted download of software has been introduced.

COO – Coordinator
• The new guide verify and check switch modules in the steering wheel according to the version and the vehicle’s SOPS file.

EMS – Engine Management System
• Vehicles with the S8 engine control unit have previously lacked support for Default setting of power take-off adaptation. This has now been rectified.
• The Spark check guide has been removed for vehicles of the P, G, R and S series with Euro 6 gas engine. As the support in SDP3 has been improved, the guide tool is no longer required. Instead, use the Electrical system view for troubleshooting.

RES – Rechargeable energy storage system
• For the sake of clarity and uniformity, the hybrid battery has been changed to propulsion battery in all instances in SDP3.

TMS – Transmission management system
• New parameters have be added to TMS2:
o Clutch monitoring
o Downhill speed control with active prediction
o Reduced use of the clutch (new values) 餂?Scania CV AB 2017
• After a product update of the transmission management system, the Accelerometer adaptation must always be run. It now starts automatically after an update of the control unit.

GMS – Gearbox management system
• A function guide which shows how the power is transferred in the gearbox for different gears in real time has been added. You can also see how the gear shift forks move and which sleeves are affected.

The guide applies to the following gearboxes:
o GRS905
o GRS905R
o GRSO905
o GRSO905R
o GRSO925
o GRSO925R
o GRSO935
o GRSO936R

The guide also applies to the following transmission management systems:
o OPC4,
o OPC5
o TMS1
o TMS2

CMS – Chassis management system
• A guide for bleeding control circuit 2 has been implemented.
• Circuits, I/Os and the functional description of differential locks has been improved.

TSS/TSA – Tag axle steering system
• Function guides for activating and deactivating service mode have been implemented. 餂?Scania CV AB 2017
• A function guide for checking EST and ESTA has been implemented.
• A new parameter for the centring function has been implemented.

Package list:

1pc x Scania VCI 2 SDP3 V2.31.1 CD
