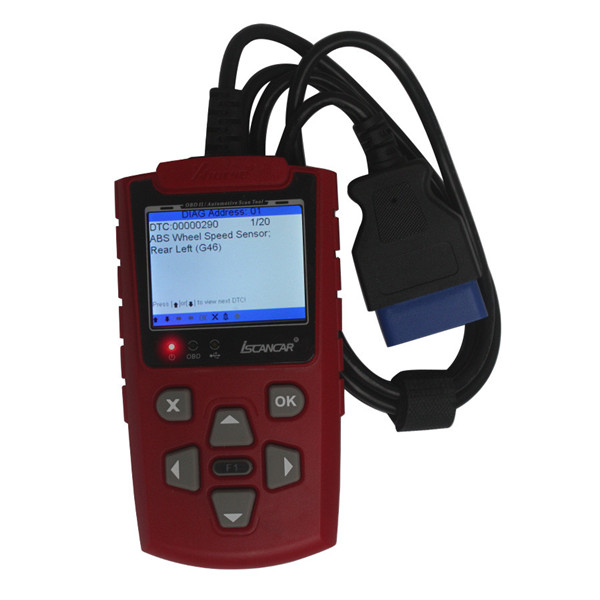

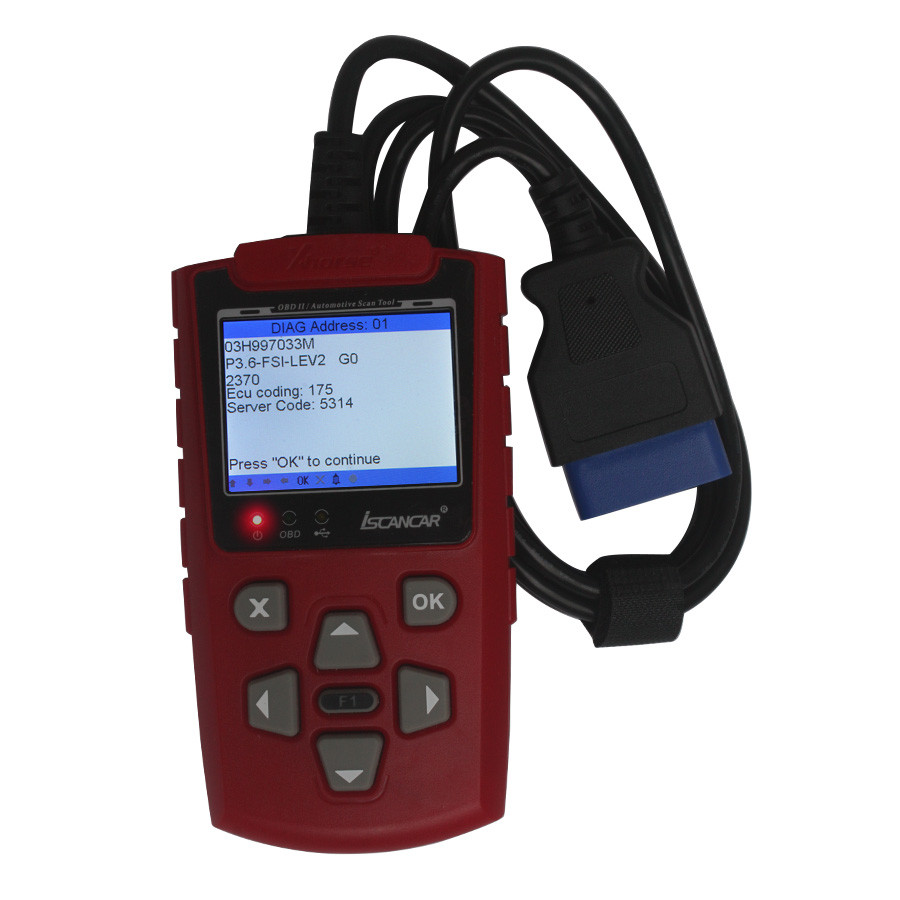

ISCANCAR VAG KM IMMO OBD2 Code Scanner
1.It is a handheld diagnostic scanner for almost all VW Audi with protocol KWP1281 (K-line), KWP2000 (K-line) and KWP6000 (CAN).
2.It supports almost all control modules of VW Audi vehicles, and maintain dashboard mileage, read immobilizer code and match key.

Top 5 Reasons To Get ISCANCAR:

1. It is the Update Version of Super VAG
2. IScancar Is The Best Tool for VW. And it Does not Need to Remove Diagnostic Socket, No Need Connect with PC.
3. Newest Firmware Version: 1.2.0

Notice:

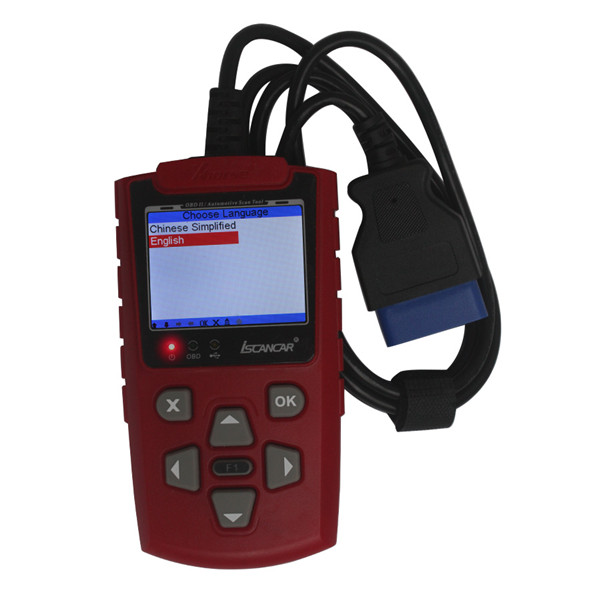

1. IScancar Language: English
2. ISCANCAR VAG KM IMMO OBD2 Code Scanner Will Not Support Some Dashboard, When you find IScancar OBDII EOBD Cars Trouble Codes Scanner which does not support your car, please use diagnostic function to read the dashboard number and send us this number.

Read out control unit information

Read fault codes

Clear fault codes

Actuator test

Scan live data

Basic settings

Coding control unit

Match and adjust

Login and authorization

IScancar Trouble Codes Scanner is mainly compatible with K-line and CANBUS protocol

VDO (K-line and CANBUS)

Motometer (K-line)

Marelli (CANBUS)

Bosch (K-line)

Engine control unit

Immobilizer dump

Immobilizer control unit

Dashboard control unit

Kessy control unit

Support most dashboard adjust for Chinese VW. Jetta dashboard (built-in IMMO system), all Passat models, Audi A6, A4, A8, A6L, Q7, Sagitar, Caddy, Touran, Polo, Polo jinqing, Polo AccFast, Bora( including multi-functional dashboard), Golf, Skoda, Magotan, Sagitar, A6L, new Bora.

IScancar Codes Scanner have some test function of VAG1552 and add some function of VAS5051. IScancar OBDII EOBD Cars Trouble Codes Scanner support diagnosis for Audi, Bora, Jetta after 2005 year, Passat, Santana, Polo, Golf and more, it cover Engine, automatic transmission, SRS, airbags and dashboard. It supports read computer version number, read and clear trouble codes.

IScancar Codes Scanner support reading immobilizer code for Volkswagen, Audi, Skoda and Seat from engine control unit, immobilizer dump and dashboard by OBD2 diagnostic interface, no need to remove immobilizer dump and dashboard, no need to remove and weld chip. It supports automatically recognize the following immobilizer system including: IMMO1, IMMO2, IMMO3, IMMO4 and WFS. IScancar OBDII EOBD Cars Trouble Codes Scanner support car models: all Passat models, Jetta, Santana, Audi A6, A4, A8, Sagitar, Caddy, Touran, all Polo models, all Bora models (including new Bora), Golf and Skoda.

CDC32XX (after 2007)

NEC+24C32 (after 2008)

NEC+24C64 (after 2009)

NEC+24C64 (after 2013)

NEC+95320(UDS)

NEC+95320

NEC+95320

Motorola MM7

Lavida 1.6,2.0

VISTEON(CAN)

Audi A1

Audi A3 and TT and R8(CAN)

Audi A4 2000-2008 (K)

Audi A4L, Q5, A5(after 2008)

Audi A6, Q7 (after 2008)

Audi A8 (2003-2011)

A4 B5 with BC-1997(K)

A4 B5 WIOUT BC-1997(K)

A8 -10.1996(K)

A8 11.1996-(K)

A6 B45 -1997(K)

Marelli -1 Shadow (K)

Marelli -2 (Passat)(K)

Marelli -3 (TT) (K)

Marelli -Audi M73 V1 (K)

Golf 4 Bosch RBx (K)

VDO66 and 86 Motometer

2006-2013 Sagitar

2006-2013 Bora

2006-2013 Polo

2006-2013 Lavida (1.4,1.6,2.0)

2006-2013 new Passast (color

2006-2013 Magotan

2006-2013 CC

2007-2013 Tiguan

2006-2013 Touran

2000-2008 A4

2008-2013 A4l, Q5, A5

2008-2013 A6l, Q7

2006-2013 Octavia

2006-2013 Hao Rui

2006-2013 Fabia

1pc x ISCANCAR VAG KM IMMO OBD2 Code Scanner
