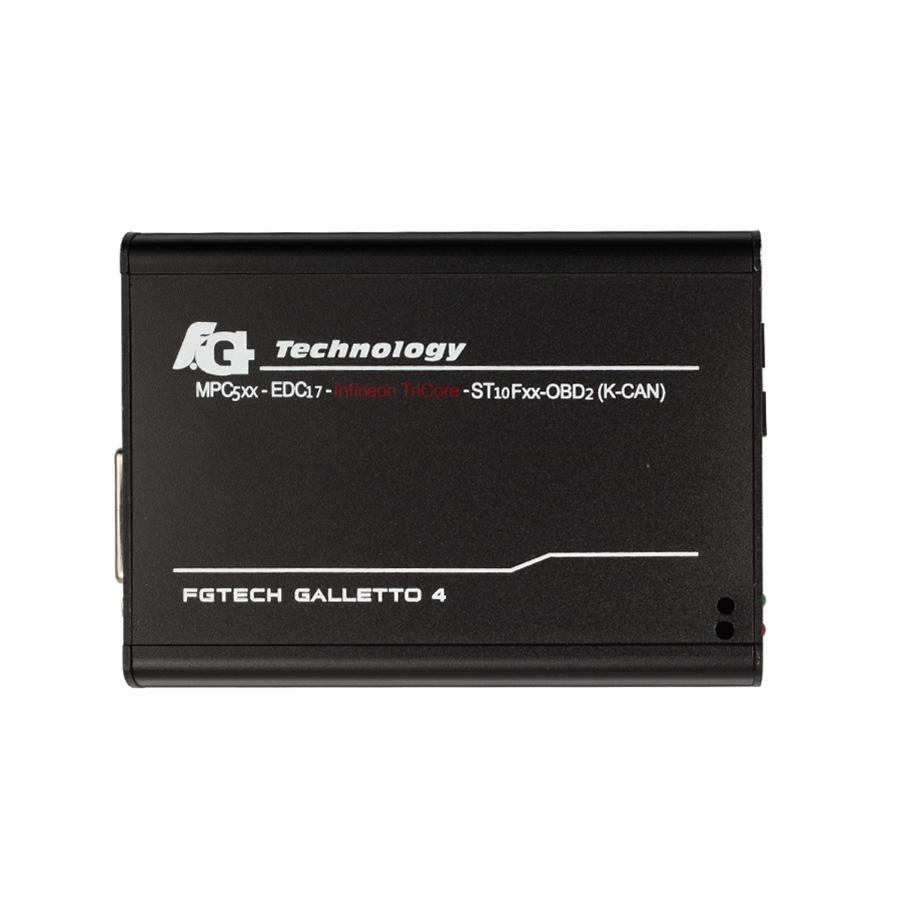

Hot Sale V54 FGTech Galletto 4 Master BDM-OBD Function Unlock Version

FGTech Galletto 4 V54 BDM-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum.Fgtech galletto V54 is with BDM function.

Descriptions of Hot Sale V54 FGTech Galletto 4 Master BDM-OBD Function Unlock Version

V54 FGTech Galletto 4 is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, checksum.
This item cannot only work as fgtech galletto 4-Master, but can also work for BDM-OBD.
Support Tricore Function.

New V54 FGTech Galletto 4 Master BDM-OBD Function Unlock Version

Top 6 Reasons To Get FGTech Galletto 4

1. Latest Version: 2014 V54

2. Supported Operating System: windows XP. more friendly than Fgtech v53 , much easier to operate

3. Unlock Version: Can Use Directly. No Need To Activate

4. FGTECH V54 PCB Board

5. Supported Language: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function

Notice: There is No Power Supply in the Package

FG Tech Galletto 4 Maste Description:

FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , checksum.

Boot Mode System:

NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON

Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF

New Delphy DCM3.5xx DCM3.7xx TRW

Motorola Freescale MPC 555/556/561/562/563/564/565

Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB

Motorola MC 68376 Campi 01 Lamborghini - Lotus

Motorola MC 68336 MEMS D5 ROVER

Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG

New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac

New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu

Automatic Checksum:

All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso

Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens

Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507

Motorola Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM GM -FORD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,

FGTech Galletto 4 Master Version:

Recovery Mode Completa

Funzione scan tool per eliminare i DTC

Function scan tool for erase the DTC

Controllo tensione di batteria auto in tempo reale

Check tension of battery car in real time

FGTech Galletto V54 Package List:

1pc x New Version Main Interface

1pc x ECU Cable for Boot

1pc x Adapter for BDM to CMD with BDM Cables

3pcs x BDM Adapters

6pcs x BDM Connectors

2pcs x Power Cable

1pc x OBD2 Cable

1pc x USB Cable (1.5meter)

1pc x CD (2012 Version SW -MASTER, Documents PDF, Pictures, etc.)

Comparison Among Top 3 ECU Programmer Kess V2 Master, Ktag Master, Fgtech Galletto V54

Comparison List	Kess V2 Ksuite	Ktag Master	Fgtech Galletto V54
Support Vehicles	Cars	Cars, Trucks	Car,Truck, Motorbike, Marine
Protocols	Line, CAN, EDC17 and MED17 and Ford J1850	J-Tag, Motorola BDM/Nexus and Bootloader	JTAG – BDM – MOTOROLA – FREESCALE – INFINEON
Support Method	OBD2 directly	BDM	Both OBD2 and BDM
EDC17	Some part	Some part	Some part
Update	via CD	via CD	No
Tokens	60 Tokens available, after use it out, get J-Link to add tokens for free.	500 Tokens available, after use it out, get J-Link to add tokens.	No
Advantage	perfect for OBD use,has Anti-mediation lock module, it is better in working with new and encrypted cars	perfect for Jtag, BDM and all the Boot application (tricore and ST10)	customer prove fgtech v54 works 50% obd. BDM works ok and work ok with tricore and st10 micro
Language	Multi-language	Multi-language	Multi-language

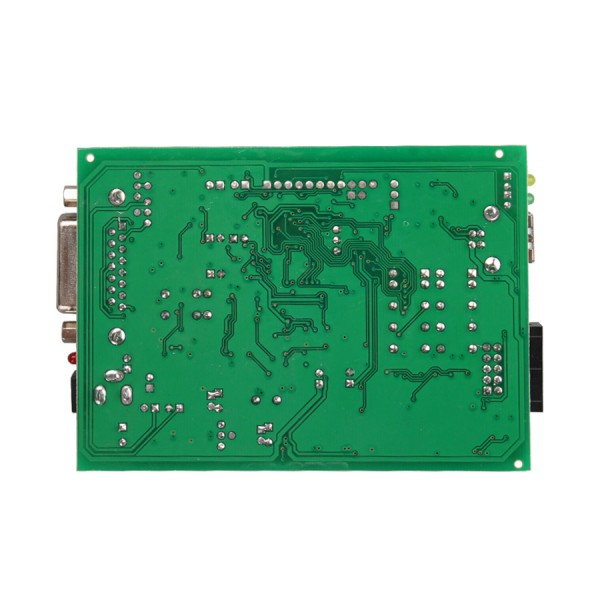

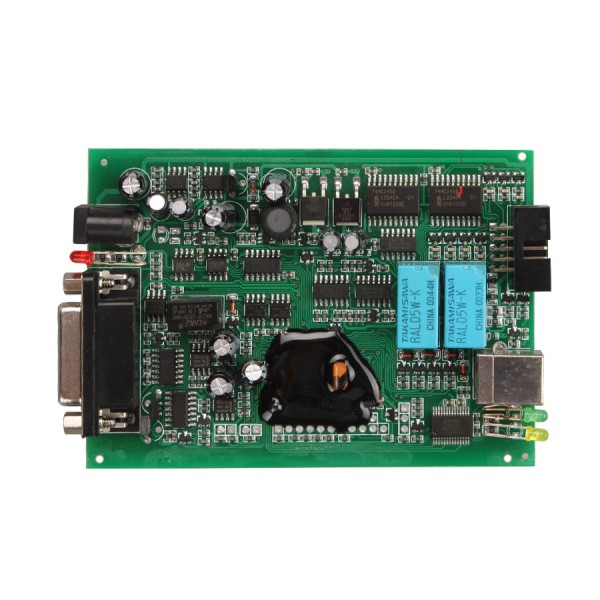

New V54 FGTech Galletto 4 PCB Board:

FGTech V54 Galletto 4 PCB Board-1

FGTECH Success and Fail List:

EDC16u34 (VAG) Read/Write ok (OBD)

EDC16U1 (VAG) Read/Write ok (OBD)

MED9.1 (VAG) Read/Write ok (ODB)

Trionic8 (saab 9-3) READ/WRITE OK (OBD)

EDC16P (VAG) Read/Write ok (OBD)

EDC15V (VAG) Read/Write ok (OBD)

EDC17CP14 03L906022G Read/Write ok (OBD and boot mode)

Ford

EECV 1.8tddi read/write ok

VAG

AUDI ME 7.1.1 3.0 v6 read ok – awaiting flash

fiat multijet

mjd 6f3 diesel read/write all ok

renualt megane

siemens s3000 read hitachi mcu/write ok

EDC15C13 (Renault) Read/Write ok (K-line on bench and boot mode)

DDCR (Nissan Almera 1.5DCI) OBD read/write OK

Mercedes w211 2.2 cdi edc16c3 obd, ecu data ok read/write fail! Bdm read ok

opel

edc16c39 obd r/w ok

edc16c39 bdm r/w ok

edc16c9 bdm r/w ok

astra J 2009 denso galletto jtag NOT ok (but ktag r/w same ecu ok with jtag)

mitsubishi grandis

edc16u31 obd r/w ok

renault megane /laguna

sagem3000 obd r/w ok

bmw 3/5/7 series

edc16c31/35 obd r/w ok

edc17 in boot mode ok

psa

edc16c34 obd r/w ok

dcm 3.4 obd r/w ok

ford

edc16c34 and delphi ECUs obd r/w ok

vag

edc15 / my galletto can not read program shout down (I use kess)

edc16 obd r/w generally ok

edc17 in boot mode ok

volvo

edc17 boot mode ok

Audi S3 Med9.1 r/w (OBD) ok

Mercedes GLK Delphi CRD2 r/w (OBD) ok

Peugeot 207 EDC16C34 r/w (OBD) ok

Merc w212 crd 3.7 obd. OK

BMW E87 116D 2.0 EDC17C06 Bootmode r/w ok

BMW E83 3.0d ODB r/w ok

ME 7.5 (VW 1.8T AWT) Read ok / Write ok (OBD)

Merc Viano EDC16 C2. OBD. Ok

VW Golf5 1.4 TSi

ecu MED17.5.1 Boot mode r/w ok

I test clone work ok

sirius32N,EMS3132,EMS3134 in boot-mode read/write OK.

Mazda 5 2.0D 2005 Denso RF7K read/write OBD ok

Mazda 6 2.0D 2006 Denso RF8J read/write OBD ok

Peugeot 308 1.6 HDI 2013 Siemens SID807 EVO read/write BOOT ok

BMW X6 3.0D 2012 and 2013 (306 and 245hp)BOSCH EDC17CP45 read/write BOOT ok

Mistubichi Pajero 3.2DID 2013 Denso 4M41 and 4D56 read/write JTAG RENESAS ok

Mercedes W203 320CDI EDC16cp31 r/w ok (OBD)

Audi q7 3.0TDI – ok

BMW e46 2.0D 150km EDC16c31- ok

BMW E90 2.0D 163km EDC16c35- ok

Chevrolet Captiva 2.0D 150km – ok

Renault Trafic 2.5D EDC15 – ok

Mercedes B180CDI EDC15c32 – ok

Mercedes B200CDI – ok

VW Golf4 102km – edc15 – ok

Skoda Octavia 1,9TDI 105km EDC16 – ok

Citroen Jumpy 2.0D Simens 802A – ok

Ford Focus 2.0D 136 PSA Simens 802 – ok

Mini One 1.6 90km – ok

BDM

Mercedes B180&B200 CDI – ok

Q7 3.0tdi – ok

BMW one – ok

Landrover /jaguar EDC17CP11 read out in boot mode ok

BMW 330d EDC15C4 read ok/write ok via OBD

Mercedes vito 111 EDC16C31 read ok/write ok via OBD

Mercedes vito 120 EDC16C31 read ok/write ok via OBD

bmw e90 edc 17cp reading ok write fail. boot mode ok!

vag edc17cp14 read/write in boot mode ok, read in OBD ok

vag pcr2.1 read/write OBD ok, PCR2.1 unlock via bootmode ok

vag edc16cp34 obd read/write ok

fiat/iveco edc16c39 obd read/write ok

edc16u31/34 obd read/write ok, BDM read/write ok

Mercedes Vito 2.2CDI 2012 Delphi CRD2.x (OBD) read / write ok

Siemens BMW MSS54 BDM R/W OK OBD not tested (will probably work)

Siemens BMW MSS54HP BDM R/W OK only with AMD Chip/Not ST EEPROM, WILL NOT READ PROPERLY/WRITE

If you change ST chips to another EEPROM works fine wit HP unit

OBD

ALFA ROMEO

· edc15c7

· ME 7.3.1

· edc16c39

· edc16c39 read time 40 MINUT!

· id Alfa 147 immo off (k line /boot mode)

BMW

· edc16c31 obd

· BMW X5 2007 3.0TDI

· EDC16 OBD

· BMW 525 (E39)

· BMW 320D E46

· bmw e90

FIAT

· Grande Punto read 1_3 MJT 75 hp

MERCEDES

· EDC15C5

· edc5c2

· delphi CRD2

OPEL

· EDC16c9

· Opel Corsa-D CAN

PSA

· edc15c7 boot mode (ID problems)

· EDC 16C34

· EDC16c3 K line

· edc16c34

RENAULT

· Renault Delphi 2007 k-line

VAG

· edc15v

· EDC15-P

· edc15

· Golf Plus 2006 2.0TDI

· EDC16U34

· A4 2.0 tdi 2008

· Skoda octavia vrs 2005

· EDC15P K lINE

· VW crafter READ

· VW Golf5 1.9TDI

· Audi A6 V8 4.2l Petrol (over OBD fuse for dash fuse 11 or 15 , but it worked after pulling the fuse for dash and it went 100%)

· med9.1

· edc17cp14

· EDC17

· But edc17cp20, edc17cp44, etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued.

BMW E70 3.0D EDC16 (BDM)

bmw. edc16c35 (BDM)

Opel EDC16c9 (BDM)

iveco edc16 BDM (BDM)

Audi A6 (TRICORE BOOT)

Fgtech Galletto V54 What not work:

i have FG Tech v54, with one cannot read Subaru Impreza 2.0d, with another one read/write ok, Denso ECU.
