MultiFlasher ECU Chip Tuning Software works with J2534 Interface

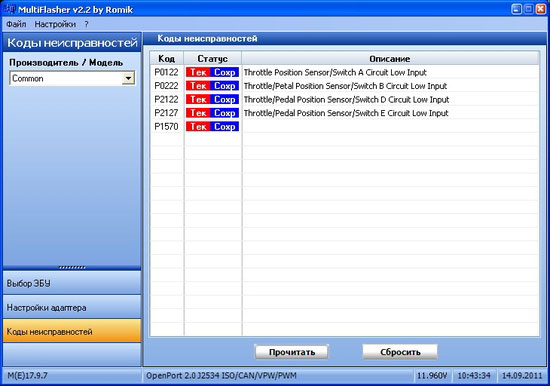

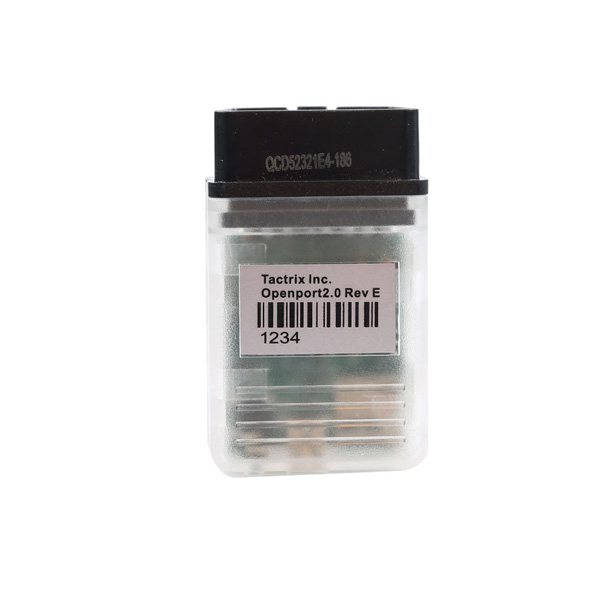

MultiFlasher is a chip-tuning software intended for reading/writing FLASH and EEPROM memory of ECUs. It can use any adapter supporting J2534 standard, e.g. OpenPort 2.0 by Tactrix. Before flashing and after reading the program checks the firmware and checksums, and corrects them if needed. It allows to avoid flashing incorrect dumps or to make sure that reading is correct. It contains a function of errors reading, decoding and reset with a possibility to manually add and edit their description.

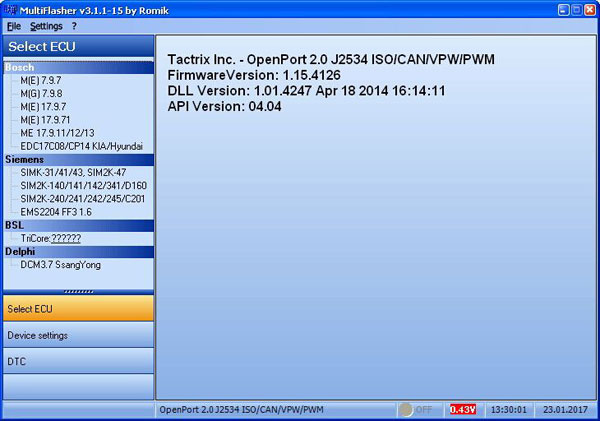

List of modules and their functions:

Bosch M(G)7.9.8. Only FLASH memory writing through the OBDII. Vehicles: KIA/Hyundai i10, i20, i30, Accent (Verna), Elantra, Pikanto, Rio, Ceed, Cerato, Soul, etc with 1.4L, 1.6L engines and a mechanical accelerator pedal.

Siemens SIMK-31/41/43, SIM2K-47. FLASH memory reading and writing through the OBDII. Vehicles: KIA/Hyundai Coupe, Elantra, SantaFe, Sonata, Tiburon, Tucson, Ceed, Cerato, Sportage, etc with 2.0L and 2.7L engines.

The set of modules: Siemens SIM2K-140/141/142/341/D160. FLASH memory reading through ECU connector and flashing through the OBDII. Vehicles: KIA/Hyundai Carens, Cerato new, Magentis, Sonata, Sorento, Sportage new, ix35, etc with 2.0L and 2.4L engines, and Chevrolet Epica with 2.0L and 2.5L engines.

Siemens SIM2K-241/242/245/小201. Reading and flashing through the OBDII diagnostic link connector. Supports GDS format. Vehicles: Elantra MD 1.8, Sonata new, i40 2.0, ix35 new, Ceed new, Cerato new, Optima new, etc., SsangYong Actyon 2.0, Korando.

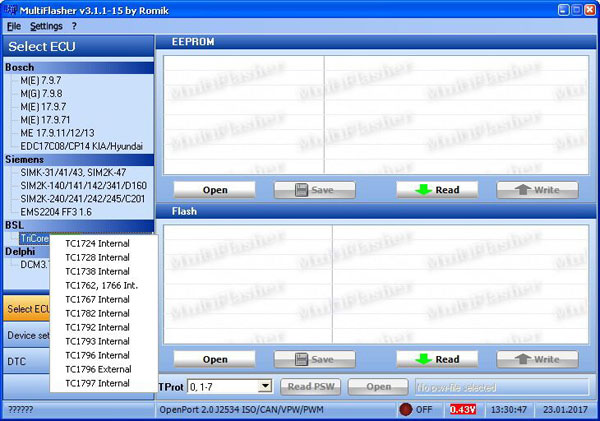

BSL TriCore. Reading and flashing of ECU internal and external FLASH/EEPROM memory with Infineon TriCore TC1724, TC1728, TC1738, TC1762, TC1766, TC1767, TC1782, TC1792, TC1793, TC1796, TC1797 processors in BSL mode. The approximate short list of supported ECUs BOSCH M(E)17.9.7 (VAZ/UAZ), and ME17, ME (D, G)17, EDC17 (AMG, Audi, BMW, Citroen, Honda, Hyundai, KIA, Land Rover, Mercedes, Mini, Peugeot, Porsche, Renault, Saab, Skoda, Toyota, Volkswagen, Volvo).

Special functions:

- checksum and BOSCH digital signature verification/recalculation, Siemens/Continental SIM2K 240-245 checksum verification/recalculation;
- protection passwords reading: BOSCH TPROT 8-10 VAG, TPROT 11-13 KIA/Hyundai, TPROT 12 M(E)17.9.71 袙袗袟/校袗袟, GPT (a special adapter is needed) 懈 Siemens/Continental SID208 Ford, EMS2204 Ford, SIM2K-24x KIA/Hyundai/SsangYong/Chevrolet;
- BOSCH and Siemens/Continental SIM2K 240-245 maps import;
- protection disabling in BOSCH M(E)17.9.71 VAZ/UAZ.

• Bosch M(E)17.9.7. Only ECUs FLASH memory writing of VAZ/UAZ vehicles through the OBDII.;
• Set of modules M(E)17.9.7. Only ECUs FLASH memory writing of VAZ/UAZ vehicles through the OBDII. Special functions: IMMO OFF without opening the ECU. Only ME17.9.7 VAZ!!! Bosch M(E)17.9.71 VAZ/UAZ OBD. For flashing factory files in any ECUs, and tuned files to ECUs with disabled protection (in BSL mode). Special feature - ECU protection state definition;
• EDC17C08/CP14 KIA/Hyundai. Only FLASH memory writing through the OBDII. Vehicles: KIA/Hyundai Ceed 1.6 CRDI, IX35 2.0 CRDI, SantaFe 2.2 CRDI, Sorento 2.2 D, Soul 1.6 D, Sportage 1.7 CRDI / 2.0 CRDI, etc.;
• Bosch ME 17.9.11/12/13. FLASH memory reading and flashing with factory and tuned files through the OBDII. Supports GDS format. Vehicles: KIA/Hyundai with 1.4L, 1.6L engines and an electronic accelerator pedal;
• Bosch M(E) 7.9.7(+). Only FLASH memory writing of M7.9.7, M7.9.7+ and ME7.9.7 controllers installed in Korean and Chinese vehicles through the OBDII, and in Russian vehicles through the ECU connector. Supports SMS-Software compressed format. ME7.9.71 support will be available soon.
• Siemens EMS2204. Only writing FLASH memory writing with factory and tuned files through the OBDII. Supports VBF format. For Ford Focus III with a 1.6L engine.
• Delphi DCM 3.7 SsangYong. FLASH memory reading and writing through the OBDII, all checksums verification, checksum verification and correction for maps area.

Before flashing and after reading the program checks the firmware and checksums structure, and recalculates them if needed. It allows to avoid flashing incorrect dumps or to make sure that reading is correct. It contains a function of errors reading, decoding and reset with a possibility to manually add and edit their description.

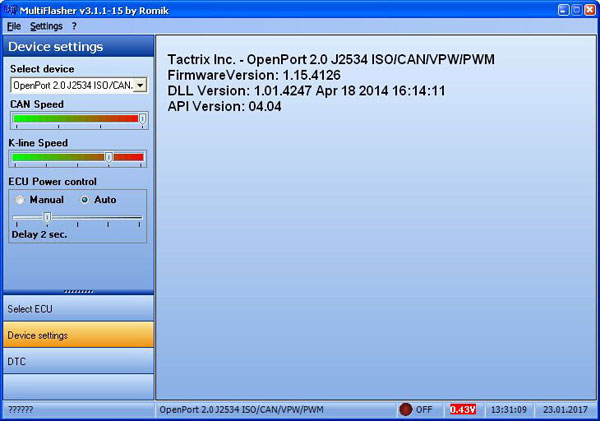

Adapter settings selection:




Package List:

Software
USB-dongle.

MultiFlasher Chip Tuning Software Update Log:
Multiflasher v3.11 :

- Module Bosch EDC17C08/CP14 KIA/Hyundai: improved identification of opened files;
- ID reading update, 10SW005072 is now supported;
- improved connection in all diagnostic modules using CAN-bus. The connection is two times faster now depending on the adapter!

Multiflasher v2.26:

- the function of switching off the protection of the control unit Bosch M (E) has been added to the BSL TriCore module 17.9.71
- the documentation for the module adds a description of new features
- new module Bosch M (E) 17.9.71 VAZ / UAZ OBD. To record factory firmware in any computer, and tuning, in the ECU with disabled (in BSL mode) protection. A special function of the module is to determine the state of protection in the computer.

Multiflasher v2.25:

- TC1793 processor support added to the BSL TriCore module
- the documentation for the module is supplemented with information on Continental / Siemens SIM2K-240
- in the documentation for the module, the connection description of EDC17C57
- for non-Russian users of the bootloader, messages from the BSL TriCore module are translated into English.

Multiflasher v2.24:

- BSL TriCore module adds the ability to import calibrations of the Bosch and Continental / Siemens control units SIM2K-240 - 245
- the recognition of new software for Continental / Siemens SIM2K-243 is added to BSL TriCore module
- Opel keys added to BSL TriCore module
- Continental / Siemens SIM2K-240 information added to the documentation for the module

Multiflasher v2.23:

- Added Volkswagen keys
to the module of the BSL TriCore - the recognition, the display of the IDs, the checking / checking of the checksums of the Continental / Siemens control module SIM2K-240 - 245 have been added to the BSL TriCore module. The documentation for the module has been added

Multiflasher v2.22:

- the TC1728 processor support has been added to the BSL TriCore module
- the documentation for the module has been added - the error of reading the identifiers was corrected, after using the module BSL TriCore

Multiflasher v2.21:

- the function of reading the password of the BOSCH M (E) 17.9.71 (UAZ) blocks has been added to the BSL TriCore module - the support for the TC1724 processor has been added to the module BSL TriCore
- the documentation for the module has been added.
