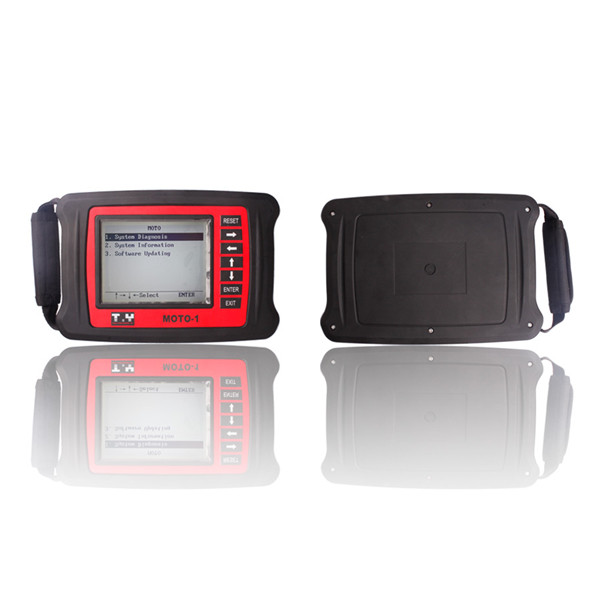

MOTO-1 All Line Motorcycle Electronic Diagnostic Tool

Features:

1. Supports on-line upgrading.
2. Supports the world's main electronic control system diagnosis communication protocol such as IS09141-2, J1979, ISO14230, KWP2000, ISO15765, and J1939, etc.
3. Has such functions as reading computer version, reading current fault codes, reading historical fault codes, clearing fault codes, reading dynamic data stream, carrying out component test and idling adjustment, etc.

Technical Parameter:

Mainframe I/O: standard serial / parallel port
Mainframe power supply: DC12V
Mainframe power: about 9W
Display screen: large LCD with touch screen, with backlight
Ambient temperature: 0-50°C
Relative humidity: <90%

Support Vehicle:

1.Supporting motorcycle manufacturer and electronic control system:
2. Supporting electronic control system: Siemens, Nikuni and Japan Mitsubishi electronic control systems.
3.Supporting electronic control system: Tai Wan LITEON electronic control system
4.Feiying Motorcycle electronic control system: UAES electronic control system
5.Supporting electronic control system: UAES electronic control system
6.Supporting electronic control system: DELPHI, VESTION electronic control system
7.Supporting electronic control system: UAES electronic control system
8.Supporting electronic control system: Japan Mitsubishi electronic control system
9.Supporting electronic control system: Siemens, Nikuni electronic control system

MOTO-1 Package List:

1 Mainframe
2 USB Test Line
3 Battery Clip
4 Power Line
5 Test Connector
6 Test Main Line
7 User Manual
8 UNIVERSAL-3 02-40012
