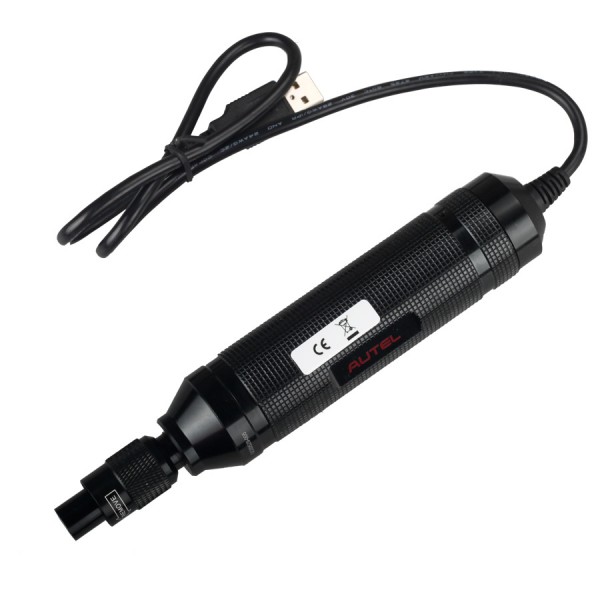

The MV108 digital inspection camera is designed to work with MaxiSys series products or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

White LED lights to illuminate the inspection areas

Small diameter allows it to be used in the tight spaces

Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections

Powerful and perfect for inspecting most spark plug holes

Super bright LED and high resolution provide crystal clear images

Optimal Viewing Distance: 1’’ to 14’’ (2.54cm to 35.56cm)

Image Capture: 640x480

Image Head: 8.5mm (0.33’’)

Operating Temperature: Main Unit: 0°C to 50°C (32°F to 122°F)

Cable: -10°C to 70°C (14°F to 158°F)

Storage Temperature: -20°C to 75°C (-4°F to 167°F)

Waterproof: Imager head and cable to 1m(3’)

Weight: 0.3kg with 8.5mm diameter imager head

Compliance: FCC (EMC), CE (EMC and LVD)
