DrewTech designed this product to be affordable for CarPCs, the aftermarket, and automotive enthusiasts. The mangoose includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.

The package includes:

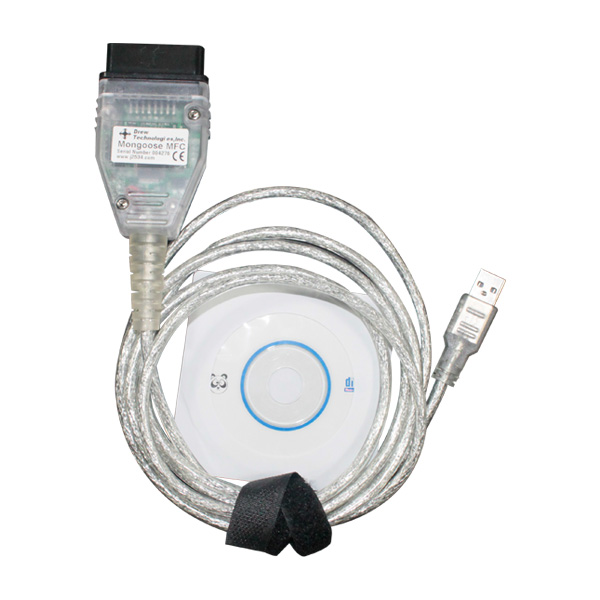

Mangoose vehicle interface
Installation CD with device driver (J2534 compatible)
Bonus CD with PCMScan-Lite software

Mangoose Versions
M-VPWCAN - Compatible with most General Motors and newer domestic vehicles
M-PWMCAN - Compatible with most Ford and newer domestic vehicles
M-ISOCAN - Compatible with most European, Asian, and newer domestic vehicles
If you are unsure of which version to order, contact us to verify compatibility.
Mangoose Features
Lost cost, high performance pass-thru diagnostic tool for use with PC
Simple packaging with electronics contained inside the cable
J2534 and J2534-1 compliant device driver
Commercial Range (0 to +70)
Dimensions: 3" x 1.75"
Cable length: 6 feet
Operating Voltage: Bus-powered by USB
Mangoose VPW supports GM TIS, SPS, TIS2WEB, and DPS flash reprogramming software

Bus Protocols
Mangoose VPW CAN/ISO 15765/GMLAN
GM Class2 (J1850VPW)
Mangoose PWM CAN/(ISO 15765
J1850PWM
Mangoose ISO CAN/ISO 15765
KWP2000 (ISO9141 / ISO14230)
Software Options
The DrewTech mangoose is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that the Mangoose uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by the mangoose, with more being added all of the time.
PCMScan Diagnostics and Data Logging Software

This full version of PCMScan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.
PCMScan running on mangoose ISO and mangoose VPW
PCMScan running on mangoose ISO(M-ISOCAN) or mangoose VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including all GM vehicles and many Ford, BMW, Honda, Toyota, Chrysler, Mitsubishi, Nissan, Volvo, Volkswagen, and many other automaker brands. By 2008 all vehicles on the road will be CAN based and supported by the mangoose ISO/CAN adapter.
API
Drew Technologies also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW™, C or Visual Basic.
