Original Launch x431 V+ Wifi/Bluetooth HD Heavy Duty Truck Diagnostic Module

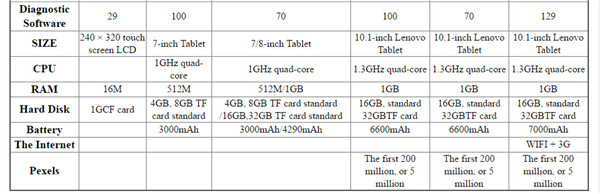

What is advantange compare with x431 + V?

1. HUAWEI Hisilicon Quad-core 1.2G Hz, faster speed.
2. 10.1 inch multi touch screen capacitor provides better view for diagnostic and data flow.
3. 1GB of memory and 8 GB of storage for data.

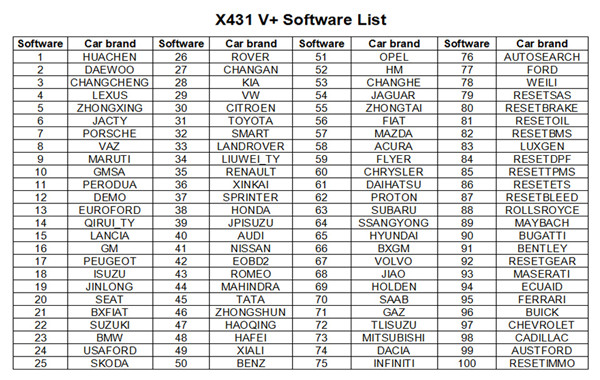

4. Contain 72 car brands from US, europe, asia and so on.
5. Support wifi / Bluetooth and one-click update, 999USD/Year.
6. 6600 mAh Li battery, can keep working for 8 hours.
7. Multi language available: English, German, French, Italian
8. Original goods with full time technical service and warranty.

Part 1: heavy-duty truck diagnostic module details

X-431 V+ heavy-duty module is specifically designed to diagnose diesel and gas-fueled heavy-duty vehicle models of 12V & 24V voltage.

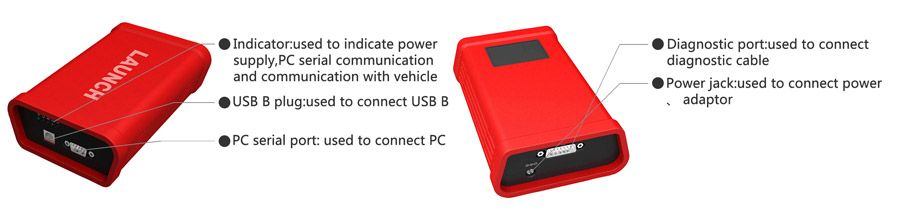

Ports and indicator of heavy-duty truck module


Main Features:

鈼廢nique LAUNCH cloud diagnosis technology
鈼廠upport wired diagnosis
鈼廠upport diagnosis for all car models of gasoline, diesel and natural gas engines that meet
Euro III-Euro VI standards
鈼廔ndustrial shockproof design, perfect for the working environment in repair shops
鈼廇dvanced modularization design technology, automatically switch between12V and24V
power
鈼?Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of all car models worldwide
鈼?Multiple diagnostic devices available, such as X-431 PR03S, X-431 PAD III, etc

Software diagnostic platform:

鈼廟ead fault code
鈼廋lear fault code
鈼廟ead data stream
鈼廇ctuation Test
鈼廠pecial functions
鈼?Read freeze frame
鈼廍CU program

Software of heavy-duty truck module:

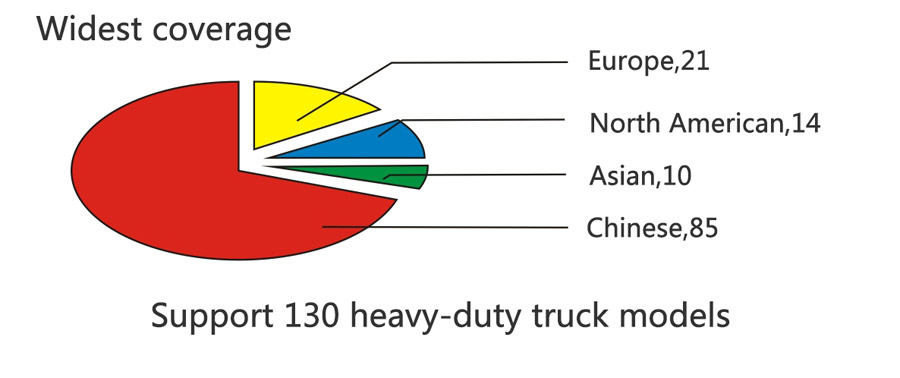

Main Support Truck models:

China: DONGFENG SERIES \ FAW JIEFANG \ SINOTRUK \ FOTON AUMAN \ JAC SERIES \ YUTONG \ KINGLONG……
USA: FREIGHTLINER, INTERNATIONAL, KENWORTH, PETERBILT, STERLING…
Europe: M E RCE DES- BE NZ\ MAN \ VOLV0 \ SCANIA \ IVEC0 \ DAF \ RENAU LT
Asian: HIN0, FUS0, ISUZU, UD, HYUNDAI, ASHOKLEYLAND…

Main working Parameters:

Working temperature:-15-60°C
Storage temperature:-20-70°C
Relative humidity: 10%-80%
Product size: 110mm*178mm*50mm
Communication: USB, Bluetooth, Serial Port

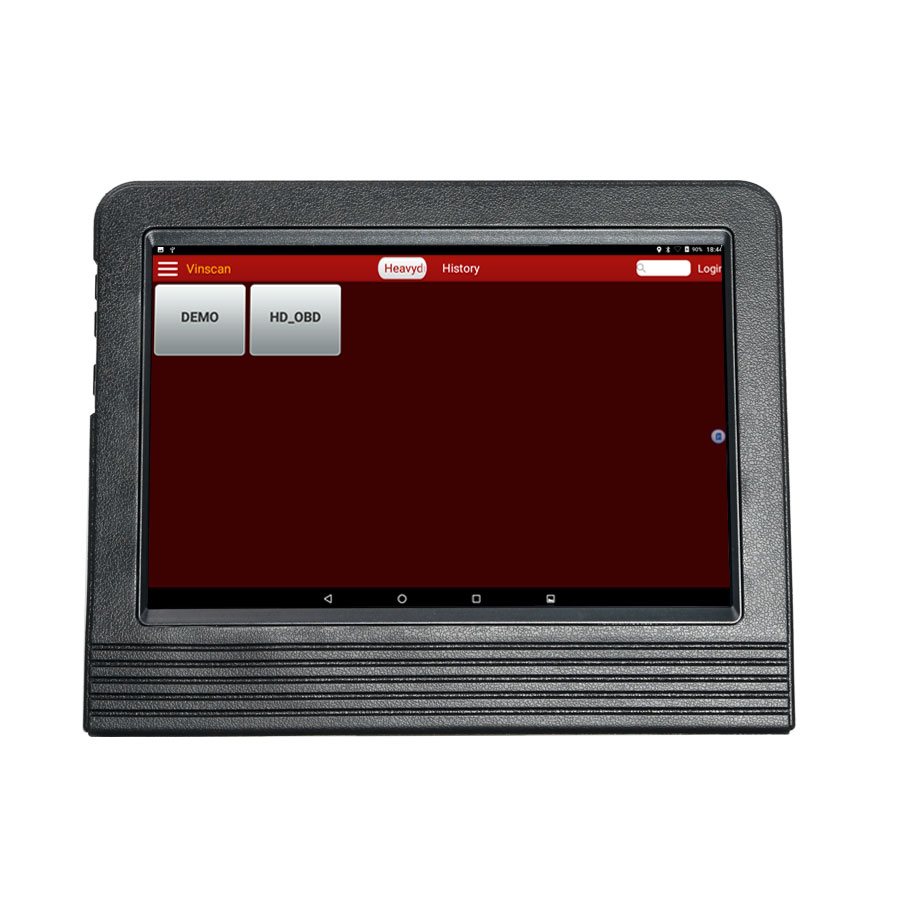

Part 2: X-431 V+ details:

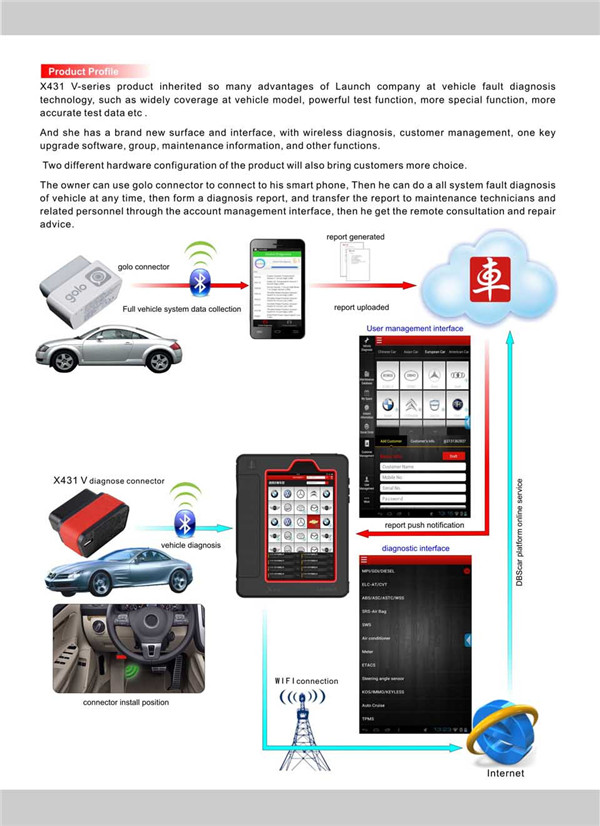

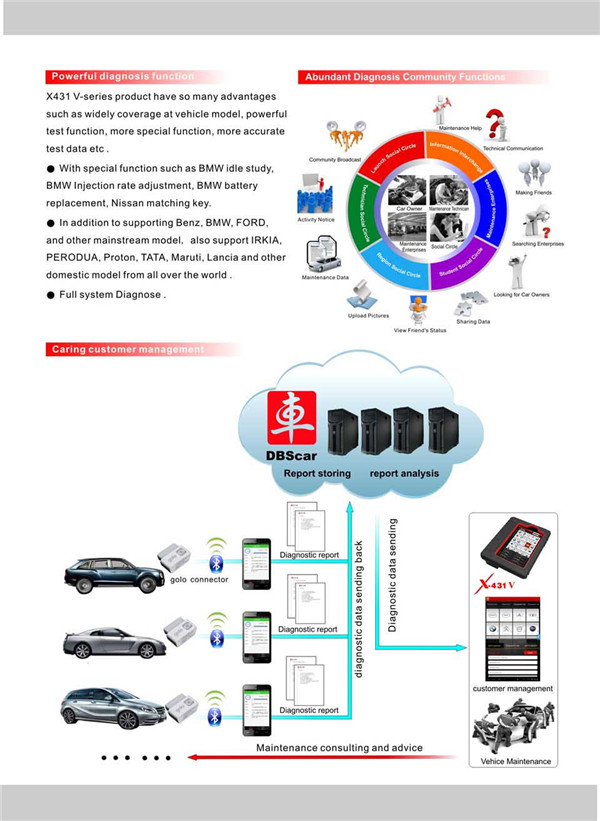

X-431 V+ is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, it achieves full car model and full system vehicle trouble diagnosis, which include Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions.
Meanwhile, taking advantage of mobile internet, it integrates more application and service, such as Repair Data and Update etc.
X-431 V+ adopts a higher performance-price ratio tablet computer, which is equipped with Android 5.1 operating system, 1.3GHz quad core CPU and 10.1" HD display.

X-431 V+ Features:

1. Diagnose:
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read Data Stream, Special Functions etc.
Specially designed for Android platform with user-friendly interface.
Via Bluetooth, it is simple for the diagnostic connector to communicate with X-431 V+.
Equipped with an exclusive X-431 V+ protective sleeve to prevent it from being damaged.
Multiple maintenance and repair functions are supported to boost shop revenue: Electronic throttle position reset/learn and gear learning etc.

2. Repair Data: Provides a mass of service information for various vehicle models, which enables users to retrieve service data of some vehicle online.
3. Update: Lets you update your diagnostic software more efficiently.
4. Browser: Built-in Wi-Fi module makes surfing on the internet freely.
5. Email: Allows you to send and receive emails.
6. Settings: To configure your personalized X-431 V+ through it.
7. Other additional functions: Alarm, Calendar and Calculator etc.

X-431 V+ Technical Parameters:

Operating system: Android 5.1
CPU: Quad-core 1.3GHz processor
Battery: 7000mAh rechargeable polymer lithium battery
Memory: 1GB
Storage capacity: 16GB
LCD: 10.1 inch
LCD resolution: 1280 x 800
Touch screen: Capacitive touch screen
Cameras: 5.0 mega pixels rear and 2.0 mega pixels front
Wi-Fi: Support 802.11a/b/g/h
Bluetooth: Supported
Working temperature: 0鈩?~ 45鈩?br>Storage temperature: -20鈩?~ 70鈩?br>
DBSCar Connector Parameters:

Working voltage: 9 ~18V
Average working current: About 35mA
Standby current: About 25mA
Working temperature: -20 to 55鈩?br>Storage temperature: -30 to 70鈩?br>Storage humidity: <80%
Working humidity: <60%






Heavy Duty Truck Diagnostic Module Software Listing:

1pc x Heavy-duty bluetooth module
1pc x Demo V14.73
1pc x JMC V12.35
1pc x ASTRA V10.42
1pc x BREMACH V10.06
1pc x DAF V11.21
1pc x ERF V10.05
1pc x for FUSO V16.02
1pc x for MACK V10.32
1pc x for MAN V14.71
1pc x for SCANIA V13.51
1pc x WP Diesel Car V10.40
1pc x x431 Diesel Car V1010
1pc x x431,CREDO Heavy Duty V10.20
1pc x x431,IRISBUS Heavy Duty V10.02
1pc x x431,IRIZAR Heavy Duty V10.02
1pc x x431,NEOPLAN Heavy Duty V10.04
1pc x x431,SETRA Heavy Duty V11.00
1pc x x431,SITCAR Heavy Duty V10.05
1pc x x431,UD Truck 2F JP diesel V10.40
1pc x x431, BONLUCK BUS V10.05
1pc x X-431,DongFeng YUFeng V10.03
1pc x x431, for Renault Truck V11.30
1pc x x431, for SUNLONG BUS V10.10
1pc x x431, for SUNWIN BUS V10.01
1pc x x431,ZHONGTONG BUS V10.01
1pc x for Merce.des Ben.z Heavy Duty V16.30
1pc x for FOTON AUMAN V13.40
1pc x for Volvo Heavy Duty V14.83
1pc x for Cummins Engine V14.41
1pc x for Hino Motors V16.50
1pc x for Isuzu Heavy Duty V14.10
1pc x for Hyundai Heav Duty V11.06
1pc x for IVECO Heavy Duty V18.87
1pc x China Heavy Duty V11.21
1pc x Heavy Duty Standard Diagnostic V11.11


Launch x431 V+ HD Heavy Duty Truck Package List:
