Original Launch x431 DIAGUN III Update Online

Top 7 Reasons to Get x431 Diagun III:

Description:

X431 Diagun III is a new professional vehicle diagnostic tool designed and developed by LAUNCH for repair technicians. It's smart, easy to carry, fully functional and convenient to use, and it's the standard equipment for garage technicians.x431 Diagun III+Launch DBS car diagnostic adaptor integrated design,supports wired and Bluetooth wireless diagnosis.Color and touch inductive screen, easy operation.

x431 Diagun III Product Features:

1, Powerful diagnostic functions
2, Wireless diagnosis
3, Fashionable and Integrated design

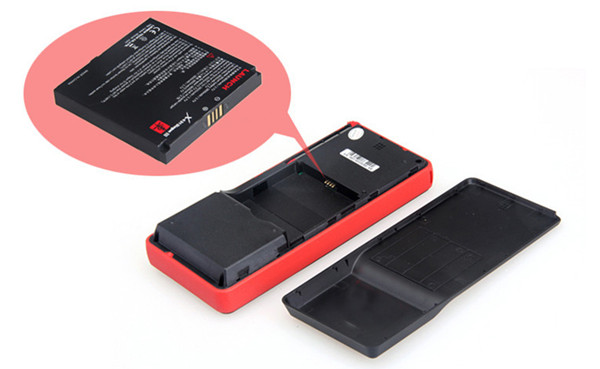

4, Better battery system design
5, Easy for comparison and analysis
6,Two DataStream waveforms displayed in one screen

x431 Diagun III Functions:

Long stand-By time: Can be used continuously 10 hours.

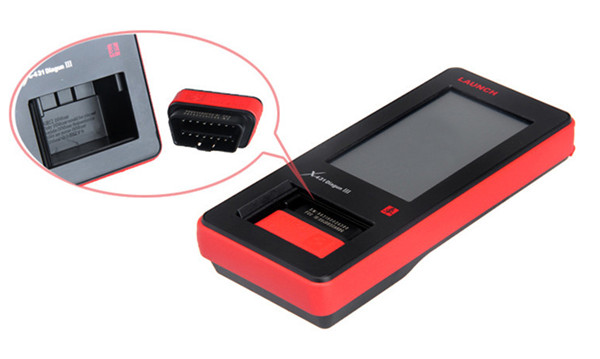

Unique Appearance: Rolling cover design, the DBScar connector is integrated.
Support print function: Support standard USB printer for printing diagnostic result.
Quick Update: Nearly 1,000 software update per year to ensure the functions.
Wireless diagnosis: Main unit can communicate with DBScar connector by Bluetooth(<100m).
Powerful diagnostic: Inherited with all diagnosis function of x-431 with wild software coverage, Asian, European and U.S.

Launch x431 Diagun III Supported Vehicle List: Demo, Smart diagnostic software, Smart OBDII

x431 Diagun III Product Specifications:

CPU --- 400 MHz ARM9
Color Touch Screen --- 480X272, 4.3''
TF card--- 1G
Upgrading/Printer Interface--- USB
Wireless communication Module --- Bluetooth
USB --- Standard USB 2.0 Ports
Working voltage of diagnostic adaptor: DC 12V (DC 24V not yet supported)
Operation system --- WINCE 5.0
Diagnose --- Fully inherits from x431
Update --- Update online
Interface optimization --- entering into diagnosis desktop directly after powering on, easy to use
English/Metric Conversion for PID Values
Quick upgrade --- nearly 1000 times each year

How to Use Launch x431 Diagun III:

1. Connections: Bluetooth (wireless) / Cable (wired) connections
2. Installation Location:

Bluetooth (wireless) Connection Procedure of x-431 Diagun III:

1. Insert the TF card into the slot;
2. Find out the vehicle’s DLC;
3. Plug the 16 PIN end of DBScar diagnostic connector into the vehicle’s DLC.

Launch x431 Diagun III Update and Dealer Code:

1. x431 DIAGUN III Support online update one year for free.
2. After one year, update costs 999USD/Year
3. When you get your device, please give us your serial number, the country you going to use and language you need to our customer service, we will active this product for you. Active takes 24-48 hours.
4. After active it, you can go to DBSCAR Official Website to register and download software. Our Dealer Code is 86A.
5. Learn how to match DBSCAR connector with your Diagun III main unit.

x-431 Function Improvement:

Item	Notes on Improvement	Update Date
Benz Diagnostic Software for x-431 Series V45.80	Compared with the previous version (V45.76): 1. For every chassis, the non-CAN mode SAM DR,SAM PASS systems have been added with read version information, read DTCs, clear DTCs, read data streams, actuation test, and special functions have been added. 2. For the newly-added ID of mesfi system under the 169 and the 245 chassis, the actuation test and special functions have been added 3. For the CAN mode ISM under every chassis, the actuation test and special functions have been added. 4. For the non-CAN mode SCM system under every chassis, the Initial startup has been added. 5. For the 163 chassis, the VIN auto scan function has been improved. 6. For the ESP system under the 211 chassis, the deion of DTC No. 4d41 has been revised.	2012-12-18
JAGUAR Diagnostic Software for x-431 Series V18.11	Compared with the previous version (V18.10), for following models, specific special functions have been added: (1) XJ 2006: oil service counter reset, DPF replacement (only for diesel engine), DPF dynamic regeneration (only for diesel engine). (2) XJ 2008: oil service counter reset, DPF replacement (only for diesel engine), DPF dynamic regeneration (only for diesel engine). (3) S-TYPE 2006: oil service counter reset, DPF replacement (only for diesel engine), DPF dynamic regeneration (only for diesel engine). (4) XF 2008: oil service counter reset, DPF replacement (only for diesel engine), DPF dynamic regeneration (only for diesel engine), DPF fuel related components replacement (only for diesel engine). (5) XK 2010: oil service counter reset, oil level reset, read engine oil level real-time data.	2012-12-18
Chevrolet (SPARK) Diagnostic Software for x-431 Series V17.00	Compared with the previous version (V16.00), the domestic B10 UAES engine system has been added.Note: the latest version of display software shall be used to ensure the normal operation of diagnostic software. Regarding the specific tested contents for this version, please refer to the 'Vehicle Coverage' on x431 website.	2012-12-18
Renault Diagnostic Software for x-431 Series V40.80	Compared with the previous version 1. For WIND model, the following modes have been added: (1) one Injection mode (2) two ABS modes (3) one UCH mode (4) one AIR CONDITIONING mode (5) one Instrument panel mode (6) one AIRBAG/PRETENSIONERS mode (7) one SUNROOF CONTROL UNIT mode (8) two RADIO modes (9) one MULTIMEDIA INTERFACE mode (10) one MULTIMED. CONNECTION mode (11) two VARIABLE P.A.S. modes 2. For WIND model, fourteen systems have been added. 3. For KANGOO MUX model, two Injection modes have been added. 4. For three modes under the PARKING BRAKE system of SCENIC II model, two special functions (Save clutch pedal programming, Write clutch pedal programming) have been revised. 5. For the models after year 2004 (all systems), the DTCs have been improved.	2012-12-17
AUDI Diagnostic Software for x-431 Series V26.31	Compared with the previous version (26.30), 1. The operation instructions for VW model coding, basic adjustment, and channel adjustment match functions have been added. 2. For previous version, the scanning problem and the BUG of DIAGUN software have been revised and optimized.	2012-12-17
CHRYSLER Diagnostic Software for x-431 Series V28.02	This software is issued in 11 language: English, simplified Chinese, traditional Chinese, Spanish, French, Korean, Portuguese, German, Arabic, Italian, and Turkish.Compared with the previous version (V28.01), 1. For the 2011 newly added systems under CAN protocol, the actuation test, system test, and special functions have been added to twenty-six sub modes (including ABS, ACC, AHBM, AHLM, DMRL, DMRR, ESM, HSM, HVAC, ITM, MSMD, PEM, PLGM, PTS, RADIO, SAS, TCM, and TPM, etc.). 2. For the 2011 newly added systems, the way to read DTCs has been readjusted. 3. The mode matching function has been adjusted, which can accurately access the sub mode of system.	2012-12-14
BMW Diagnostic Software for x-431 Series V45.70	This software is issued in 16 languages: simplified Chinese, traditional Chinese, English, German, Spanish, Portuguese, Turkish, Russian, Polish, Italian, Japanese, Arabic, Greek, French, Serbian, and Korean.Compared with the previous version (V45.60). 1. Following specific functions have been added. (1) For the DME under the E60, etc., chassis: Idle speed, Exhaust-gas recirculation, Starting fuel delivery, Limitation delivery, Injection rate, DME/DDE-CAS, Injector rate adjustment, Read measured values, Bleeding, fuel system, Replacement, and particulate filter, etc., special functions. (2) For the CAS under the E60 chassis: CAR KEY MEMORY. 2. The following contents have been improved: (1) For the DME under the E60, etc., chassis: Read measured values (special function) (2) For the EGS, DDE, and MRS under the E46 and E39, etc., chassis: read DTCs, and clear DTCs functions (3) For the FRM, FKA, and ECALL under the F01 chassis: read DTCs function (4) The text libraries in Russian, French, Arabic, Italian, Japanese, Korean, German, simplified Chinese, and traditional Chinese. (5) The Chinese icons of 3GIII	2012-12-7
GM Diagnostic Software for x-431 Series V42.60	This software is issued in 12 languages: simplified Chinese, traditional Chinese, English, Korean, Spanish, German, French, Arabic Russian, Italian, Japanese, and Turkish.Compared with the previous version (V42.50), For following specific models, every system has been added with basic diagnostic functions. (1) 2010 Camaro (2) 2011/2012 Orlando (3) 2011 Chevrolet Equinox (4) 2012 GMC Terrain (5) 2012 Buick LaCrosse/Regal/Verano (6) 2008/2009 Chevrolet HHR(Europe) (7) 2012 Chevrolet Aveo (8) 2012 Cadillac SRX2. For 2006 Cadillac SRX model, the Brake Pedal Position Sensor Relearn function has been added.	2012-12-7
USA FORD Diagnostic Software for x-431 Series V41.70	This software is issued in 9 languages: simplified Chinese, traditional Chinese, English, Spanish, Korean, Portuguese, Arabic, French, and Russian.Compared with the previous version (V41.60), the Passenger Seat Weight Sensor ReZero function has been added to the 2005-2011 Edge, Sable, Expedition, Explorer, F-150, Five Hundred, Mustang, Fusion, and Taurus, etc., fifteen models under the System search menu.	2012-11-30

x431-Diagun III Display:
