KTAG K-TAG ECU Programming Tool Master Version

Top 6 Reasons To Get KTAG Programmer

Notice:
1. Please don't try to update the KTAG, or it will damage the tool
2. Can Only Use Ktag Software from us
3. It has Total 500 Tokens, after you use it up, you can follow this Video and reflash the tokens again
4. reflash CPU or solve the tokens limitation problem software free download Click here
5.The computer which you have installed KESS or KTAG software on cannot connect with internet anytime and anywhere

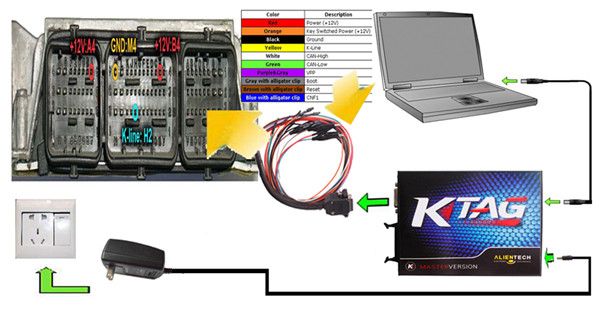

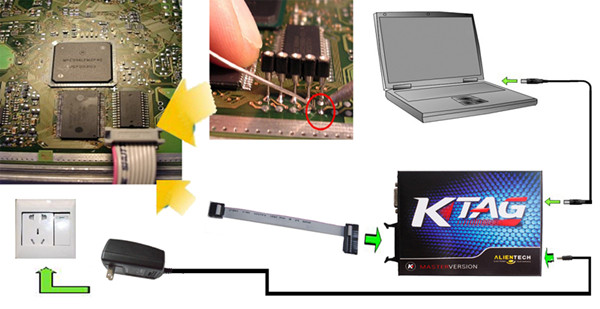

KTAG ECU Programmer Connection Picture Display

The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.

K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

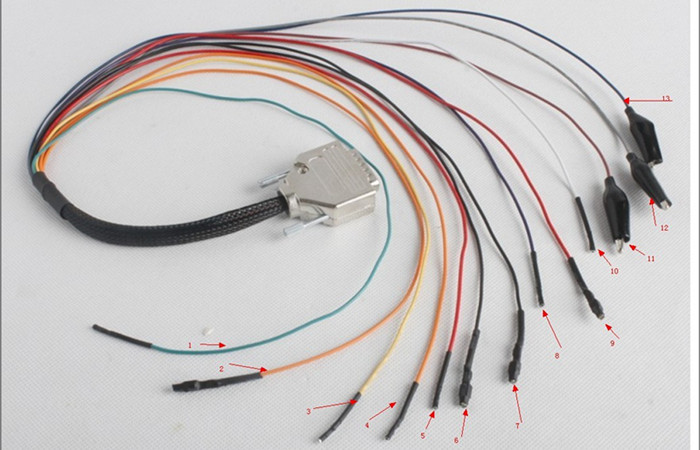

Cables From Left to Right:



1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H

KTAG ECU Programmer Vehicle ECU List:

Note:Here list the motorbike,boat,tractor,car,bus and truck manufacturers,if you want to know more detail about year,vehicle model,ecu type...click here.

Car List:
Abarth,Alfa Romeo,Aston Martin,Audi,Bentley,BMW,Brilliance,Buick,Chevrolet,Chrysler,Chrysler,Citroen,Dacia,Dodge,Donkervoort,Ferrari,Fiat,Ford,GM Daewoo,GMC,Holden,Honda,Hyundai,Infinity,Isuzu,Jaguar,Jeep,Kia,Lamborghini,Lancia,Land Rover,Lotus,LTI Vehicles,Luxgen,Mahindra,Maserati,Mazda,
Mercedes Benz,MG,Mini,Mitsubishi,Mitsubishi Fuso,Nissan,Opel GM,Peugeot,Porsche,Renault,Renault Samsung,Rover,Saab,Saturn,Seat,Skoda,Smart,Ssangyong,Subaru,Suzuki,Toyota,Vauxhall,Volga,VW,Volvo.

Trunck List:
Agrale Truck,Astra Truck,Cummins,Daewoo Truck,Daf Truck,Ford Truck,Hino,International Truck,Iveco Truck,Lexea,Man Truck,Mercedes Truck,Mercedes Truck,
Peterbilt Truck,Renault Truck,Scania Truck,Tata Truck,VW Truck,Volvo Buses,Volvo Truck.

ECU List:
MARELLI,BOSCH,SIEMENS,MELCO,MOTOROLA,TRW,FORD,SIMOS,MITSUBISHI,DELPHI,JOHNSON,CONTINENAL,VALEO,VISTEON,EEC VI,TRANSTRON,KEFICO,MEMS,DENSO,EFI,HITACHI,SAGEM,VALEO,TRIONIC,SIMOS,PHOENIX,HEINZMANN,CUMMINS,TEMIC,LUCAS.

Tractor List:Agco Tractors,Bombardier,Case Tractors,Cmi,Deutz,Fendt Tractors,Hyundai Tractor,Jcb Tractor,John Deere,Lamborghini Tractor
Landini Tractor,Linde Ag,Massey Ferguson,Matrot,Mc Cormick,New Holland,Same Tractor,Tigercat Tractor,Valtra Tractor.

Motorbike:
Adiva,Aprilia,BMW Motorrad,Derbi,Ducati,Gilera,Kawasaki,Moto Guzzi,Moto Morini,Mv Agusta,Piaggio,Polaris,Iveco Marine,Mercury Marine.

Boat List:
Mercury Marine,Mercury Racing,Volvo Penta,Yamaha.


Following Details of the Accessories Available in Car List Catalog Per Group of Protocols of Communication

BDM Motorola MPC5XX
14AS00T01S: Adapter to be soldered to the ECU
14AS00T02S: Cable with connector to be soldered to the ECU
14AS00T03S: Adapter to be soldered to the ECU
14AS00T04S: Adapter to be soldered to the ECU
14AM00T00M: Board for connection through positioning frame
14AM00T01M: Board for connection through positioning frame
14AM00T02M: Board for connection through positioning frame
14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03

J-TAG Nexus MPC5xx
14AS00T05S: Adapter to be soldered to the ECU
14AM00T05M: Board for connection through positioning frame
14AM00T06M: Board for connection through positioning frame

J-TAG RENESAS SH705xx
14AM00T07M: Write Board for connection through positioning frame
14AM00T08M: Write Board for connection through positioning frame
14AM00T09M: Write Board for connection through positioning frame
14AM00T10M: Read Board for connection through positioning frame
14AM00T11M: Read Board for connection through positioning frame

BOOTLOADER INFINEON TRICORE
14P600KT04: Board for connection through positioning frame

BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame

Difference Between Kess V2 and Ktag

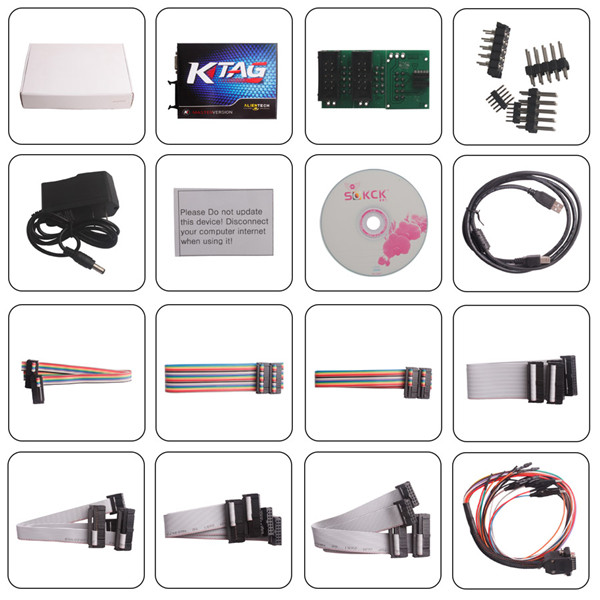

KTAG ECU Programmer Package List:
