JINGJI P2 Flat Key Cutting Machine

Top 6 Reasons to get JINGJI P2 Flat Key Cutting Machine:

1. Sheet meta l stamping welding structure is durable and long-lasting
2. Left outer diameter Φ 80 mm 40° V cutter and right outer diameter Φ 80 mm flat cutter
3. Left and right clamps working seperately and move smoothly
4. Micrometric (Patent) tracer adjustment mechanism for p recise calibration with the cutter
5.Four-sided revolving clamp and super wide space between clamps make flip key cutting possible
6. Y axis ballscrew

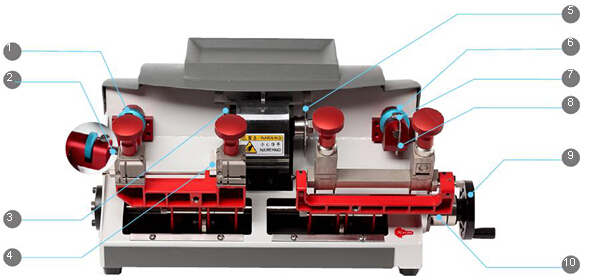

1.Micrometric adjustment wheel
2.Revolving clamp
3.40° V cutter
4.Spacer/ Locating plate
5.1.4mm Flat cutter
6.Micrometric adjustment wheel
7.Tighten/ loosen screw to fix tracer
8.Right Tracer
9.Working hand wheel
10.Pin to work seperately

JINGJI P2 Flat Key Cutting Machine Machine Parameters:

Product name:JingJi P2 flat key cutting machine
Dimensions:L535MM*W290MM*H270MM
weight:G.W 27KG (N.W 25KG)
Working method:Manual
Error scope:≤0.02mm
Keys:Cylinder and special keys
Jaw:Four-sided revolving clamp
Voltage:AC220V
Current:10A
Power:120W 50-60HZ
Material:Sheet metal stamping welding
Revolution:1200rpm/min
Voice:Nearly silent

Package Includes:

1pc x JINGJI P2 Flat Key Cutting Machine
