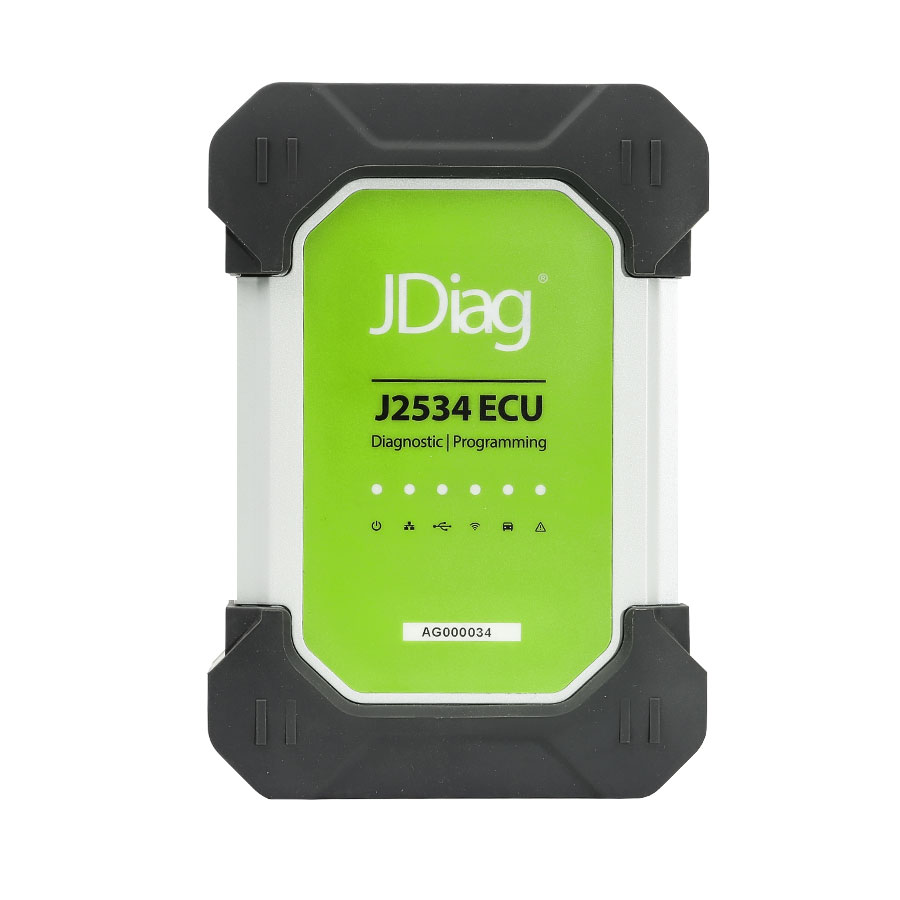

: Large Image :JDiag Elite II Pro J2534 Device with Full Adapters and Software

JDiag Elite II Pro J2534 Device with Full Adapters and Software

JDiag Elite II Pro is a professional programming equipment which can fully support 聽the international programming protocols SAE J2534-1 and J2534-2, can support ECU programming for hundreds of models from dozens car brands, it has powerful functions, stable performance, professional intelligence, is the best choice for the comprehensive vehicle maintenance shop to do the high-ranking professional vehicle diagnosis and programming.

Descriptions of JDiag Elite II Pro J2534 Device with Full Adapters and Software

JDiag Elite II Pro is a professional programming equipment which can fully support 聽the international programming protocols
SAE J2534-1 and J2534-2, can support ECU programming for hundreds of models from dozens car brands, it has powerful functions,
stable performance, professional intelligence, is the best choice for the comprehensive vehicle maintenance shop to do the
high-ranking professional vehicle diagnosis and programming.

JDiag Elite II Pro J2534 Device with Full Adapters

JDiag Elite II Pro is a professional programming equipment which can fully support the international programming protocols
SAE J2534-1 and J2534-2, can support ECU programming for hundreds of models from dozens car brands, it has powerful functions,
stable performance, professional intelligence, is the best choice for the comprehensive vehicle maintenance shop to do the
high-ranking professional vehicle diagnosis and programming.

Main functions:

1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards, support car single module/whole car programming,
record the database of interrupt programming and other special functions can effectively prevent the system to be crash.

2. Compatible with Land Rover, Jaguar, Mercedes-Benz, Volvo, Toyota, GM, Ford and other cars for OEM diagnostics, can support hundreds
of models of dozens car brands from imports/joint ventures for diagnostic, fast and intelligent.

3. Replace the VCI Bluetooth converter directly by using wireless WIFI, cable and other ways to connect with the JDiag diagnostic
computer for diagnosis, can do testing via a variety of connection methods, much exible and convenient;

4. Using high-quality materials, design is solid and strong, wear-resistant wear, more durable, diagnostic interface is
made by aluminum alloy, computer is using industrial materials.

Product advantages:

1. It is a multi-check, highly integrated computer diagnostic tester, the products in current market can only support
single-brand diagnostic or programming, even if there are some products can work with different brands of cars,
but only can do diagnostic, not able to do programming;

2. Elite II is a perfect whole set which includes the interface, software, computer and different vehicle adapters,
the device is ready to work when you get, no need to prepare or install other accessories, no need to worry about the
incompatibility issues between equipment and software, no need to worry about the problems of the guidance for using,
after-sales service and so on.

Technical Parameters

Bus Protocols

CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)

2nd CAN (Dual or Single Wire)

Ford SCP (J1850PWM)

GM Class2 (J1850VPW)

KWP2000 (ISO9141/14230)

Chrysler SCI (J2610)

Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004) SAE J2534-2 (Dec 2014)

Compliant to ISO 22900-1 MVCI physical layer

Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux

6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)

Ground pins 9, 12, or 15

Internal Compact Flash slot (must be configured when ordering)

Optional external Compact Flash slot

Product Specifications

Operating voltage: 7-26 Volts

VCI Size: 20cm (L) x 14cm (W) x 4.5cm (H)

Operating Temperature: Commercial Range (0 to +70 C)

ISO22900 Compliant for GM’s Tech2WIN software

Package includes:

1 pc x Elite II Pro Interface

1 pc x Main Cable

1 pc x Lan Cable

1 pc x USB Cable

1 pc x OBDII Adapter

1 pc x Honda 3 Pin Adapter

1 pc x Toyota 17 Pin Adapter

1 pc x BMW 20 Pin Adapter

1 pc x GM 12 Pin Adapter

1 pc x Benz 38 Pin Cable

1 pc x Opel 10 Pin Cable

1 pc x Audi 4 Pin Cable

1 pc x Plastic Box
