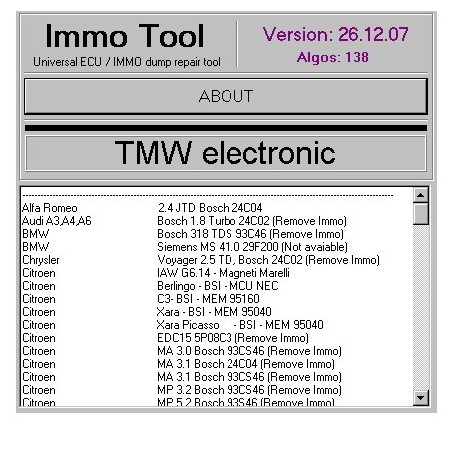

IMMO TOOL V26.12.2007
Immo Tool -SOFTWARE WHICH ENABLES THE REPAIR AND CODING IMMOBILISERS AND ENGINE ECU

1. What is Immo Tool?

Immo Tool is a software kit which enables the repair and coding of engine ECUs and immobilisers. The main aim of the Immo Tool manufacturer is to simplify and automate the process of matching and programming second hand engine ECUs and immobilisers, making it possible to reuse them. Generally, we can say that Immo Tool is a set of solutions gathered together in one big software application.

2. How is THE JOB done?

Immo Tool works on files so you need several programmers to read and write the devices you work with. Working with the software involves:
1).choosing the car type and ECU type (this involves coding algorithm of the immo entries)
2). loading the right file
3). starting the program
4). saving the modified file or loading the decoded PIN or VIN codes
5). programming the target system with the modified file

A file which has been properly modified and loaded to ECU memory makes it possible to activate a second hand ECU to start in a new environment / new car. It can be assumed (with just a few exceptions) that the modified ECU will work just like its brand new equivalent ready for coding / self coding. In some cases the new ECU will work without the coding function enabling to test the car engine with a damaged Immo device or even without any immo devices.

3. What do you need to start work with Immo Tool?

The software works on files and reading of the memory contents is your problem. Sometimes it is possible via diagnosis but in most cases you would have to take the ECU out of the car and read the contents of the memory. In our opinion you need:
1). universal programmer able to read / write Eprom and flash memories
2). universal programmer able to read / write serial memories (SPI, I2C, uWire)
3). several Motorola programmers (HC 908, 912, 05, 11) Texas Instruments Microcontroller programmers (TMS370, TMS374)
4). other programmers (strange hybrid from Opel, Fiat)
5). a tool that can read the contents of ECU via diagnosis line would be of a great advantage

After modifying the memory contents it would be nice to test the ECU on desk by emulating the camshaft / crankshaft sensor signals. Take a look at our PG07 sensor emulator.

4. What are the system requirements?

Generally the software will run on every x86 machine working on windows 2K/XP, equipped with a free USB port and capable of working in 1024x768 resolution. Our recommendation is a windows XP based host with at least 512 MB of RAM memory.

5. Support the following ecu's

ALFA ROMEO:

1. Repair ECU, Remove Immo - BOSCH Twin Spark (Alfa Model 156), BOSCH 0 261 204 772 - 24C02 memory
2. Repair ECU - BOSCH JTD 2.4 5 plugs 24C04 memory

AUDI:

1. Audi A2 - PIN decoder loaded 93C86-16
2. ECU - Bosch 1,8 Turbo with 24C02 memory, BOSCH 0 261 204 678,778,818,805

BMW:

1. BMW 318 TDS Bosch 0 281 001 243 - 93C46(B58323)
2. REPAIR ECU BMW 2.0L - 2.8L on Siemens MS41.0 DME 29F200

CITROEN:

1. Calculate - Citroen Berlingo/BSI - MCU NEC
2. Calculate - Citroen C3/BSI - MEM 95160
3. Calculate - Citroen Xara/BSI - MEM 95040
4. Calculate - Citroen Xara Picasso/BSI - MEM 95040
5. Decrypt-Encrypt Citroen/Peugeot dump-file
6. Programm Citroen/Peugeot EDC15 PIN MEM 5P08C3
7. Programm Citroen/Peugeot EDC16 PIN MEM 95160
8. Programm Citroen/Peugeot ECU ME 7.4.4 Bosch
9. Repair ECU - MAGNETI MARELLI IAW G 6.14 (Model ZX), ECU - with HC11 Motorola/Toshiba mcu
10. Repair ECU - Citroen/Peugeot EDC15 5P08C3 PIN (Remove Immo action)
11. Repair ECU - Citroen Saxo 1,6 - 8 Valves, ECU Bosch MP5.2 93S46 - Remove Immo action
12. Repair ECU - Citroen Saxo 1,0 - ECU Bosch MA3.1 24C02 - Remove Immo action
13. Calculate PIN Citroen/Peugeot EDC15 PIN 95P08
14. Calculate PIN Citroen/Peugeot EDC16 PIN 95160
15. Repair ECU - PSA - ECU Bosch MP7.2 24C02 - Remove Immo action
16. Repair ECU - PSA - ECU Bosch MP7.3 24C02 - Remove Immo action
17. Repair ECU - PSA - ECU Bosch MA 3.0 93S46 - Remove Immo action
18. Repair ECU - PSA - ECU Bosch MA 3.1 93S46 - Remove Immo action
19. Repair ECU - PSA - ECU Bosch MA 3.2 93S46 - Remove Immo action
20. Calculate PIN - Citroen/Peugeot SID803 ECU Siemens MEM 95320
21. Programm PIN - Citroen/Peugeot SID803 ECU Siemens MEM 95320
22. Calculate PIN - Citroen/Peugeot Bosch ECU ME 7.4.4

FIAT:

1. Repair ECU - BOSCH with 24C02 memory ECU - BOSCH 0 261 204 405
2. Repair ECU - MAGNETI MARELLI IAW 5NF.T1 with 95160
3. Repair ECU - MAGNETI MARELLI IAW 16F.XX with HC11F1 MCU
4. Repair ECU - MAGNETI MARELLI IAW 1ABB.92 with TMS374 MCU
5. Repair ECU - MAGNETI MARELLI IAW 1AF.1G with TMS374 MCU
6. Repair ECU - HITACHI MFI 003BC2 with 59C11 MEM
7. Repair ECU - BOSCH 0 281 010 488 with 5P08C3 MEM 95P08
8. Repair ECU - MAGNETI MARELLI IAW 4AF.M1 with 95160
9. Repair ECU - MAGNETI MARELLI IAW 4AF.M7 with 95160
10. Repair ECU - MAGNETI MARELLI IAW 4AF.M9 with 95160
11. Repair ECU - MAGNETI MARELLI IAW 4AF.S2 with 95160
12. Repair ECU - MAGNETI MARELLI IAW 8P.22 with HC11 mcu
13. Repair ECU - MAGNETI MARELLI IAW 18F.XX with HC11F1 mcu
14. Repair ECU - MAGNETI MARELLI IAW 49F.B4 with 95040
15. Repair ECU - MAGNETI MARELLI IAW 8F.5T with HC11E9 mcu
16. Repair ECU - MAGNETI MARELLI IAW 8F.6B with HC11E9 mcu
17. Repair ECU - DELCO BPKA 2 plugs(beige+red) with HC11F1 mcu e.g. DELCO - 162 142 79
18. Repair ECU - MAGNETI MARELLI IAW 59F.M2 (Hybrid) 95080
19. Repair ECU - MAGNETI MARELLI IAW 59F.M3 (Hybrid) 95080
20. Repair ECU - MAGNETI MARELLI IAW 59F.M7 (Hybrid) 95080
21. Repair ECU - MAGNETI MARELLI IAW 59F.M9 (Hybrid) 95080
22. Repair ECU - LUCAS DCU3F with 95080 memory
23. Repair ECU - IAW 8F.5T with Magneti Marelli HC11F1 mcu
24. Repair ECU - MAGNETI MARELLI IAW 1AF.13 with TMS374 MCU
25. Repair ECU - MAGNETI MARELLI IAW 1AF.15 with TMS374 MCU
26. Repair ECU - MAGNETI MARELLI IAW 1AF.17 with TMS374 MCU
27. Repair ECU - MAGNETI MARELLI IAW 1ABG.81 with TMS374 MCU
28. Repair ECU - MAGNETI MARELLI 1G7SP.71 with HC11F1 MCU (C/R immo)
Clear immo solution, for remove immo - cut immobiliser line

KIA:

1. Repair ECU - SIEMENS K103735120A with TMS374 MCU
2. Repair ECU - BOSCH Engine 2.0 16V with 24C02

MAZDA:

1. Repair ECU Mazda 323 Diesel with ST93c56 Denso ECU and Mitsubishi Immo Box
Use this option to prepare the ECU for coding a new key

MERCEDES-BENZ:

1. Repair C,E class (inra-red) (Step 1/2) - ECU Motorola HC11E9 Lucas ECU
2. Repair Mercedes Benz (C and E Class) infra-red (Step 2/2) - Immo file Motorola HC05 Siemens
3. Sprinter Start Error PROBLEM Temic - Motorola HC08
4. Vito START ERROR PROBLEM Temic - Motorola HC05
5. Vito START ERROR PROBLEM Temic - Motorola HC08
6. Unlock ECU Sprinter Prepare ECU for coding ECU with 1 plug and 24C02 MEM
7. Unlock ECU Sprinter Prepare ECU for coding with 5 plugs and 5P08C3 MEM 95P08
8. Unlock ECU Vito Prepare ECU for coding with 5 plugs and 24C04 MEM
9. Repair A class ECU Siemens/VDO with 29F200 memory
10. START ERROR PROBLEM Sprinter 2.2 , 2.7 to repair damaged ECU, WSP must be OK ECU with 5 plugs and 5P08C3 MEM 95P08
11. Unlock ECU (prepare for coding) - EDC16, MEM 95320

OPEL:

1. Repair ECU - DELCO with HC11F1 MCU (2 plugs (red+white))
2. UNLOCK ECU (prep. for coding) - BOSCH DTL with 24C04 memory and 29F200
3. Repair ECU - DELCO with HC11F1 MCU (2 plugs (blue+grey))
4. Repair ECU Siemens Simtec 56.1 with 93C56 MEM
5. UNLOCK ECU (prep. for coding) Bosch - DTL 24C04 + 2x29f010
6. Repair ECU - Siemens Simtec 56.1 with 29F010 MEM - Remove Immo
7. Repair ECU - (1.7, 2.0) 16V - Turbo Diesel (Remove Immo)
8. Repair ECU - 1.2 8V Delco/GM with 27C256 MEM (Remove Immo)
9. Repair ECU - BOSCH Motronic based on 24c02 I2C MEM
10. Repair ECU - (2.5) Turbo Diesel Bosch - Opel/BMW 2 x 93C46 MEM (Remove Immo)

PEUGEOT:

1. Programm PIN Peugeot Sagem S2000
2. Calculate Peugeot 206/BSI - MEM 95160
3. Calculate Peugeot 206/BSI - MCU HC912
4. Calculate Peugeot 307/BSI - MCU HC912
5. Calculate Peugeot 307/BSI - MEM 95160
6. Repair ECU - BOSCH MP5.1.1 with 93C46 memory
7. Repair ECU - SAGEM S2000 with 95080 memory
8. Repair ECU - IAW 1AP.80 - Magneti Marelli with TMS374 MCU
9. Repair ECU - IAW 1AP.81 - Magneti Marelli with TMS374 MCU
10. Repair ECU - IAW 1AP.40 - Magneti Marelli with TMS374 MCU
11. Repair ECU - SL96 9 Sagem with TMS374 MCU + 1x28F512
12. Repair ECU - 2.3, 2.8 JTD BOSCH 0 281 010 484 with 5P08C3 MEM 95P08
13. Repair ECU - IAW 1AP.20 - Magneti Marelli with TMS374 MCU
14. Repair ECU - IAW 1AP.90 - Magneti Marelli with TMS374 MCU
15. Repair ECU - IAW 48P2.xx Magneti Marelli with 29F400 MEM (1.1 Engine)
16. Repair ECU - SL96 9 Sagem with TMS374 MCU + 2x28F512
17. Repair ECU - IAW 1AP.41 Magneti Marelli with TMS374 MCU
18. Repair ECU - IAW 1AP.43 Magneti Marelli with TMS374 MCU
19. Repair ECU - IAW 1AP.83 Magneti Marelli with TMS374 MCU
20. Repair ECU - IAW 8P.xx Magneti Marelli with HC11A8 MCU
21. Repair ECU - SAGEM S2000RPM with 95080 memory
22. Repair ECU XXX PSA Johnson Controls - MEM 95160 memory, Remove Immo !
23. Repair ECU IAW 6LP2.02 - Magneti Marelli ST10F280 MCU, Clear Immo !
24. Repair ECU EDC16 Bosch EDC16C34, Remove Immo ! 95640 MEM

RENAULT:

1. Repair ECU - Magneti Marelli 5NR.xx - hybrid
2. Repair ECU - EDC15C3 - BOSCH with 5P08C3 memory 95P08
3. Repair ECU - DELPHI with 95080 memory
4. Repair ECU - LUCAS DCU3R with 25080 memory, Clear Immo!
5. Repair ECU - LUCAS DCU3R with 25080 memory, Remove immo!
6. Repair ECU - SIEMENS - SIRIUS32 with 29F200 memory
7. Repair ECU - SIEMENS - SIRIUS34 with 29F400 memory (Algo 1)
8. Repair ECU - Fenix 5 SIEMENS - with TMS374 MCU (TMS374C003A)
9. Repair ECU - SIEMENS - FENIX 3 with HC11E9 mcu
10. Repair ECU - Magneti Marelli - IAW5NR2.XX with 95160 memory, clear immo
11. Repair ECU - Magneti Marelli - IAW5NR2.XX with 95160 memory, clear immo
12. Repair ECU - Bosch - 1.9 DTI (2 plugs) with 24C04 memory e.g.
ECU - BOSCH 0 281 010 502 - 24C04 memory
ECU - BOSCH 0 281 010 442 - 24C04 memory
13. Repair ECU - Bosch - 1.9 DTI (1 plug) MSA 15.5 with 24C02 memory
14. Repair ECU - Magneti Marelli - IAW 6R.20 with TMS370 mcu
15. Repair ECU - Magneti Marelli - IAW 6R.30 with TMS370 mcu
16. Repair ECU - SIEMENS - SIRIUS32 (Engine 16V) with 29F200 memory
17. Repair ECU - Delphi - 1,5DCI with 95160 memory, Remove crash blockade
This solution removes crash entry - created after an accident.
18. Repair ECU - SIEMENS - SIRIUS35 with 29F400 memory
19. Repair ECU - SIEMENS - SIRIUS34 with 29F400 memory (Algo 2)
20. Repair Megane 2 steering lock with 24C04 memory
21. ECU - Bosch - MP 7.0 with 24C02 memory
22. Repair ECU - Magneti Marelli - IAW 8R.30 with HC11A1 mcu (Remove Immo)

ROVER:

1. Repair ECU - ROVER M.E.M.S - with 93C46 memory

SKODA:

1. Repair ECU - SIEMENS - SIMOS with 93C56 memory

TOYOTA:

1. Repair ECU - YARIS - Denso - with 93C56 memory
2. Programm - IMMO Keys for External Immo Box with 93LC66 memory and 4C Texas transponder

V.A.G.

1. Repair ECU - BOSCH with 24C04 memory e.g.
ECU - BOSCH 0 281 010 179 - 24C04 memory
ECU - BOSCH 0 281 010 407 - 24C04 memory
ECU - BOSCH 0 281 010 497 - 24C04 memory
ECU - BOSCH 0 281 010 199 - 24C04 memory
ECU - BOSCH 0 281 010 385 - 24C04 memory
ECU - BOSCH 0 281 010 179 - 24C04 memory

2. Calculate ECU - BOSCH EDC16 with 95320 memory

3. Calculate IMMO - SIEMENS 5WK4 678-1H0 953 257 BB with HC05 MCU

4. Calculate IMMO - SIEMENS 5WK4 7740-6H0 953 257 B with TMS370 MCU

5. Calculate IMMO - VALEO 6X0 953 257 with 24C04 MEM

6. Calculate IMMO - VW LT with HC05X16 MCU

7. Calculate IMMO - White Box with C46A6 - 93C46 MEM, 4A0 953 234 F - f+g megamos

8. Repair ECU TDI (1 plug) Bosch - 24C02 MEM

9. Repair ECU TDI (2 plugs) Bosch - 24C02 MEM

10. Repair ECU - BOSCH EDC16 with 95320 memory (Remove Immo)

11. Repair ECU - BOSCH ME7.x(x) with 95040 memory (Remove Immo)

12. Repair ECU - Simos with 93C76 memory, Siemens, Remove Immo

OTHER:

1. DAEWOO - Repair ECU - SIEMENS K115000010G with TMS374 MCU
2. POLONEZ - Repair ECU - DELCO CHNW with HC11F1 MCU
3. Universal file decoder: Enter coding word and press start
4. IVECO Daily - Repair - ECU - BOSCH with 2416 MEM e.g.
ECU - BOSCH 0 281 001 537 - 24C16 memory
5. Chrysler Voyager 2.5 TD, Remove Immo, ECU - BOSCH with 24C02 memory e.g. ECU - BOSCH 0 281 001 768 - 24C02 memory
