I-2014 Multi-Diag Access J2534 Pass-Thru OBD2 Device

New Arrival I-2014 Multi-Diag Access J2534 Pass-Thru OBD2 Device support 23 brands updated, 5300 new systems, which is a perfect choice for workshops in-depth information on a wide range of vehicles.

Descriptions of I-2014 Multi-Diag Access J2534 Pass-Thru OBD2 Device

New Arrival I-2014 Multi-Diag Access J2534 Pass-Thru OBD2 Device
1. Support 23 brands updated, 5300 new systems (list of systems updated in Multi-Diag since DVD IV-2013).
2.Ideal for independent workshops require a diagnostic tool that truly multi-brand delivers in-depth information on a wide range of vehicles.
3.Diagnosis codes from all computers

New Arrival I-2014 Multi-Diag Access J2534 Pass-Thru OBD2 Device

Top 4 Reasons to Get I-2014 J2534:

1. Latest Version: V2014.01

2. Support Multi-languages: English, Spanish, German, French, Italian, Portuguese, Bulgarian, Croatian, Czech, Danish, Dutch, Finnish, Hebrew, Hungarian, Polish, Romanian, Russian, Serbian, Slovenian, Swedish, Turkish
3. Support 23 Brands Updated, 5300 New Systems
4. Operating System: Windows XP; Windows 7 32bit

Notice:
1. J2534 2014-1 Version Software Free Download (Do not connect with internet, and before you install the software, follow our video to install software and driver correctly)

2. I-2014V Multi-Diag Access J2534 needs activation, after installing the software pls send ID (format is 31-xxxxxxxxxxx) to us, we will send the activation code.

Installation Multi-diag 1-2014:

1). Open folder (1) Key on the CD and run the file KeyUpdate. Then confirm and wait for the message "successfully installed XXXXXX" and click "OK"

2). Start the installation folder (2) 1-2014 During your installation, if the software request an unlock key 31-xxxxxxxxxx, please contact us with the key to obtain an activation code.

3). Select the language, then it will continue to install, please wait until the software complete installation, usually it will take about 30 minutes to 2 hours, how much time to wait it depends on your computer configuration. When the message display saying "Multi-Diag is currently installed with profile ACTIA. Before you can use the program, you must restart your computer." Click "No, I will restart my computer later" and click "Finish"

4). Go to the following folder C: \ ACTIA \ portal and then delete the file "WEGT.EXE", and clean "Recycle Bin"

5). After delete this file, open folder (1) Key on the CD and run the file KeyUpdate. Then confirm and wait for the message saying "successfully installed XXXXXX" and click "OK"

6). Then install "xs-ime-pt-207p-workshop.exe". At the step, please connect the device to the car, then use the USB cable to connect with the computer, then it will prompt to install Pass Thru driver.

7). Go to My Computer - Properties - Hardware - Device Manager, when you find PC- 201411261510 - I+ME ACTIA XS Device and PassThru+ XS USB Driver, it means Multi Diag Access has successfully establish communication with the computer.

Then you can restart the pc.

Multi-Diag J2534 Functions:

After selecting the car manufacturer, then you can make the diagnosis for the different menus on offer (depending on cars models):

1. Maintenance

Diagnosis codes from all computers

Reset maintenance interval

Modification of the sewage

Read / erase fault calculators

Maintenance of the particulate filter

2. Air Conditioning

Diagnosis of cooling electronic

Reading settings cooling circuit,

Test servo actuators

3. Pollution control

Diagnosis of the particulate filter

Electronic control of pollutant emissions

Control of the Lambda probe

4. Liaison to the ground

Electronic configuration of the size of tires,

Electronic configuration of tires (winter / summer),

Setting valves tire pressure

Diagnosis and management of shock-driven

Calibration of the sensor angle Driving (initialization of the steering angle)

5. Body

Implementation of safety airbags (lock / unlock)

Reconfiguration of a new calculator Airbag,

Diagnosis of calculators Airbag,

Rain sensor windshield (reading and erasing fault)

Test panel and activators of lights,

Setting Xenon headlights,

Rear radar

6. Post-Equipment

Setting up the radio,

Configuration loader CD,

Setting alarms

Configuration of the coupler,

Configuration bicycle loading system

7. Braking

Diagnosis of calculators ABS, ESP.

Diagnosis and unlock electric brakes.

Flush the brake system.

8. Motor

Diagnosis of any calculator injection engine (diesel, gasoline, flexfuel, etc. ..)

Programming of injectors

Electronic configuration of the EGR valve

9. Expert Mode

Diagnosis of advanced computers,

Configuration of comfort functions,

Change the language of the instrument panel,

physical measures (option with a probe - not supplied)

Direct access to all functions of diagnosis.

V2014.1 Multi Diag Access J2534 System Requirements:

*CPU: Pentium/Athlon 1.8 GHz or higher

*RAM: 256 MB of system memory

*Hard Drive: 10 GB of available space

*VCI (vehicle communication Interface)

*DVD-ROM

*No Internet, WIFI

*No Antivirus software

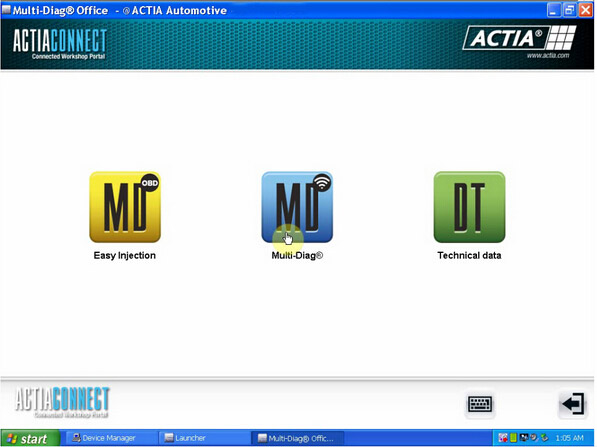

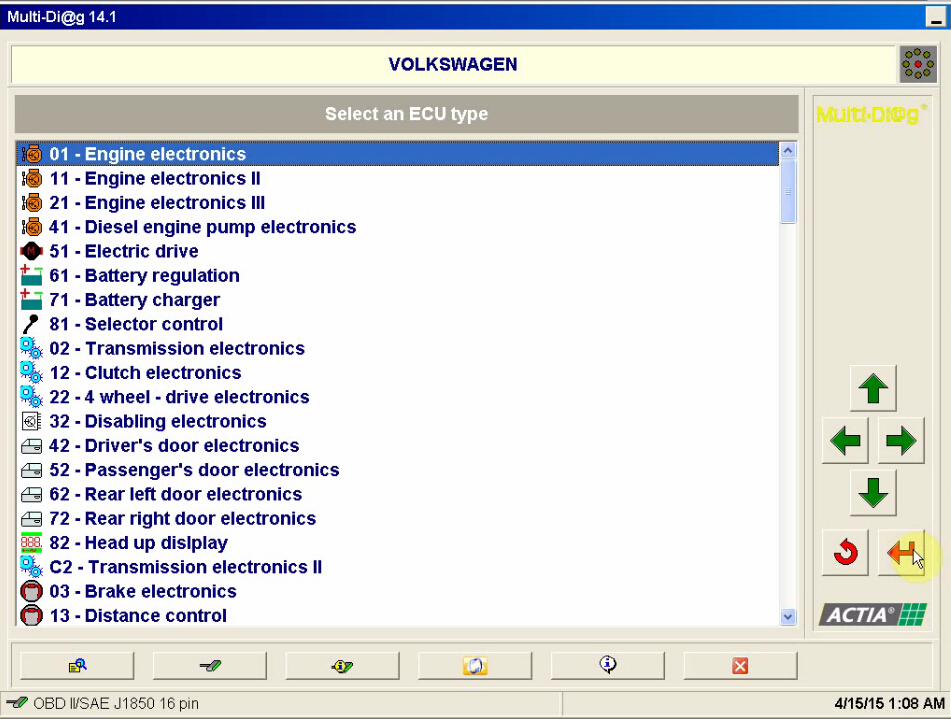

Multi-Diag J2534 Software Display:

Comparation Between Multi-diag J2534
Item Number	SP04-C	SP04-D	SP04-G	SP04
Item Name	Multi-Di@g Access J2534	V2013 Multi-Di@g Access J2534	2013-II Actia Multi-Di@g Access J2534	I-2014 Multi-Diag Access J2534
Software Version	V2011	V2013.01	V2013.02	V2014.01
VCI	093479	076957	076957	047509
Language	English, Spanish, German, French, Italian, Portuguese, Bulgarian, Croatian, Czech, Danish, Dutch, Finnish, Hebrew, Hungarian, Polish, Romanian, Russian, Serbian, Slovenian, Swedish, Turkish
Function	Maintenance, Air Conditioning, Pollution control, Liaison to the ground, Body, Post-Equipment, Braking,Motor, Expert Mode
Update	Can not Update	Can not Update	Can not Update	Can not Update
Operate System	Win XP	Win XP and Win7 32Bit	Win XP and Win7 32Bit	Win XP and Win7 32Bit
Vehicle Covered	More than 45 brands	26 car brands Models-3541 new system	19 car brands Models-190 new system	23 Brands, Update 5300 for new systems
1)The main difference between different version is on the coverage of the vehicle. More newer software version, most vehicles it covers. 2) V2014.01 Multi-diag and the V2013.02 Multi-diag will enter the VCI number automatically, but other versions must enter the VCI number manually.

Multi-Diag J2534 Packing List:

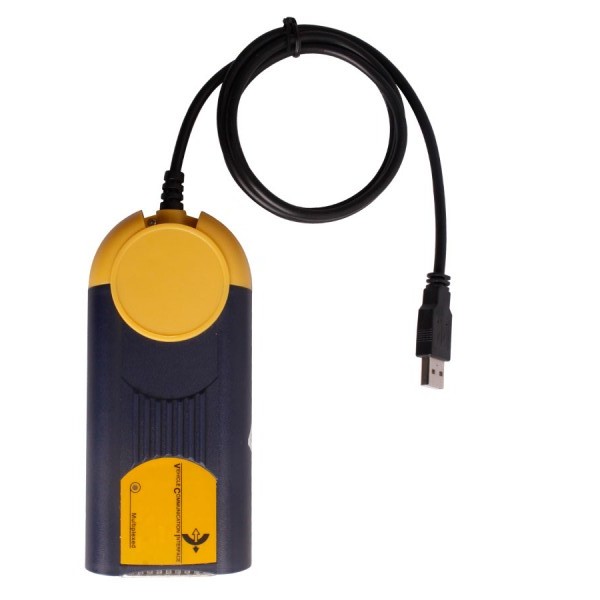

VCI (Vehicle Communication Interface)

DB25 to OBD-2 Male Cable

OBD2 Male to OBD2 Female Cable
