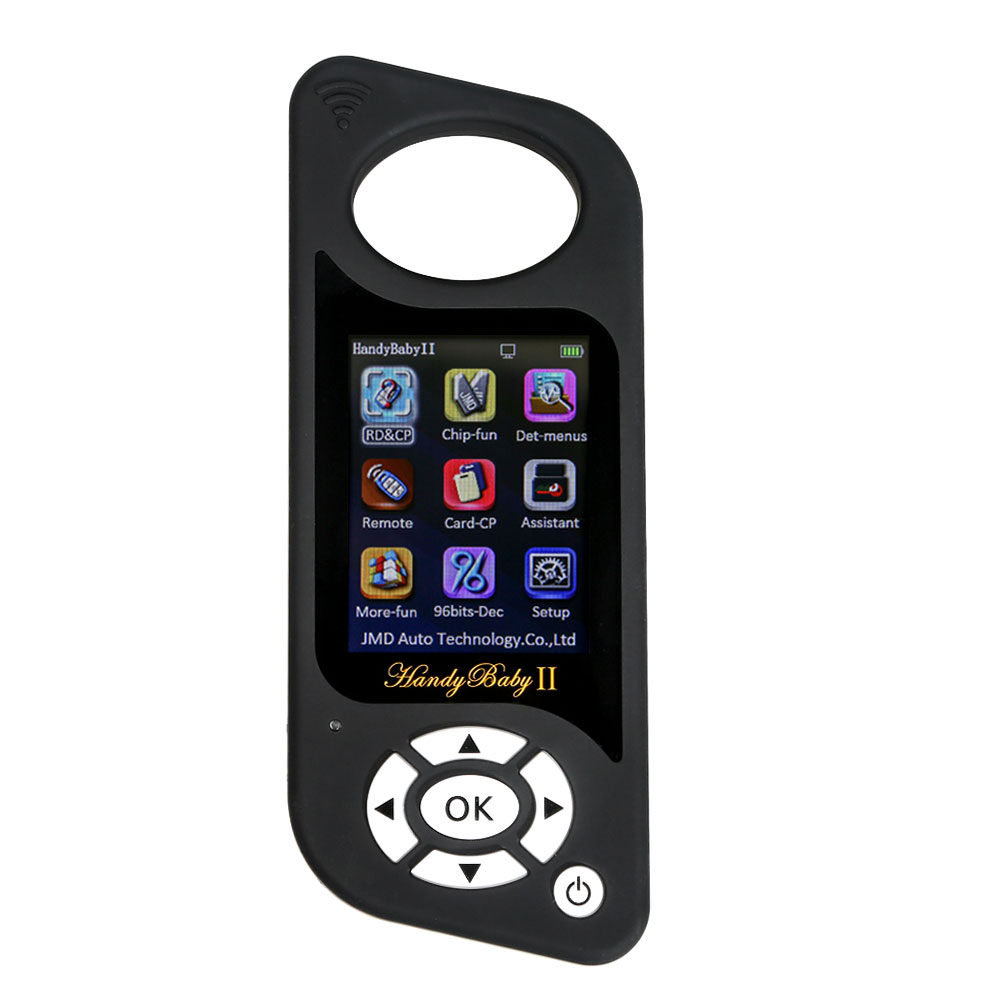

Handy Baby II Key Programmer

Note:
1. Language: English
2. This Device can't work together with CN1 or CN2 Chip, need to work with specially designed Handy Baby Super Chip(SA1859)
3. Update Free Online on Offcial Website

Handy Baby 2 Function List:

1.RD & CP: Identification chip /Edit Chip data / Deco chip / Copy chip
2.Chip-fun: Generate chip/Chip simulate/Chip transfer
3.Det-manu: Frequency test/ Data test/ signal detect
4.Remote: Remote renew/FIX CODE clone/Fixed code/JMD remote renew (JMD remote by JMD APP)
5.card-cp: Copy ID/IC card
6.Assistant: Copy Audi/VW 4th / Audi 5th/Audi ID8E/Assistant online(All key lost)/Assistant information
7.More-fun: Functional introduction/Simulate as transponder/ECO Mode
8.96bits-dec: Deco 96bits 48 and copy
9.Setup: Bluetooth/Voice/Volume/Brightness ersion/Function list/APP QR code
Handy Bay: Living for the locksmith, Saving for the locksmith

Handy Baby II Chip Generate Function:

Chip Type	Support Chip Generation
4D Type	ID4D66/67/68:Support JMD4D/K-Chip/S-Chip/Original 4D60
	ID4D70/72/82/83:Support JMDG/K-Chip/S-Chip
	Excelle ID4D70:Support K-Chip/S-Chip
	Other ID4D:Support JMD4D/K-Chip/S-Chip
46 Type	Blank ID46:Support JMD46/K-Chip/S-Chip
	Other ID46:Support JMD46/K-Chip/S-Chip/Original ID46
48 Type	ID48:Support OEM ID48/S-Chip
T5 Type	ID11/12/13:Support K-Chip/S-Chip/Original T5
	ID33:Support S-Chip
47 Type	Honda ID47:Support S-Chip/PCF 7938
	Blank ID47:Support S-Chip
7935 Type	Support Original 7935
8C Type	Mazda/Proton:Support original blank TK5561A

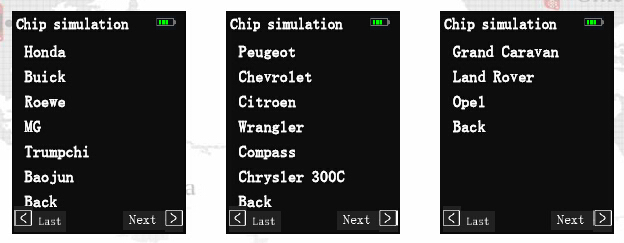

Handy Baby II Chip Function Simulate:
1.Definition:Through the simulation function,the palm in the treasure II is simulated into a chip,which is equivalent to the use of the chip
2.Type:

3.New Function:Custom Simulation
3.1 Definition: Free modify data,simulate

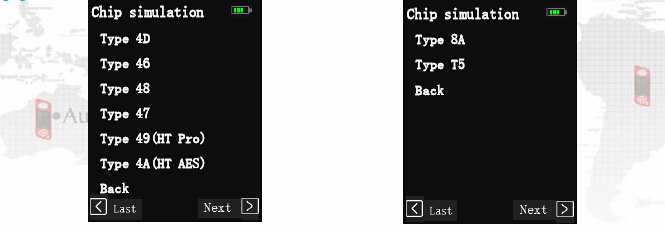

3.2 Support chip type:4D/46/48/47/49 Pro/4A AES/8A/T5

Handy Baby 2 Chip Function Chip Transfer:
1.Chip transfer definition:Chip transfer is a method of replacing the 63/63+ chip with a 60/60+ chip.
2.Support model
2.1 Mazda 4D63
2.2 Ford 4D63/4D83,usually used in the US Ford:Edge/Raptor/Explorer
2.3 Transfer support all key lost

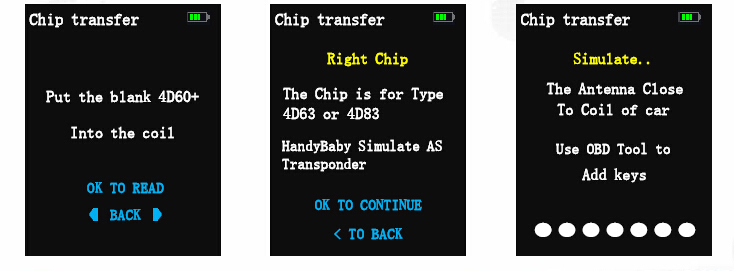

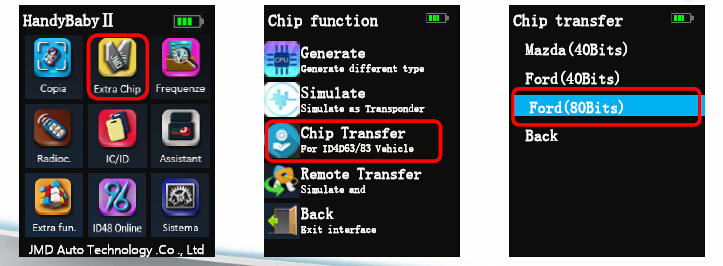

3.Operating procedures (Ford Focus 4D83)
3.1 Chip Function>Chip transfer>Ford (80 Bits)
3.2 K-Chip/S-Chip/ID4D60+ chip is placed in the identification antenna,OK TO Read>OK TO Continue>Simulate



Handy Baby II Chip Function Remote Transfer
1.Through the chip simulation & to the OBD program.After the OBD program successfully,generated remote.It have start car and remote function
2.Support Generate remote:JMD Remote
3.Support Remote Type:

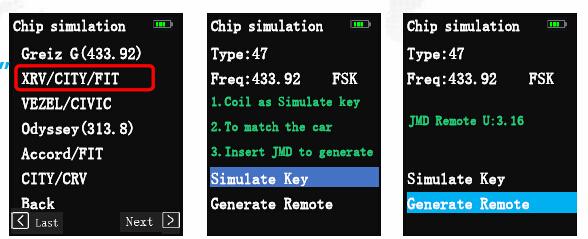

4.Operating (Honda)
4.1 Choose "Chip fun" > "Remote Transfer"
4.2 Choose "Honda">"XRV/CITY/FIT"
4.3 Simulate Key and to OBD program
4.4 After OBD program.Choose "Remote"

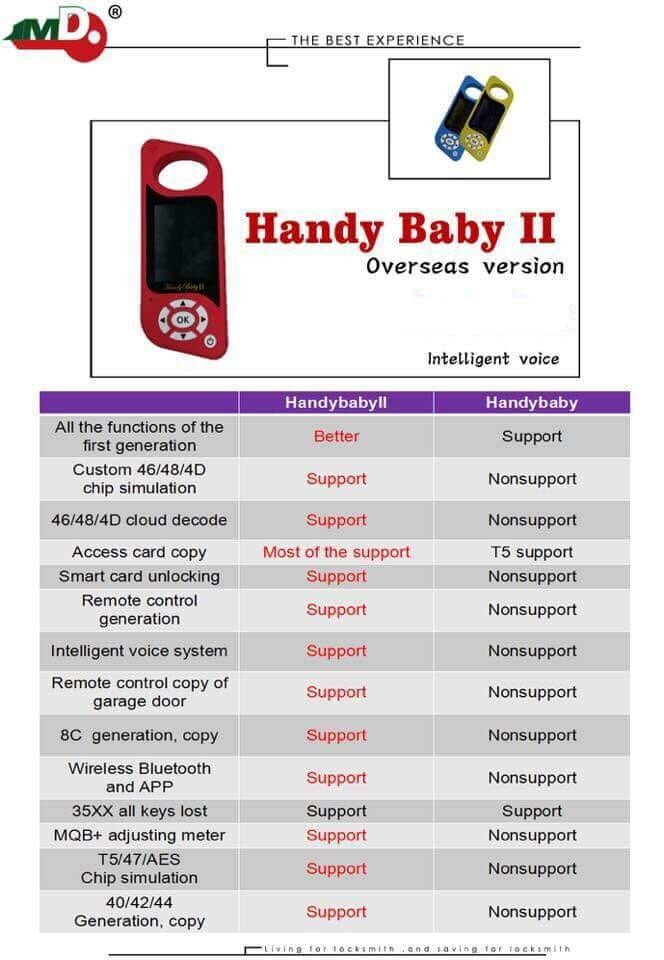

Different Between Handy Baby 2 and Handy Baby:



Key Copy Programmer Recognize and Copy:

Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68锕?71. Able to tell if 48 chip is from original or deputy factory.
Copy: Copy 46, 4D and a partial of original 48 I.E Buick Excelle, you have to use special GMT46/4D Chips, ID48 chips which can change ID.

Operation steps:

Turn on: long press the "On" button.
Turn off: long press the "On / off" button or "On / off" and "OK" button
Steps to operate: follow the tips on the screen, put the original key into the coil, press "OK" to recognize.

Take chip 46, 4D and 48 for example.

Steps to copy 46:

1. Press "OK" to decode
2. Make antenna close to coil
3. Insert and turn the key (collection)
4. Put original key into coil to decode
5. Put new key into coil to copy

Steps to copy 4D:

Press "OK" to decode, then put new key into coil to copy.

Steps to copy 48:

Press "OK" to decode, then put new key into coil to copy.

Handy Baby Key Copy Programmer Initialize:

Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored after the chip erased.
Enter program, select the chip type, press "OK" to restore to factory settings.

Handy Baby Key Copy Programmer Test Frequency:

Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile press remote button, then the frequency will display.

Handy Baby Key Copy Programmer Data read and write:

1) Read and write 46 chip

1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip mode and password is 46 chip blank.
2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode.
3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password.
4. After finish press "OK"to exit, then move cursor to "Read all" to read out data.
5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
6. Write: write the corresponding data; make sure 46 unlocked before writing data.
7. Enter data: the way to enter data is as the same as to enter password.

2) Read and write 48 chip

1. Read: read out 48 chip UID, user 1 and user 2 data, and display 48 chip type as well as the status of locked or unlocked.
2. Write: write the corresponding area data; make sure 48 unlocked before writing data.
3. Enter data: move cursor to the data input box, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" button to exit, move cursor to "Write" to write data.
4. Unlock: if the chip is locked, then it needs to be unlocked before writing into data.
5. Steps: when the chip is read out locked, please enter PIN code which is the code of 48 chip, move cursor to "Unlock", press "OK" to unlock.

3) Read and write 4D chip

1. Read: read out 4D chip password, recognition and ID data, also display their status of unlocked or locked.
2. Enter data: move cursor to the data input box, press "OK" button to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" to exit, move cursor to "Write" to write data.
3. Write: write the corresponding area data; make sure 4D unlocked before writing data.
4. Lock: lock the corresponding area, note: it is unable to unlock after locked.
5. Car ignition check: enter the verification code, then it will return corresponding signature.

4. Other chips

Able to recognize chip 13銆?0/41/42/44/45銆?C/46/48銆?D61/62/63/67/68/68锕?71
Able to use T5575銆乪m4305 and the compatible cards to copy 13 chip.

5. Generate chip

Chip 67 and 68: need the unlocked 4D chip to generate.
Specialized 48 chip: able to generate chip for only Seattle TA, VW TA, Skoda TA, Audi TA, SEAT TP, VW TP, Skoda TP, Audi TP and Jetta


Package including:

1pc x Handy Baby host
3pcs x JMD Red Chip
2pcs x JMD Remote
1pc x Charging Cable Within 5V2A
1pc x Smart Card Unlock Line
1pc x Remote Control burning line Generate remote
