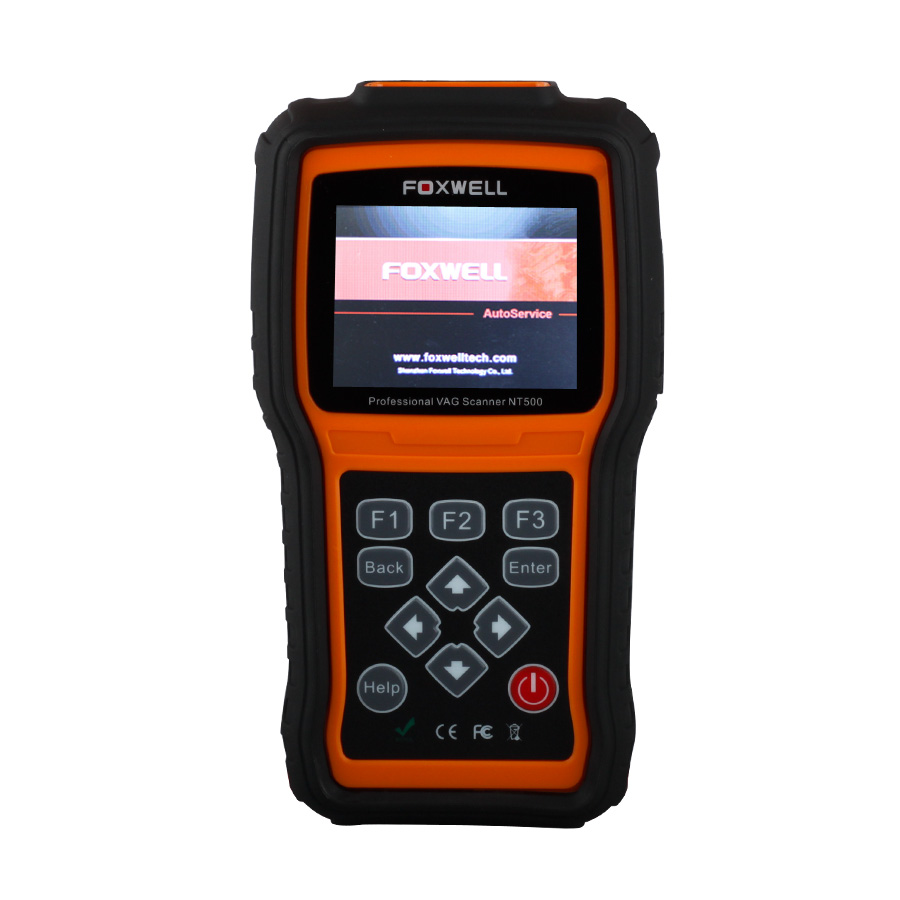

Delicately developed by the most distinguished experts of this industry, the NT500 VAG scanner is the most powerful tool for VW/AUDI vehicles on the road today. It stands out in a variety of similar products by delivering OE-level diagnosis on all available control modules.

Compatible with VW/Audi/Seat/Skoda sold worldwide from 1996

Compatible with the latest UDS protocol

Compatible with global OBDII/EOBD cars, SUVs, minivans,light-duty trucks

Works on almost all systems, including engine, airbag, ABS, A/T, instrument cluster and so much more

Reads and clear codes and turns off MILs

Requests and records live sensor data

Provides live data graphing

Merges graphs for easy and intuitive diagnosis

Displays freeze frame data

Performs active tests on vehicle systems and components

Performs special functions such as coding, security access, advanced datastream and so much more

Retrieves ECU information

Supports all 10 OBDII test modes, such as live data, O2 sensor test, component test and more

Resets oil service light

Sets inspection 1, 2 service interval

Sets (non) long life oil service

Sets inspection mileage

Deactivates and re-activates brake control system

Retracts calipers for brake pad replacement

Advances calipers after servicing to the original position without affecting the current calibration

Initializes the wear indicator if new pads installed

Diagnoses EPB caliper functionality

Resets the brake pad thickness after AUDI A8 service

Code troubleshooters provide you faster and easier diagnosis

Multilingual menu options and code definitions

SD memory card for data backup and software update

As easy as 1-2-3 with large TFT color screen and menu-driven operations

Ergonomic design and ruggedly built for both shop and road tests

Notice:It is free update for 18 months,but you need pay 60 usd one year if you want to update after 18 months.

Display: Backlit, 240*320 TFT color display

Working Temperature: 0 to 60鈩?(32 to 140鈩?

Storage Temperature: -20 to 70鈩?(-4 to 158鈩?

External Power: 8-18 Volts powered by vehicle battery

1 pc x NT500 VAG Scan Tool

1 pc x User’s Guide

1 pc x Memory Card

1 pc x USB Cable

1 pc x Diagnostic Cable

1 pc x Nylon Carry Pouch
