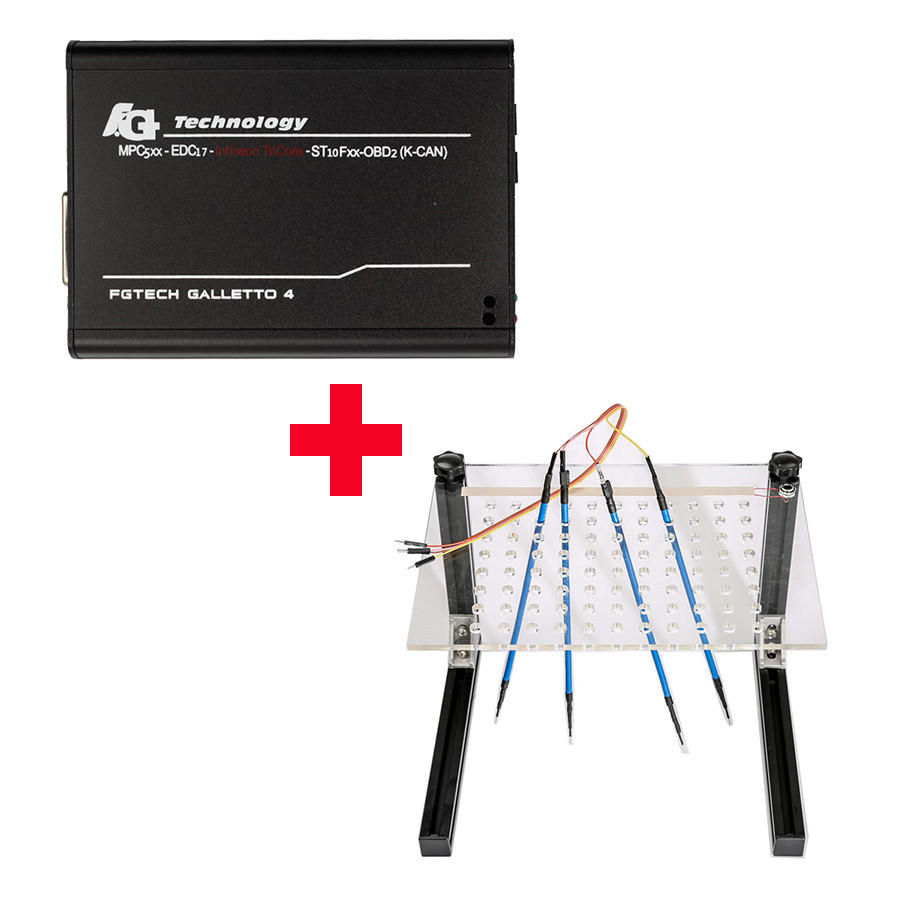

Hot Sale V54 FGTech Galletto 4 Master Plus LED BDM Frame with 4 Probes Mesh

Top 6 Reasons To Get FGTech Galletto 4

1. Latest Version: 2014 V54
2. Supported Operating System: windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB Board
5. Supported Language: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function

Notice: There is No Power Supply in the Package

FG Tech Galletto 4 Maste Description:

FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , checksum.

Boot Mode System:

NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu

Automatic Checksum:

All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,

FGTech Galletto 4 Master Version:

Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time


LED BDM Frame Description:

1. It consists of a Acrylic board, Mesh and 4 Probe Pens.
2. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.
3. It is the best bracket for ECU Update/ECU Brush and Write/ECM Modified and programming/Probe holder/Dimsport aids.
4. It works with KESS, KTAG, FGTECH, BDM100, KTM100, CMD, DIMSPORT AIDS, and othe ECU chip tuning tools.
5. It is easy to use, much better than the old bdm frame.

Note: No PCB Board in the Package! LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.

Package List:

1pc x New Version Main Interface
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables
3pcs x BDM Adapters
6pcs x BDM Connectors
2pcs x Power Cable
1pc x OBD2 Cable
1pc x USB Cable (1.5meter)
1pc x CD (2012 Version SW -MASTER, Documents PDF, Pictures, etc.)
1pc x Bdm frame with LED (Made by a Acrylic board)
4pc x Cable for Probe
4pc x Probe
