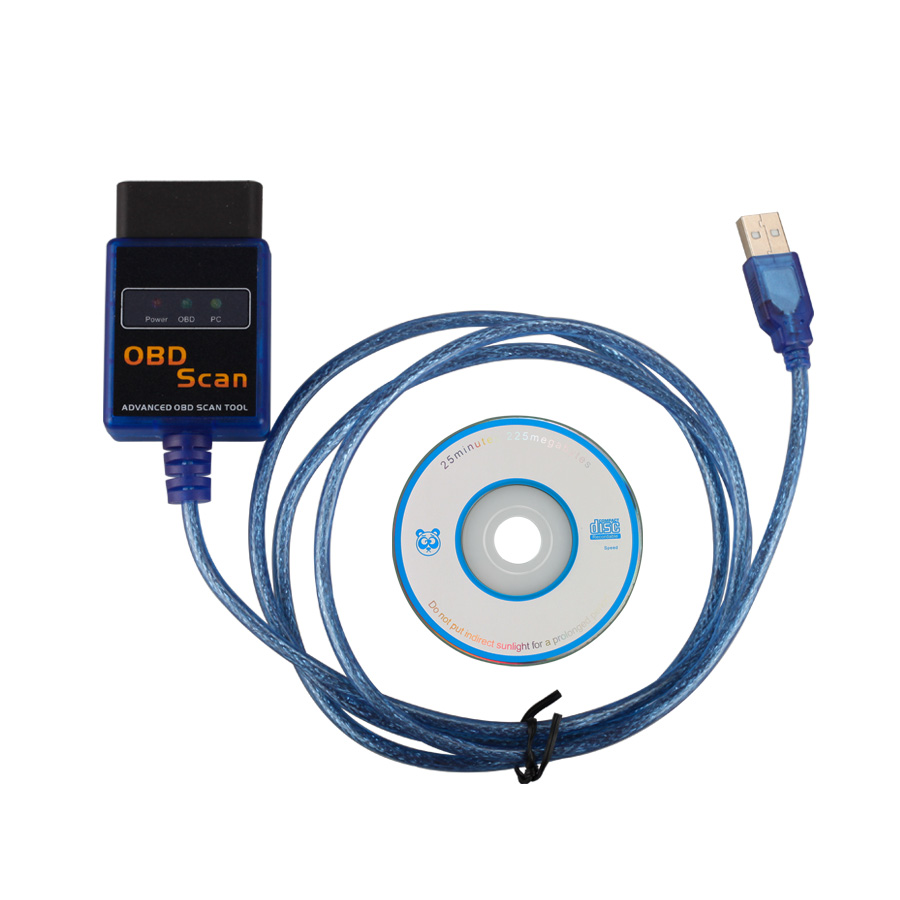

ELM327 Scanner can translate all the hard work of protocol into a simple ASCII character based view.Via the included serial cable, ELM327 V1.5 is used as an interface to connect virtually all OBD-II compliant vehicles to a PC for on-board diagnostics (OBD). Such vehicles are VW, Audi, Seat, Skoda, Opel, Vauxhall, Alfa, Mercedes, Smart, Renault, BMW, Peugeot, Citroen, Lotus, Ford, Rover, Aston Martin, Ferrari, etc.

1. Supports protocols - ISO 9141-2 and ISO 14230-4 as well as CAN Bus ISO 15765-4.

2. Internal EEPROM can remember the last protocol.

3. Precision-moulded diagnostic connector made to fit all VW/Audi vehicles, even those with "tight" trim around diagnostic socket.

4. ELM327 with USB port, software install easily.

5. Voltage input monitors your vehicle's battery.

ELM327 Based - Datasheet

OBDII Plug: J1962 16-Pin Male (to Car)

USB Port : (to Computer or PDA)

High quality UL certified USB Cable (equivalent to CE).

CAN (ISO 15765-4)

ISO 14230-4

Automatically searches for the correct protocol or can be configured manually.

USB Port

Serial Interface uses AT commands to look like a modem.

Status LED

Length with USB Lead : 1.5 metres

RS232 baud rates to 500 Kbps

Adaptive Timing automatically adjusts ST timeouts

Power up to AT MA is selectable

Source (tester) address can be changed

Can reset all PPs with a jumper

Receive addresses can be independently set

Power Control with a low power standby mode

A 4800 baud ISO option

A non-volatile memory location for storing user data

CAN extended addressing support

You can now perform ISO/KWP bus initializations without having to send a request

An SS command allows searching through the OBD protocols sequentially

A new TA command allows the Tester Address to be easily changed

Factory calibration for the voltage reading circuit can be easily restored

The slow initiation address can now be varied

Control over key word checking

KWP protocols can now transmit 3 or 4 byte headers

New J1939 protocol

Two user-definable CAN protocols

Improved error handling and recovery

Extended addressing support

1. Turn the car's ignition switch ON. No need to start the engine.

2. Start the software program, click "Options", select the correct communications port.

3. Your interface now works! Make sure the software can reliably access all the control modules that it should in your car.

1pc x ELM327 Interface

1pc x CD Driver
