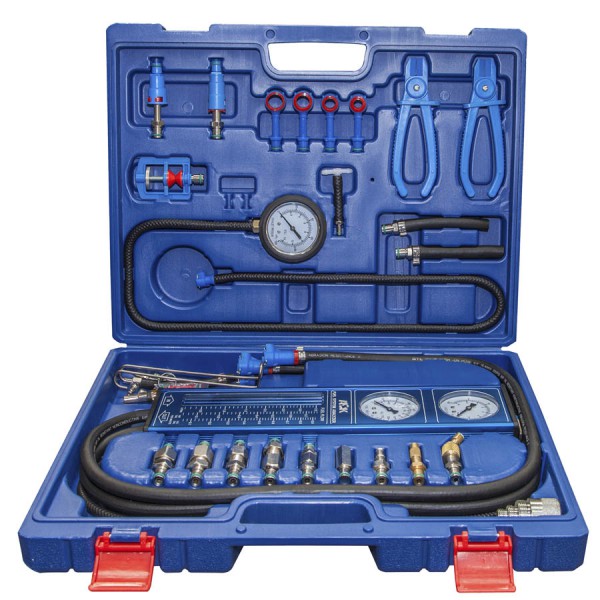

EFI2100 Engine Fuel System Analyzer are designed to ensure that engines operate at the ideal air/fuel ratio to maximize engine performance and longetivity whilst minimizing fuel consumption and exhaust emissions.To achieve this, accurate control over both fuel pressure and flow rates are essential and should be verified at each service interval.

The Fuel System Analyser quickly and accurately tests the entire fuel delivery system identifying unacceptable fuel pressures, inadequate fuel flow, fuel aeration, incorrect manifold vacuum and internal leakages.

1. No need road testing, the systematic function is very clear

2. The particular quick connector is easy to use and have high-sealing performance

3. The quick connector uses oil-resistant, high-strength polymer materials, with insulation, will neither cause a short circuit, nor scratch the car paint surface.

4. The quick connector is with high sealing performance, which can ensure the accuracy of the test.

5. The test on the fuel flow, fuel pressure, exhaust back pressure, intake manifold vacuum degree and some others can check out the failure of the electronic fuel injection system quickly and accurately.

1. Fuel pressure test

2. Fuel flow test

3. Engine intake manifold vacuum test

4. Back pressure in exhaust

Simultaneously with the engine running.Various connectors, fit for most common cars.

Blocked Exhausts

Blocked Fuel Filters

Leaking Fuel Injectors

Water Contaminated Fuel

Faulty High Volume Pumps

Faulty Low Volume Pumps

Leaking Non-Return Valves

Restricted Pre-Pump Strainers

Faulty Fuel Pressure Regulators

Aerated and/or Vapor Locked Fuel
Test & Prove All of the AboveWith One Tool!

Range of fuel pressure test:0~800Kpa

Range of fuel flow test:0.5~3L/min

Range of vacuum test:-100~0Kpa

Shell material:Aluminium
