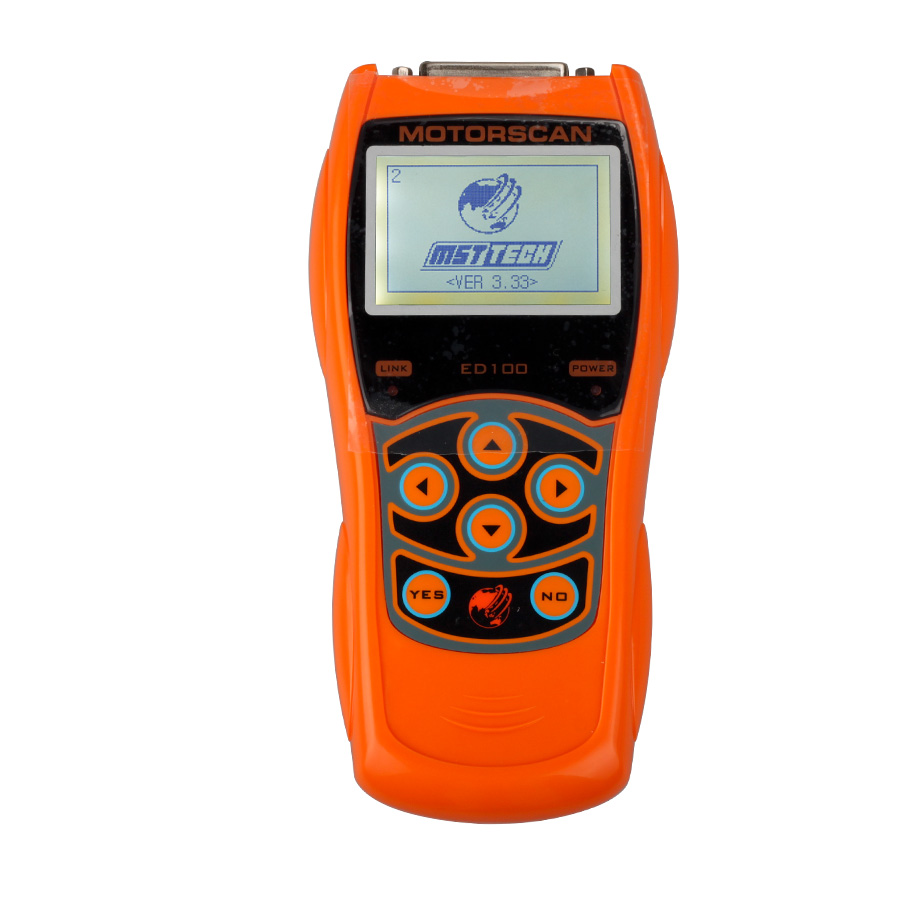

ED100 Motorcycle Scan Tool 6 in 1 Handheld Motor Diagnostic Tool

Top 11 Reasons to Get ED100 Motorcycle Scan Tool

1. Language: English
2. No Need To Connect With Computer
3.Supported Car List: This scanner can diagnose SYM, KYMCO, YAMAHA, PGO, SUZUKI, and Hartford.(mostly for low CC, like 125)
4. Small size, light weight and easy-taken,easy operation and quickly reaction
5. provide diagnostic functions to multi-brands motors
6. Can provide detailed and complete diagnostics functions and maintenance description.
7. Reliable quality.
8. Large LCD display with high resolution and clear fonts, easy to read.
9. Stronger and more durable than most equipment on the market
10. all the accessories can be replaced with high quality.
11. with CANBUS chips inside, no need for any additional interface, you can meet the needs of future development

Notice: This ED100 cannot be updated

Function

1. System Information
2. Data stream
3. Read DTCs
4. Clear DTCs
5. Freeze data
6. CO Idle speed adjustment

Multiplexer Parameters

Power: DC 10-15V
Working Current: 250mA
Screen: 160×105 LCD display
Keyboard: 6 membrane keyboard
Storage Temperature: -10°C-85°C
Operating temperature:0-70°C
Humidity: <90%

Upgrade port: USB Port
Communication port: COM port
Ports: diagnostic port, COM port, USB port, Power port.

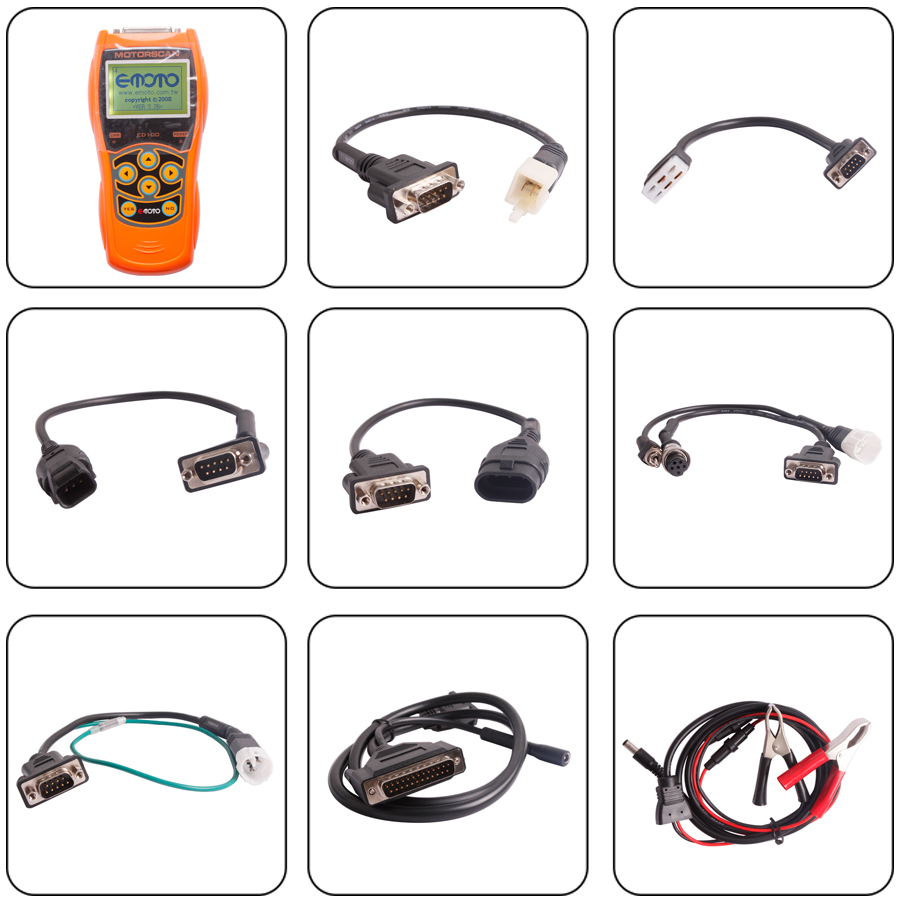

Accessories Display:



FAQ:

Q:Is it capable of erasing immobliser faults and fuel mapping?
A:It can support to erase fault in engine,for other system,we are not sure as we did not test.

Tags: ed100 motorcycle scan tool , motorcycle scan tool , motor diagnostic tool , handheld diagnostic tool ,
