The DA-VINA 2534 is a high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; it then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, ISO and SCP (J1850) protocols.

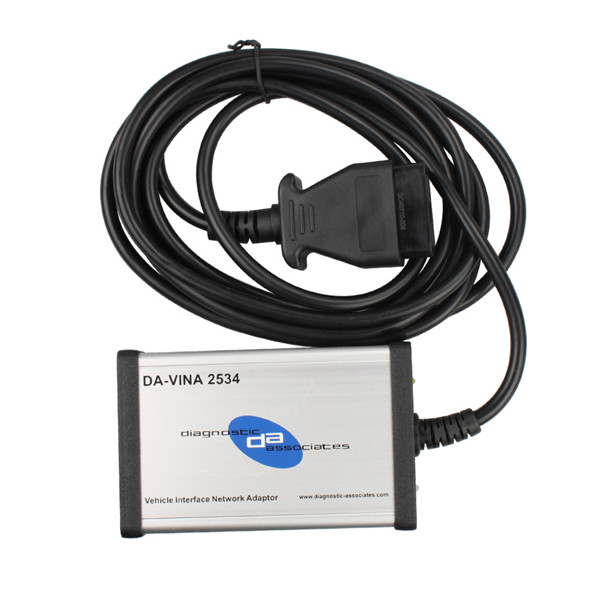

DA-VINA 2534 Jaguar LandRover Approved SAE J2534 Pass-Thru Interface

Top 5 Reason To Get DA-VINA 2534

1. Language: English,German,Russian,French,Dutch,Portuguese,Japanese, Spanish, Italian,Chinese you can choose when installation
2. This DA-VINA 2534 can support car year after 2005
3. JLR Version: V145
4.Replacement for JLR SDD VCM
5.Best Suited for Legacy, Current and Future Vehicles

1.We don't offer software or Only cracked version of 137.02 version software.
Can't update online ,if update ,will locked the machine .if want update the software ,pls contact us

2.Computer requirement: 4 nuclear WIN7 or XP 32-bit systems, More than 20GB of Hard Disk partition C.

1. JLR Approved device

2. Most cost effective Jaguar pass-thru VCI device

3. Covers CAN, ISO9141, SCP Vehicle Networks

4. 12ft USB Cable as standard included

5. Easy to update for J2534 new functionality updates

The DA-VINA 2534 connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

The DA-VINA is simple and easy to use.

1. Download the latest J2534 DLL software files from the Diagnostic Associates web site http://www.diagnostic-associates.com/download.htm and install these on the SDD Laptop.

2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).

3. Connect the 12ft USB cable to the DA-VINA and the other end to the SDD Laptop.

4. The (PWR) LED will turn solid red to show the DA-Dongle is powered.

5. During communication with the vehicle the Status (STS) LED will flash green.

1pc x DA-VINA 2534
