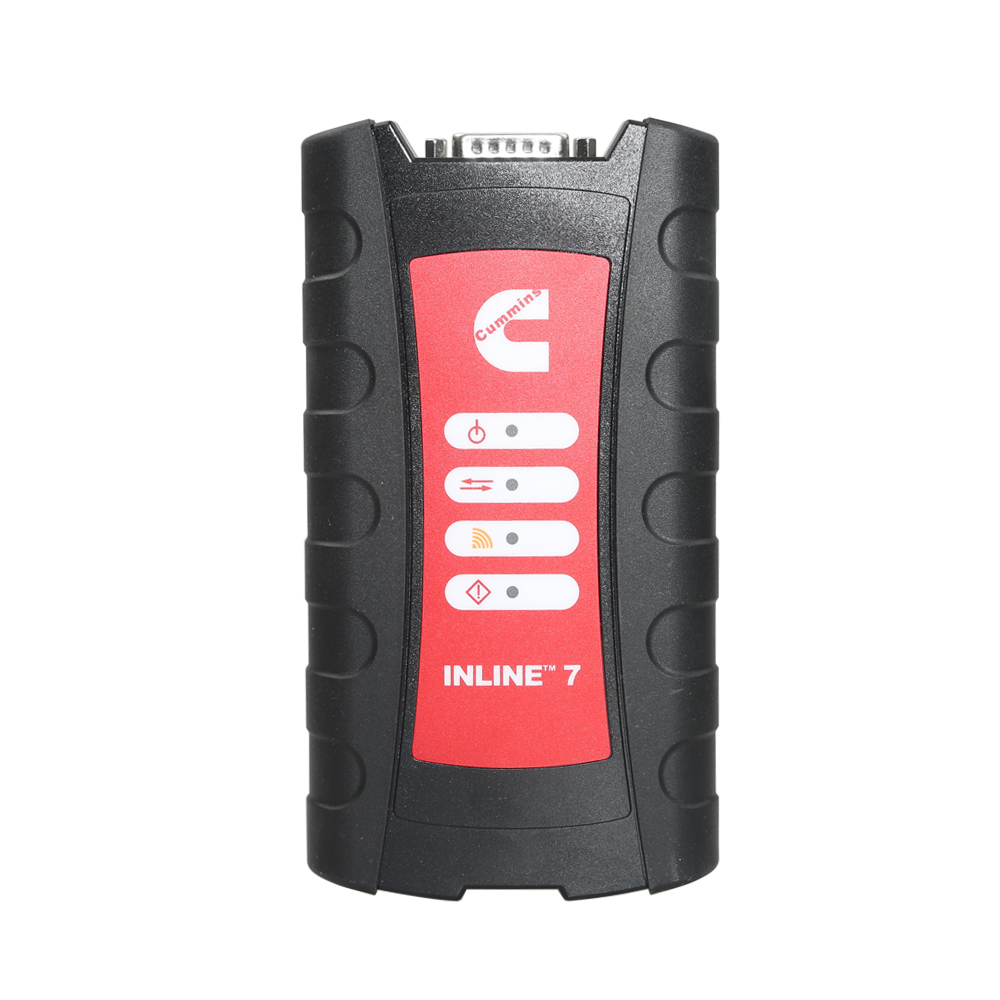

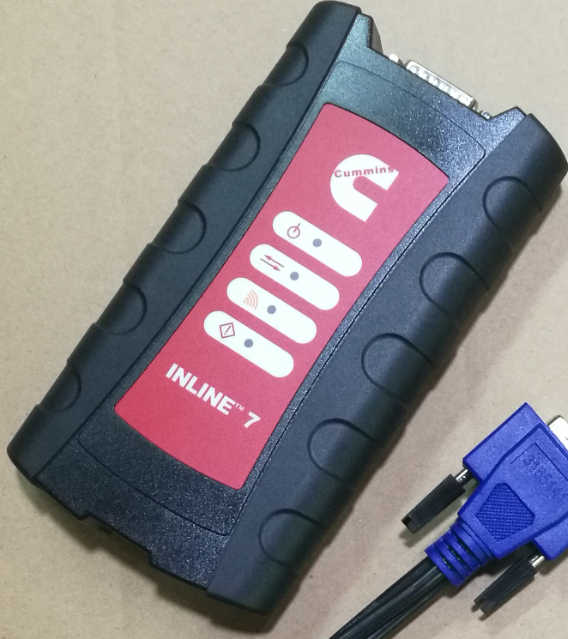

Cummins INLINE 7 Data Link Adapter with Insite 8.3 Multi-language Truck Diagnostic Tool

Cummins new INLINE 7 Data Link Adapter has a faster processor, more robust algorithms, larger memory buffers and more sophisticated filtering than previous models while simultaneously accessing multiple vehicle data channels. INLINE 7 supports USB, WiFi and Bluetooth technologies in a single device. INLINE 7 communicates with your PC and is designed for future capability with mobile products.

The Cummins INLINE 7 Data Link Adapter is designed to function with a wide array of Cummins, OEM and third-party service and information tools, including the following:

Cummins INSITE
Cummins PowerSpec
Detroit Diesel Diagnostic Link
CAT Electronic Technician (On-Highway only)
Navistar® -ServiceMaxx Fleet Pro
Volvo PTT
VCAD Elite Mack/Volvo
V-Mac Service Tools
Allison DOC® For PC Service Tool
Allison DOC® for Fleets (1000/2000/3000/4000)
Eaton ServiceRanger
Bendix ACom
WABCO Toolbox
Freightliner ServiceLink
International DLB, Intune, and IPC v2.02
International ServiceMaxx
PF-Diagnosis
and many more!

The Cummins INLINE 7 data link adapter communicates with your PC using a Universal Serial Bus (USB) through a standard USB connector as well as through WiFi or Bluetooth. INLINE 7 is fully compliant with the Technology and Maintenance Council’s RP1210 standard and supports three simultaneous CAN connections and offers baud rates of 250k, 500k and 1 megabaud. INLINE 7 supports several other protocols such as J1708, J1587, ISO 15765, ISO 9141 (K and L line).

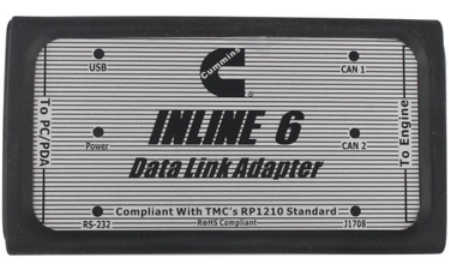

Cummins Inline 6 VS Cummins Inline 7

Cummins Inline 6 insite 7.6 VS Inline 7 insite 8.3 in software and hardware
	CUMMINS INLINE6	CUMMINS INLINE7
Software	1.Comes with Insite 7.6 software (2013) 2. Pay to use Insite 8.2 8.3 3. Only works with Win7 4. When install insite, you need to change the computer time which is not easy to do.	1. Comes with Insite 8.3 software (2013) 2. The software is authorized for free, what the user to do is enter the serial number. 3. Works with WIN7 WIN10. 4. No need change the computer time, easy to install.
Hardware
	1. Inline 6 warranty: 1 year 2. The iron shell is heavier and not easy to take.	1. Inline 7 warranty: 3 years. 2. Comes with double-layer plastic which is anti-stress and stable, it can protect the circuit board well. The outer layer is soft and comfortable to the touch..

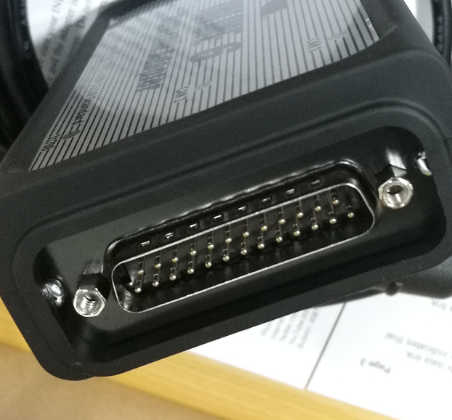

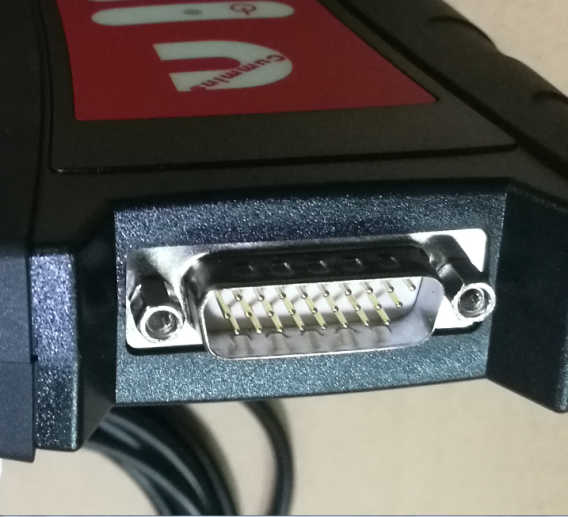

	For a long-time use, the two rows of hollow pins are easily poor to contact, broke or bent.	The three rows of solid pins are durable, its warranty is 3 years.

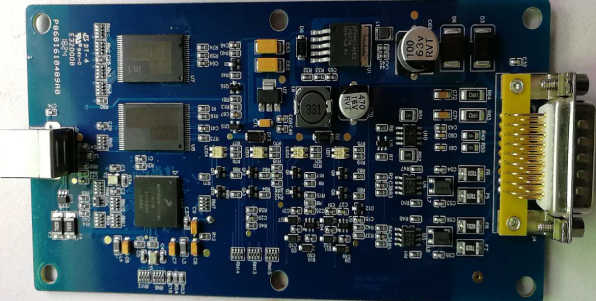

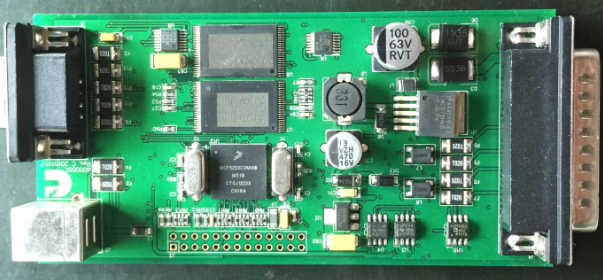

	Circuit Board.	The circuit board design is more tidy, the PCB line impedance is adjusted and optimized, the product life is improved, and the stability of the equipment is ensured. The maximum warranty is three years.

Cummins INLINE 7 Package List:

1pc x 5299899 Cummins INLINE 7 Data Link Adapter
1pc x 4919781 DB26Pln-OBDll Cable
1pc x 60000467 USB Cable
1pc x 3165141 DB26/2Pin/3Pin Cable
1pc x 4919780 DB26/9Pin Data Link Cable
1pc x 3163096 3Pin Connector
1pc x 3163597 3Pin Connector
1pc x 2892095 Software Compact U disk
