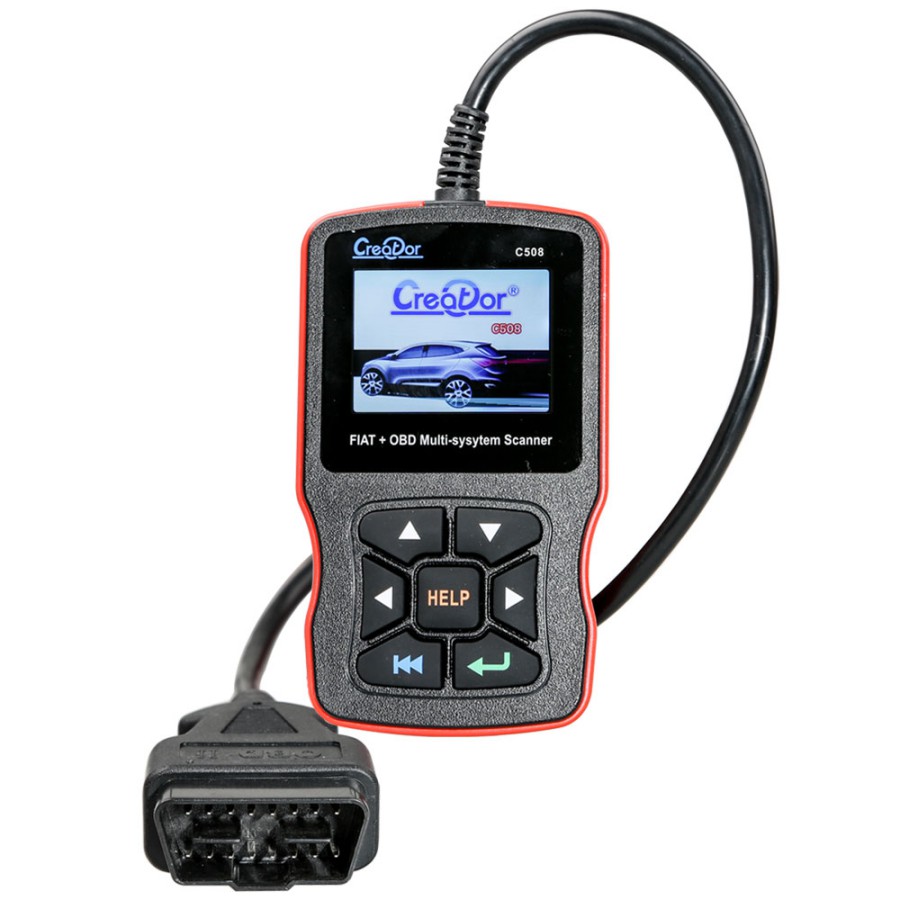

Creator C508 FIAT OBDII/EOBD Multi-System Scanner

Top 5 Reasons to get Creator C508:

1. Multi-system scan for FIAT / ALFA / ABARTH / LANCIA enable you to read and clear
diagnostic diagnoses of your vehicle's main systems such as ORC airbags / belts, ABS
anti-lock brakes, engine and transmission modules
2. Software support upgrade online, lifetime for free.
3. Easy to use by simply plug it into the vehicle OBDII port and device will boot in
accordance with the step-to-step instructions.
4. Large 2.8inch color display LCD screen, user-friendly interface.
5. Full OBDII Function allows you to scan engine readings and associated trouble
codes (check engine indicator) on any model / model.

Creator C508 Functions Include:

Read Trouble Codes, Clear Trouble Codes,Ecu Information, Live data and graph display
The year between 2007 to 2016

Creator C508 Supports models:

FQ-Fiorino Qubo
MT-Mito
PE-Punto EVO
GU-Giulietta
JF-Freemont
NY-Ypsilon
CL-500L
CM-Viaggio
FF-500
JS-Flavia
NP-Panda
QC-4C
CC-Cinquecento
DB-Doblo
BF-Fiat 500L
DC-Ducato
OT-Ottimo
FB-500X
GA-Giulia

Creator C508 System coverage:

PCM -- Powertrain Control Module
ECM -- Engine Control Module
TCM -- Transmission Control Module
XCM -- Transfer Case Module
SLA -- Shift Lever Sensor Assembly
ESM -- Electronic Shifter
FDCM -- Final Drive Control/All Wheel Drive
ACC -- Adaptive Cruise Control
CGW -- Central Gateway
ORC -- AirBag/Occupant Restraint
MIC/CCN -- Mechanical Instrument Cluster
HVAC -- Heat, Ventilation and A/C
FCM -- FCM/IPM
PLGM -- Power Liftgate Module
APM -- Adjustable Pedal Module
ATC -- Automatic Temp Control
MTC -- Manual Temp Control
CHM -- Cabin Heater Module
BCH -- Booster Cabin Heater Module (ZHZ)
ACH -- Auxiliary Cabin Heater (STH)
MSM -- Memory Seat/Memory Heated Seat
OCM -- Occupant Classification
SCM -- Steering Column
RSA -- Right Side Airbag
LSA -- Left Side Airbag
BCM -- Body Controller
ASBS -- Automatic Sway Bar System
FSM -- Fold Stow Module
WCM/TPMS -- Wireless Control
PSM -- Universal/Special ECU
TM -- Trailer
SUNR -- Sunroof
PTIM -- Police/Taxi Interface Module
HIDT -- High Intensity Discharge Translator
AHLM -- Headlamp Leveling
AHBM -- Automatic High Beam
RCM -- Roof Control Module
AEHM -- Auxiliary Electrical Heating Module
PTS -- Parktronics
EOM -- Electronic Overhead
ITM -- Intrusion Transceiver Module
PTCM -- Power Top Control Module
IPM -- Integrated Power Module
SRM -- Airbag On/Off Switch
TRV -- Traveller
SKM -- SKIM/SKREEM/TPM
VTS -- Vehicle Theft Security
CMT/VIC -- Overhead Console
PAM -- Park Assist Module
RSM -- Rain Sensor Module
TPM -- Tire Pressure Monitor
SAS -- Steering Angle Sensor
ABS -- Anti Lock Brakes
ESP -- Electronic Stability Program
SBM -- Center Console / Switch Bank Module
AUD -- Audio Systems(Radio,CD,DVD,Nav)
CDC -- CD Changer
DVD -- DVD Changer
RADIO -- Radio
SDARV -- Satellite Video Receiver
SDAR -- Satellite Radio
DAA -- Digital Audio Amplifier
AMP -- Amplifier
SAR -- Satellite Audio Receiver
NAV -- Navigation System
HFM -- Hands Free Module
VES -- Vehicle Entertainment System
VES2 -- Second Row Screen
VES3 -- Last Row Screen
DISP -- Front Display
DMFR -- Door Module Front Right
DMFL -- Door Module Front Left
DMRL -- Rear Door Module (Left)
DMRR -- Rear Door Module (Right)
PSDMR -- Power Sliding Doors (Right)
PSDML -- Power Sliding Doors (Left)
DDM -- Driver Door Module
PDM -- Passenger Door Module
MUX -- Door Mux
IC -- Instrument Cluster
CLP
HSM -- Heated Seat Module
ECM -- Engine Control Module
BPCM -- Battery Pack Control Module
BSM -- Blind Spot Module
DTCM -- Drive Train Control Module
EAC -- Electric A/C Compressor
EBG -- Electronic Booster Gauge
EPS -- Electric Power Steering
HCP -- Hybrid Control Processor
HGM -- Hybrid Gateway Module
ITBM -- Integrated Trailer Brake Module
MCPA -- Motor Control Processor A
MCPB -- Motor Control Processor B
PEM -- Passive Entry Module
ADCM -- Active Damping Control Module
AFLS -- Adaptive Front Lighting System
ASCM -- Air Suspension Control Module
BTM -- Battery Thermal Module
DCU -- Dosing Control Unit
DRM -- Data Recorder Module
ELSD -- Electronic Limited Slip Differential
EPPM -- Electronic Pedestrian Protection Module
ICS -- Integrated Center Stack
IPC -- Instrument Panel Cluster
OBCM -- On Board Charging Module
PHGM -- Plug In Hybrid Gateway Module
RFH -- Radio Frequency Hub
SCCM -- Steering Column Control Module
TGW -- Telematic Gateway Radio
VSIM -- Vehicle System Interface Module
AHM -- Additional Heater Module
CSWM -- Comfort Seat Wheel Module
CTM -- Convergence Telematic Module
EPB -- Electrical Parking Brake
ESL -- Electronic Steering Lock
ETM -- Entertainment Telematic Module
FFCM -- Forward Facing Camera Module
HVACR -- Heat, Ventilation and A/C Rear
LBSS -- Left Blind Spot Sensor
PTU -- Power Transfer Unit
RBSS -- Right Blind Spot Sensor
RDM -- Rear Drive Module
VGT -- Variable Geometry Turbo
VTM -- Vehicle Tracking Module
EDM -- External Disc Module
CMM -- Instrument Panel Cluster
DSTM -- On Board Charging Module
MSMD -- Plug In Hybrid Gateway Module
PSTM -- Radio Frequency Hub
RMN -- Steering Column Control Module
TBM -- Telematic Gateway Radio
TRM -- Vehicle System Interface Module
AAML -- Active Aerodynamic Module Left
AAMR -- Active Aerodynamic Module Right
CDCM -- Chassis Domain Control Module
CSWM -- Comfort Seat Wheel Module
DMM -- Door Management Module
ECM2 -- Engine Control Module 2
EMCM -- Entertainment Multimedia Control Module
FFCM -- Forward Facing Camera Module
HALF -- Haptical Lane Feedback
RRM -- Radio Receiver Module
TMM -- Track Mapping Module
TTM -- Trailer tow module
TVM -- Torque Vectoring Module

Creator C508 Specifications:

A) Display: Color, 320 x 240 pixel display with contrast adjustment
B) Operation Temperature: - 20 鈩?-- 75 鈩?br>C) Storage Temperature: -40 鈩? -- 120 鈩?br>D) Power: 8V -- 24V

Package includes:

1pc x Creator C508 FIAT Machine
1pc x User's Manual
