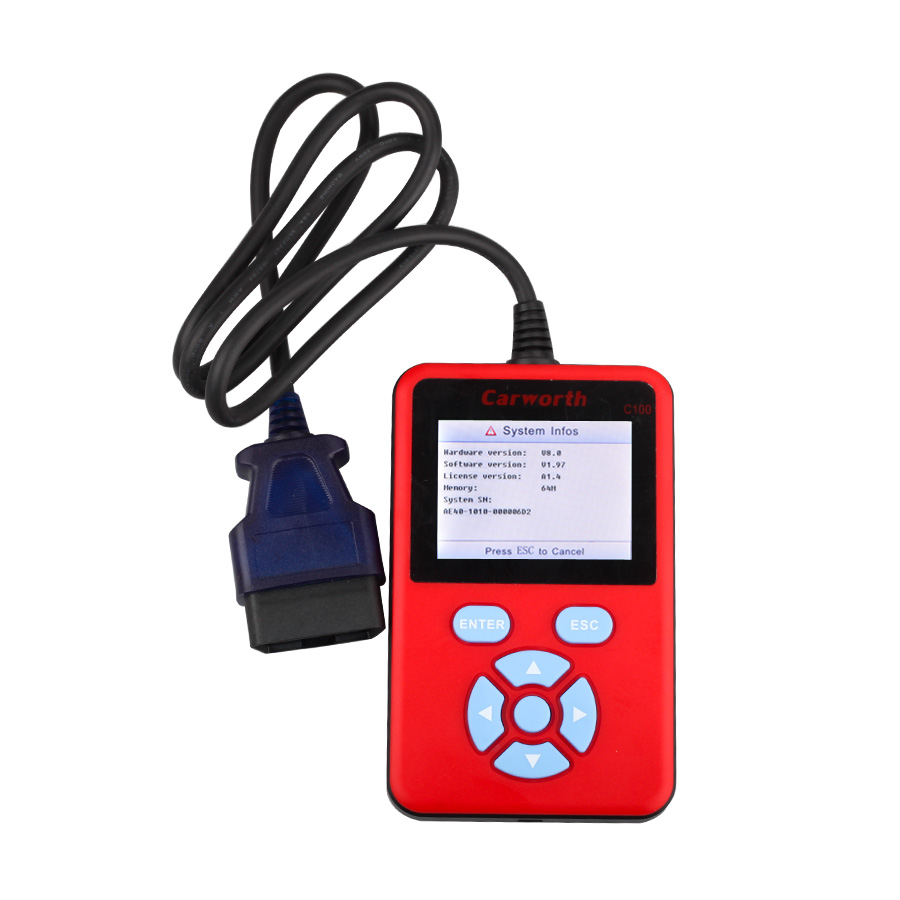

: Large Image :Carworth C100-A 12V/24V Gasoline/Diesel Universal OBDII Scanner Tools Support Trouble Shooting All Electrical Control Systems

Carworth C100-A 12V/24V Gasoline/Diesel Universal OBDII Scanner Tools Support Trouble Shooting All Electrical Control Systems

Carworth C100-A 12V/24V Gasoline/Diesel Universal OBDII Scanner supports both gasoline and diesel car and trucks,which is a Portable devices for vehicle maintenance technician and drivers.

Descriptions of Carworth C100-A 12V/24V Gasoline/Diesel Universal OBDII Scanner Tools Support Trouble Shooting All Electrical Control Systems

Carworth C100-A 12V/24V Gasoline/Diesel Universal OBDII Scanner Tools support both gasoline and diesel car and trucks. It is a testing tool for car compliance with OBD-II/EOBD ,which is a Portable devices for vehicle maintenance technician and drivers.
Language: English,Chinese

Carworth C100-A 12V/24V Gasoline/Diesel Universal OBDII Scanner Tools

Top 3 Reasons To Get C100-A

1.Support for all standard models of OBD-II interface

2.Support trouble shooting all electrical control systems.

3.By reading the trouble code feature, you can quickly and accurately obtain the reasons of electronic control system (ECU) fault lights reasons.

Language: English,Chinese

FOR Gasoline:

BMW, Benz, Land Rover, Volvo, Opel , SAAB, MG, Peugeot, Porsche, VW, Audi, Chrysler, Ford, GM, Citroen, Skoda, Renault, Fiat, Seat, Mitsubishi, Toyota, Nissan,Lexus, Honda, Subaru, Mazda, Hyundai, KIA, Daewoo, Ssangyong and More

FOR Heavy duty trucks (OR ECU):

International, Freightliner, Sterling, Western Star, Detroit, Daf, Erf, Kenworth, Man, Mitsubishi, Scania, Isuzu, Mark, Hino, Volvo, Benz, UD, Renault,and Foton, Faw, CNHTC, and all other Chinese Heavy duty trucks , Bus...

Bosch, Cummins, Caterpillar, Denso, Siemens, Motorola, Zexel, VITO, NanYue, Delphi, Wabco...

OBDII Scanner Tools Carworth C100-A 12V-24V Features and Benefits:

A key to the elimination of the electronic control system (ECU) temporary failure exists, fault light extinguished.

Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.

Carworth C100-A Functions:

Read DTC, Read Engine Model, Read Computer Edition Information, Read QR code, Read System parameter number, Read Data Stream, Clear DTC, Read-in QR Code, Component test, Cut off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on.

The global mainstream cars in various models to test the system, the system for some of the test results of various models to achieve the original detection. Built-in high-speed, low-speed CAN-BUS, a connector can be measured all the CAN-BUS vehicles. Fully supports all OBD-II protocols.

Supported protocols

ISO14230 (KWP2000)

ISO9141

SAE J1850 (PWM)

SAE J1850 (VPW)

J1939 (CAN)

IS014229 (UDS CAN)

BENZ-9BIT

Flash Code Protocol

SAE J1708

Carworth C100-A Technical Parameters:

Host Parameters

1 CPU dual-core architecture CORTEX M3 + ARM9 400M clocked

2 built-in Built-in high-capacity 8G TF card

3 Power supply 9-36(VDC)

4 Port OBD16

5 System Memory 64M SDRAM

6 Monitor 2.8-inch TFT LCD true color touch

7 Resolution 320 × 240,24-bit

8 weight 0.3kg

9 Dimensions 13.2×8.6×2.0cm

10 Storage Temperature -30~45鈩?/div>

11 Operating Temperature -10~45鈩?/div>

12 Humidity < 90

Package including:

1pc x C100-A Main unit

1pc x OBD2 Cable for Heavy duty

1pc x USB Cable

5pcs x Connect Cable

1pc x Carry Bag
